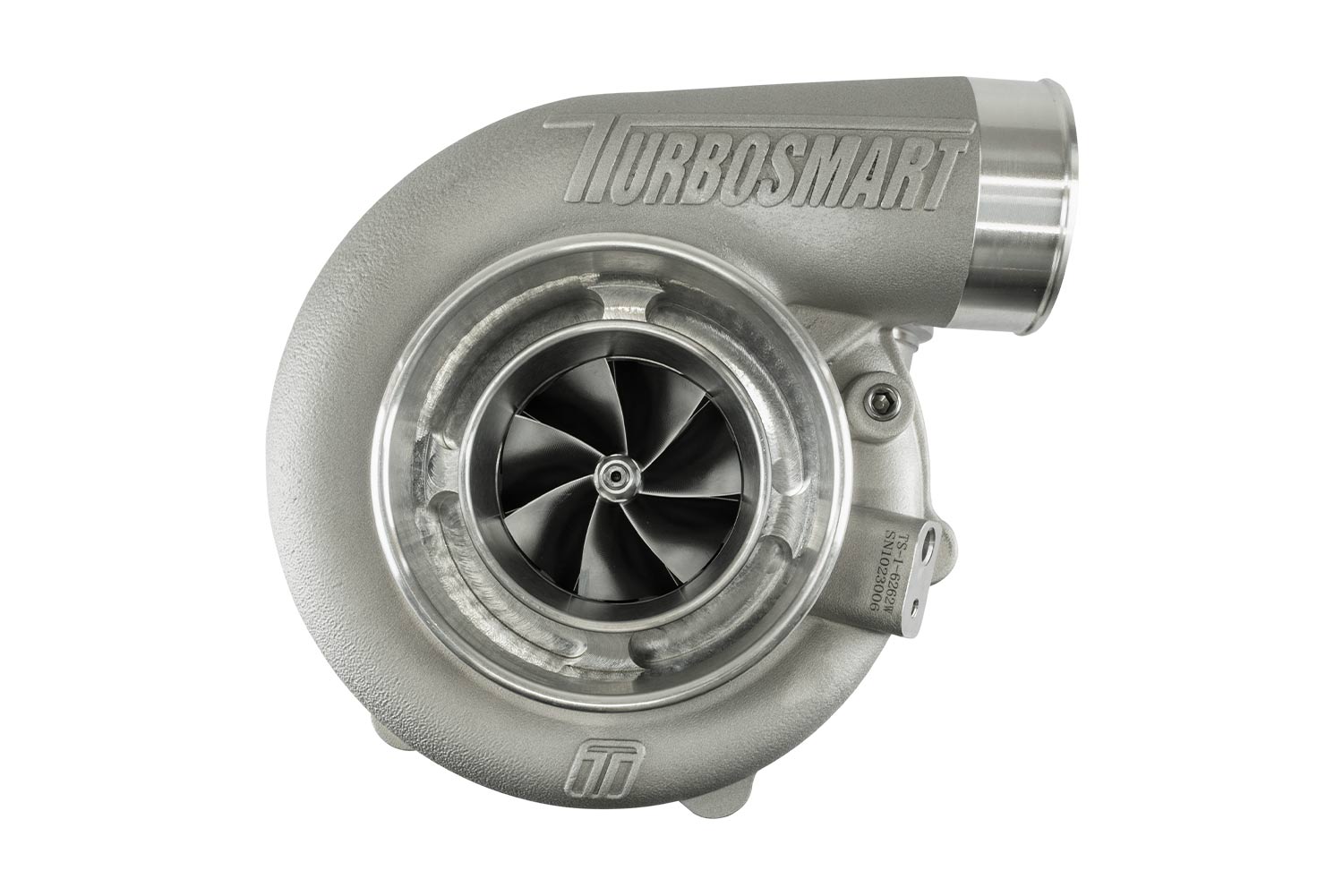

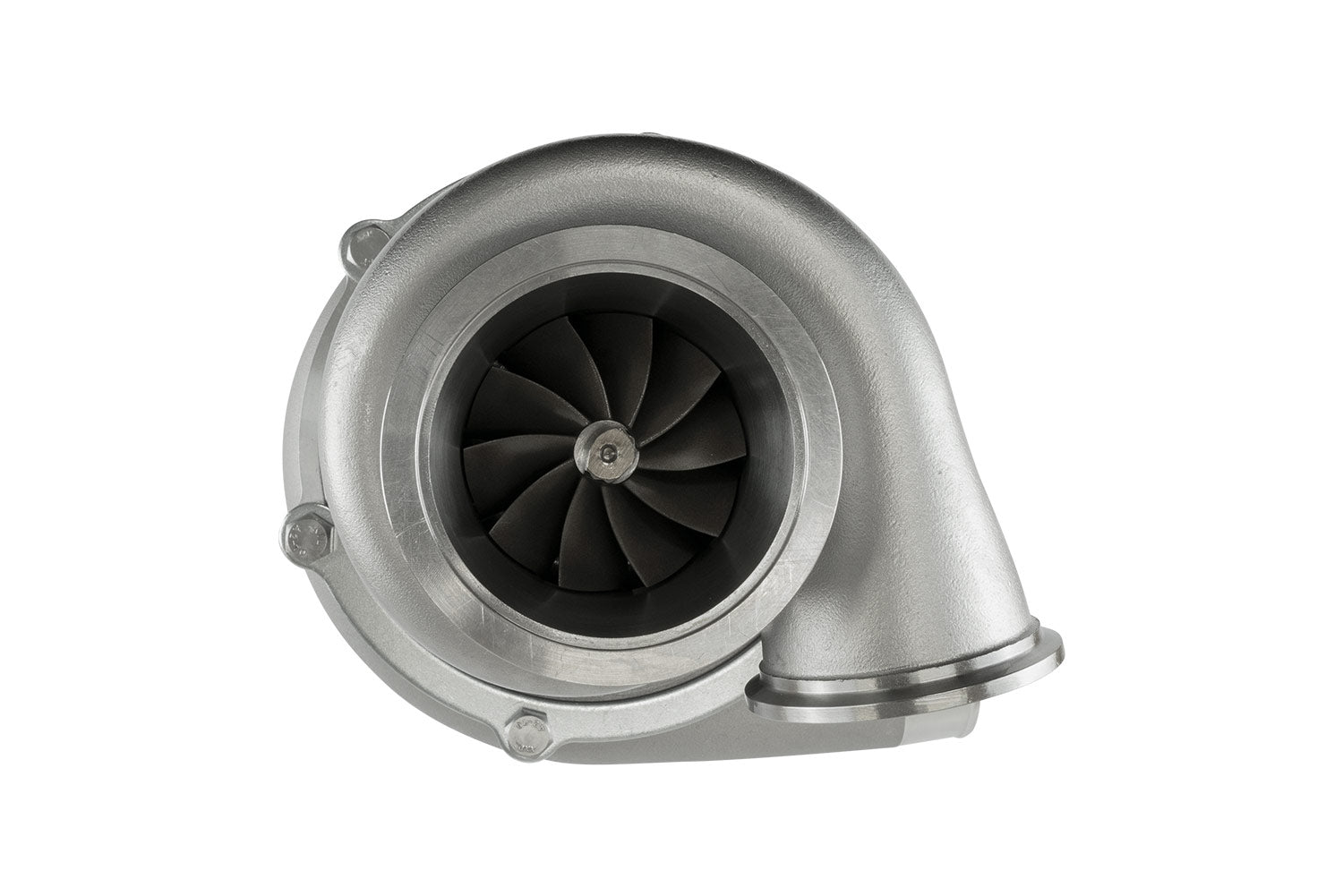

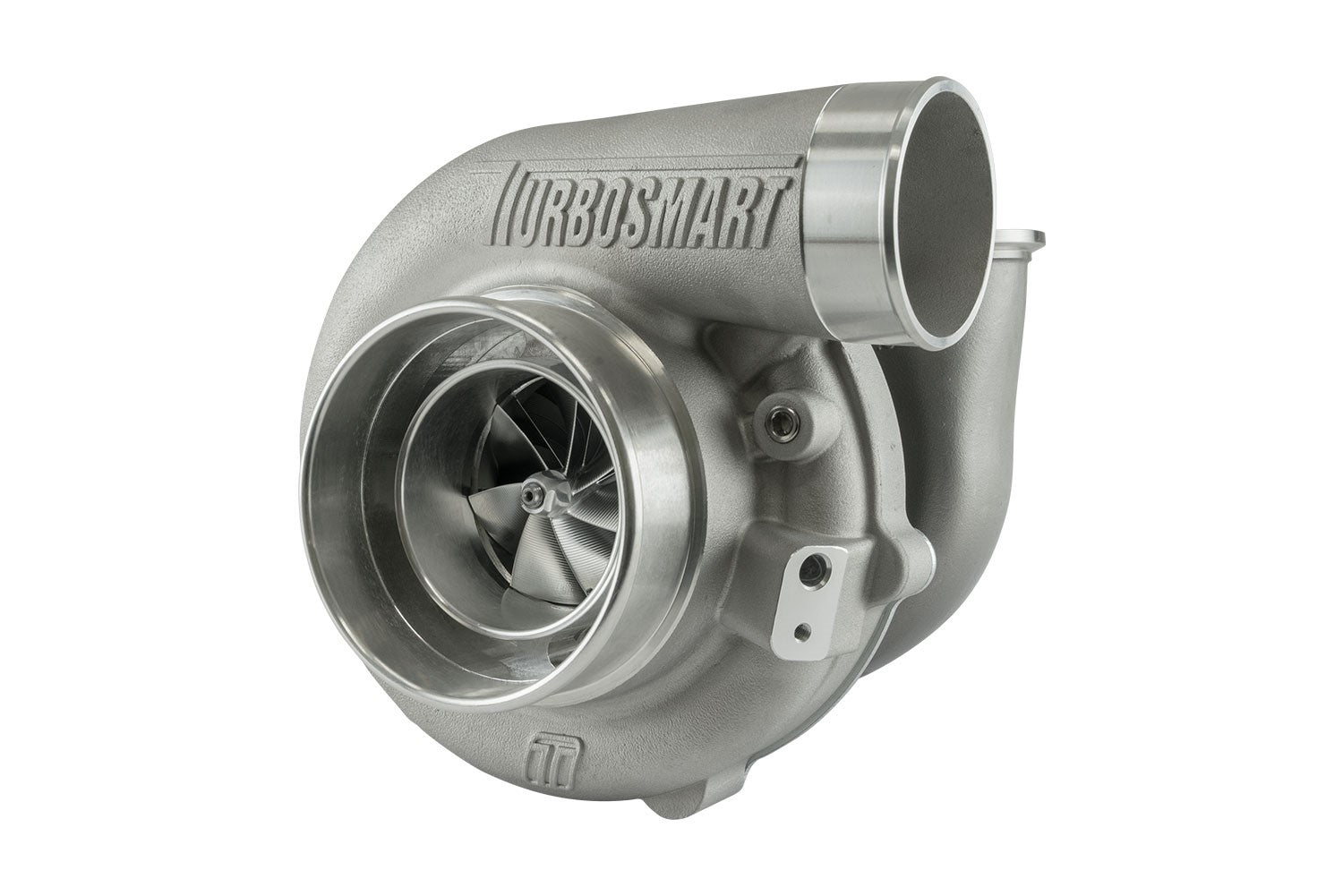

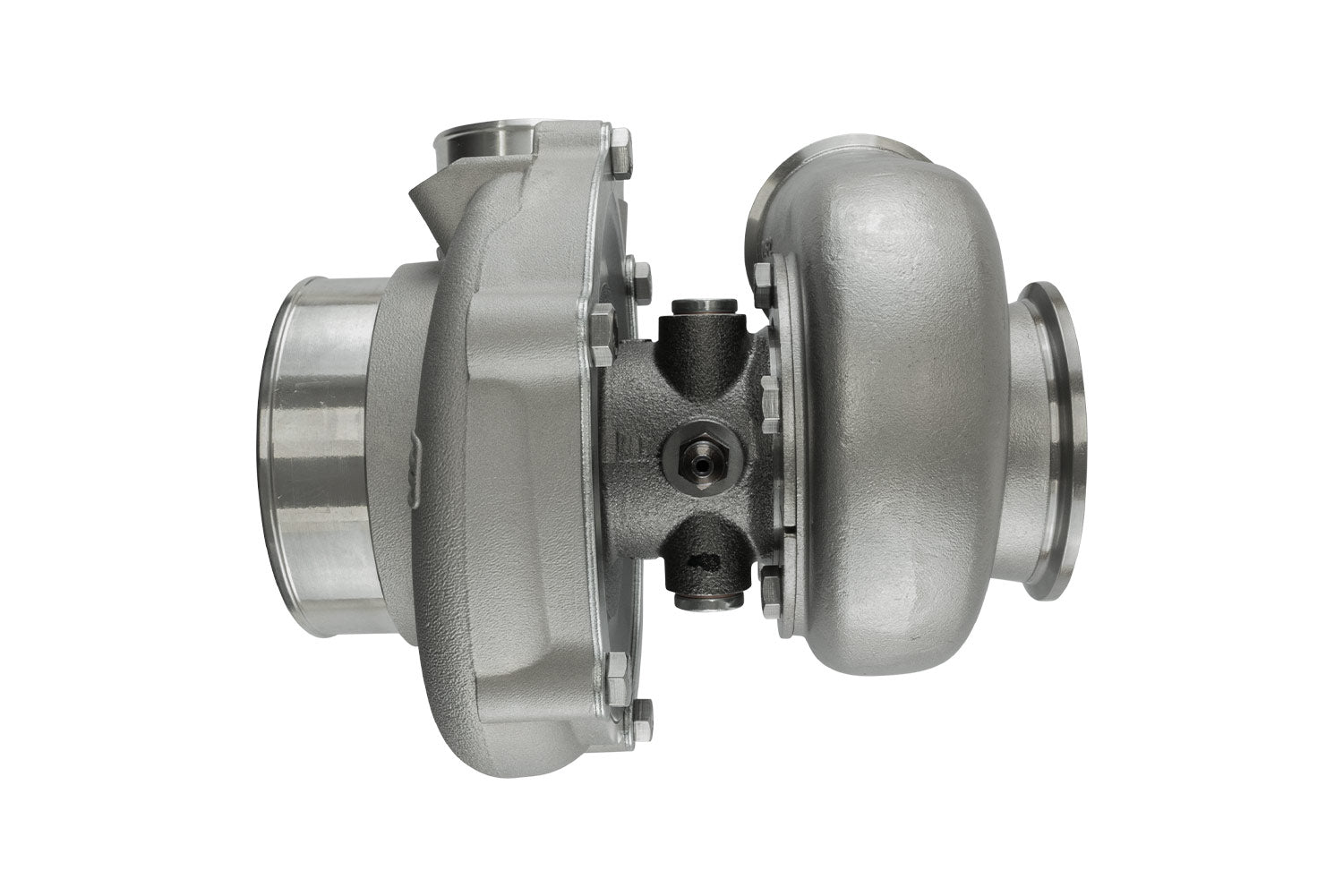

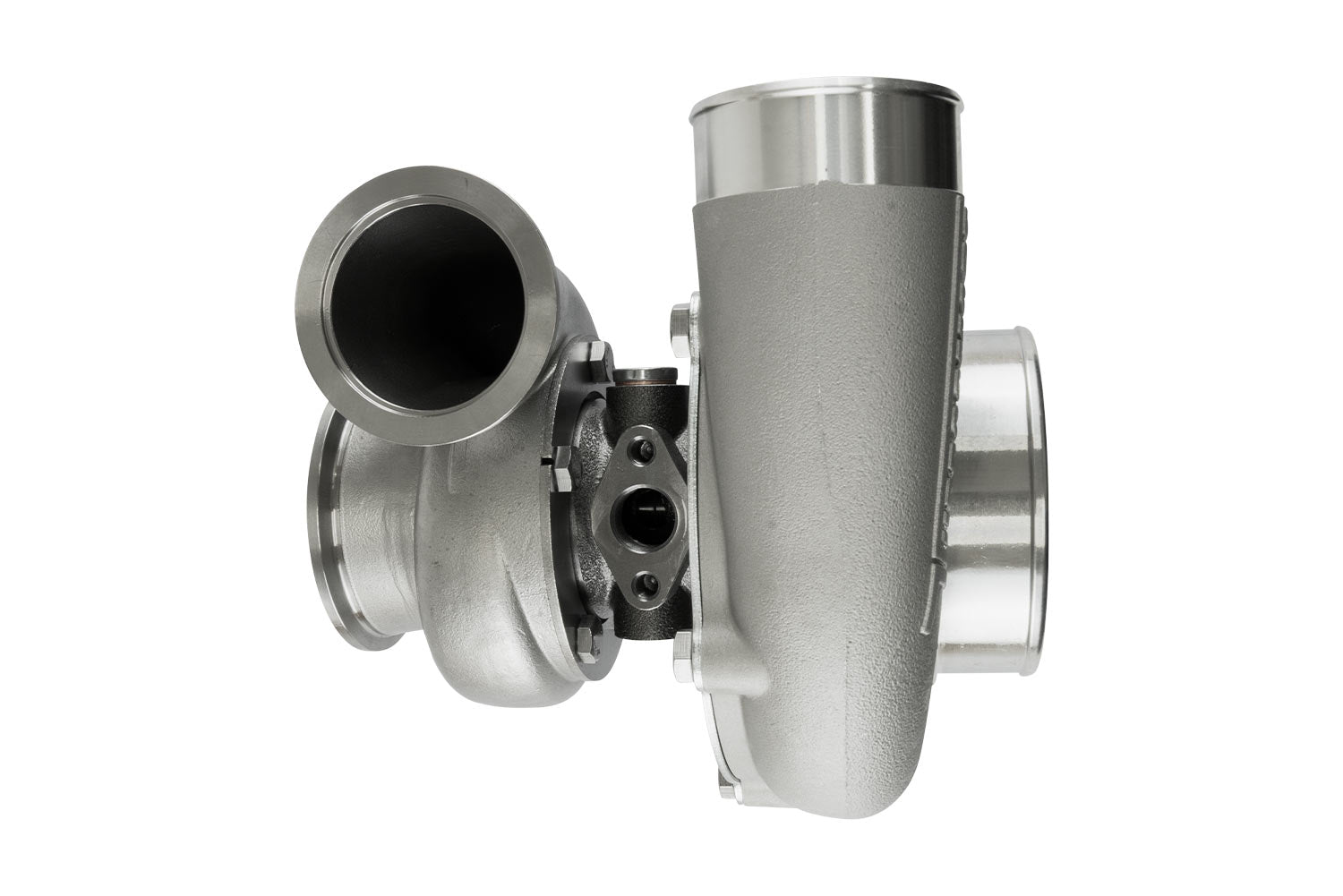

TS-1-5862VB082E TS-1 Turbocharger

Experience excellence with the TS-1-5862VB082E TS-1 Turbocharger 5862 V-Band 0.82AR Externally Wastegated. This cutting-edge turbocharger is the pinnacle of modern turbocharger technology, meticulously designed to meet the exacting demands of both motorsport professionals and performance enthusiasts.

The TS-1 series sets new standards with its oil-cooled turbochargers featuring lightweight stainless steel investment cast turbine housings. A proprietary bearing and main shaft combination delivers unprecedented transient response, epitomizing the performance, quality, reliability, and support that Turbosmart is known for.

The unique bearing and shaft assembly's ultra-low rotating mass pairs seamlessly with aggressive compressor aerodynamics, ensuring exceptional performance at lower shaft speeds. This is complemented by a distinctive T14 Inconel turbine wheel, maintaining power even under high loads and flow conditions.

The TS-1 Turbocharger Series adopts a holistic "whole of engine" approach to maximize performance, focusing on reducing back pressure and incorporating high-performance turbines. Not only is it smaller, lighter, and faster than alternatives, but it also redefines what's possible in terms of response.

Available Options

• TS-1 oil-cooled turbochargers
• TS-2 oil and water-cooled turbochargers
• V-Band, various T3 Flange, and T4 Flange options
• Reverse rotation (Selected Sizes)
• Various AR options
• Internal and external wastegated options available

Key Features

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminum compressor covers
• CFD-driven designed housings for optimal AR and flow
• T14 Inconel turbine wheel for extreme EGTs
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing

Specifications

• Compressor Inlet: 4" / 101.6mm
• Compressor Inducer: 58mm
• Turbine Inlet: V-Band (2.25")
• Turbine Exducer: 62mm
• Turbine AR: 0.82
• Turbine Outlet: V-Band (3.00")
• Weight: 6.06kg / 13.3lbs

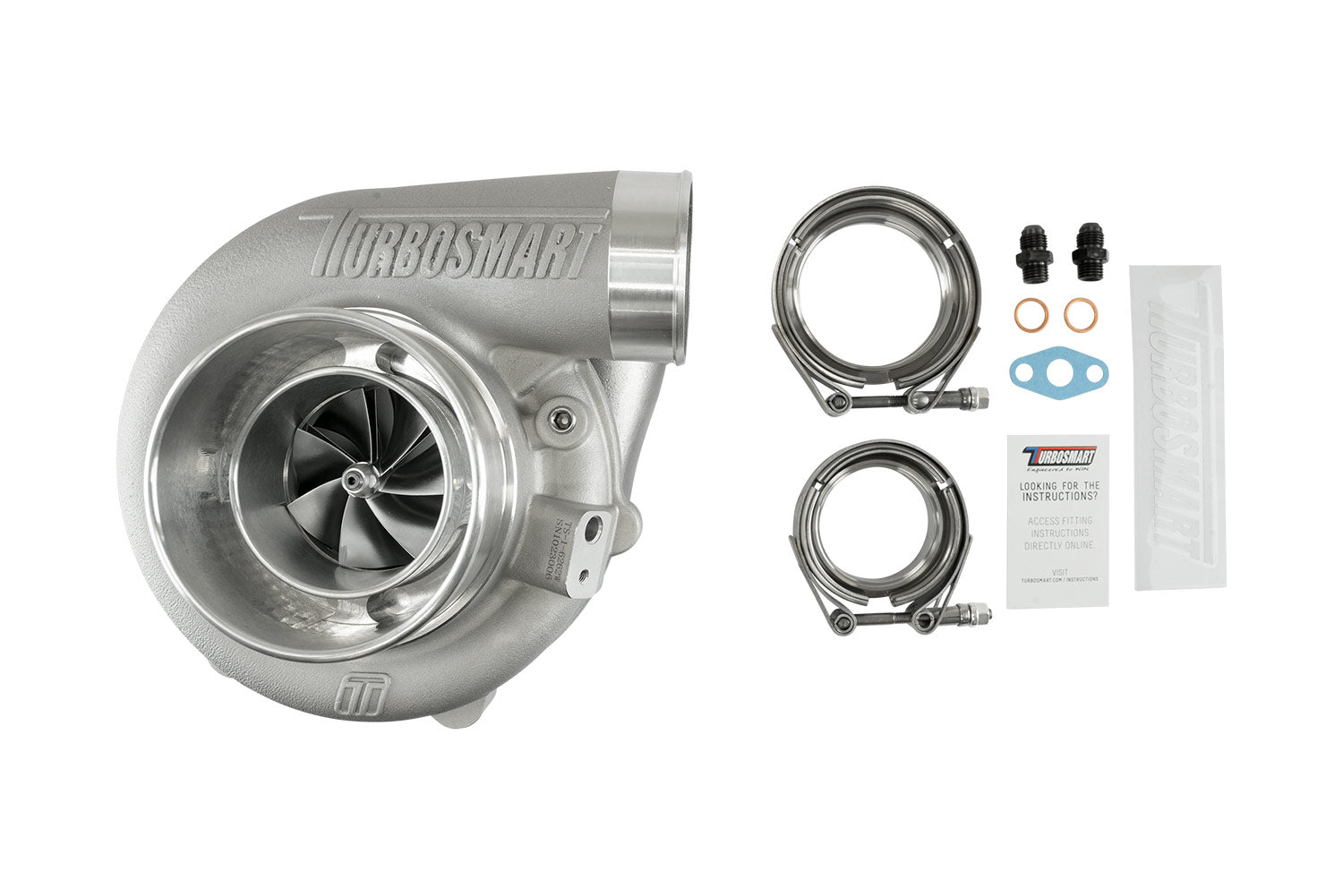

What's Included

• 1 x Turbosmart Performance Turbocharger
• 2 x Weld Flanges (Turbine inlet and outlet)
• 2 x V-Band Clamps (Turbine inlet and outlet)
• 1 x Oil drain gasket
