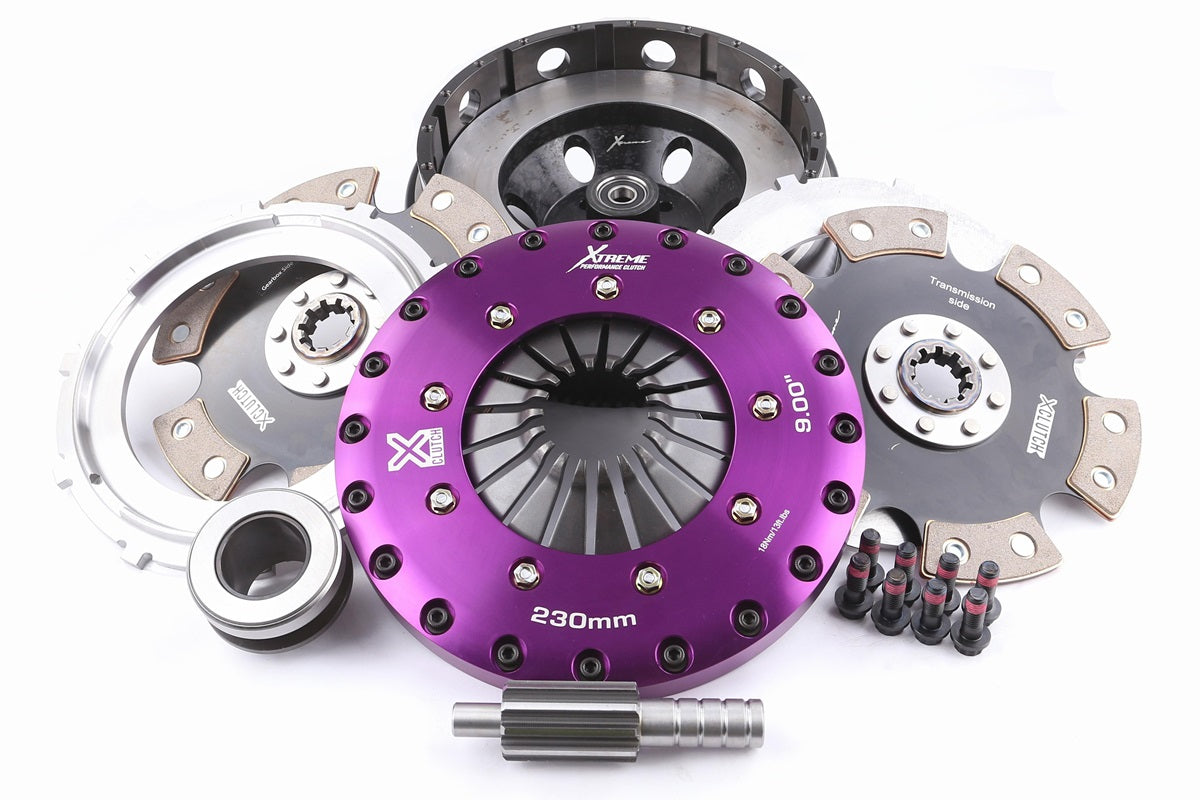

Xtreme Clutch Conversion kit - TOYOTA JZ - BMW 10x35mm

Toyota JZ - BMW 10x35mm spline.

• Rolled Diaphragm
• Crank to fingers 113.8mm
• BMW conversion release bearing, pilot bearing and alignment tool included
• Suits 12mm gearbox adapter plate.

This kit has been designed and engineered to offer increased heat and torque capacity and is recommended for high performance Motorsport applications.

• Lightweight alloy pressure plate
• 2x rigid ceramic friction discs
• 4140 chromoly flywheel
• Release bearing, flywheel/pressure plate bolts & alignment tool included
• 1830 Nm peak torque capacity
• Recommended for Motorsport applications

• Clutch Disc Diameter (mm)
  230
• Clutch Disc Spline Count
  10
• Clutch Disc Spline Diameter (mm)
  35
• Torque (Nm)
  1830
• Flywheel Step
  +3.8mm
• Design
  Twin Plate
• Stage
  Multiplate - track use only
• Tech Bulletins
  TSB-166
• Clamp Load


• Recommended for
  Motorsport
• Ring Gear Tooth count


• Additional infotmation


• Weight [KG]:
  19.47
