Extreme Clutch

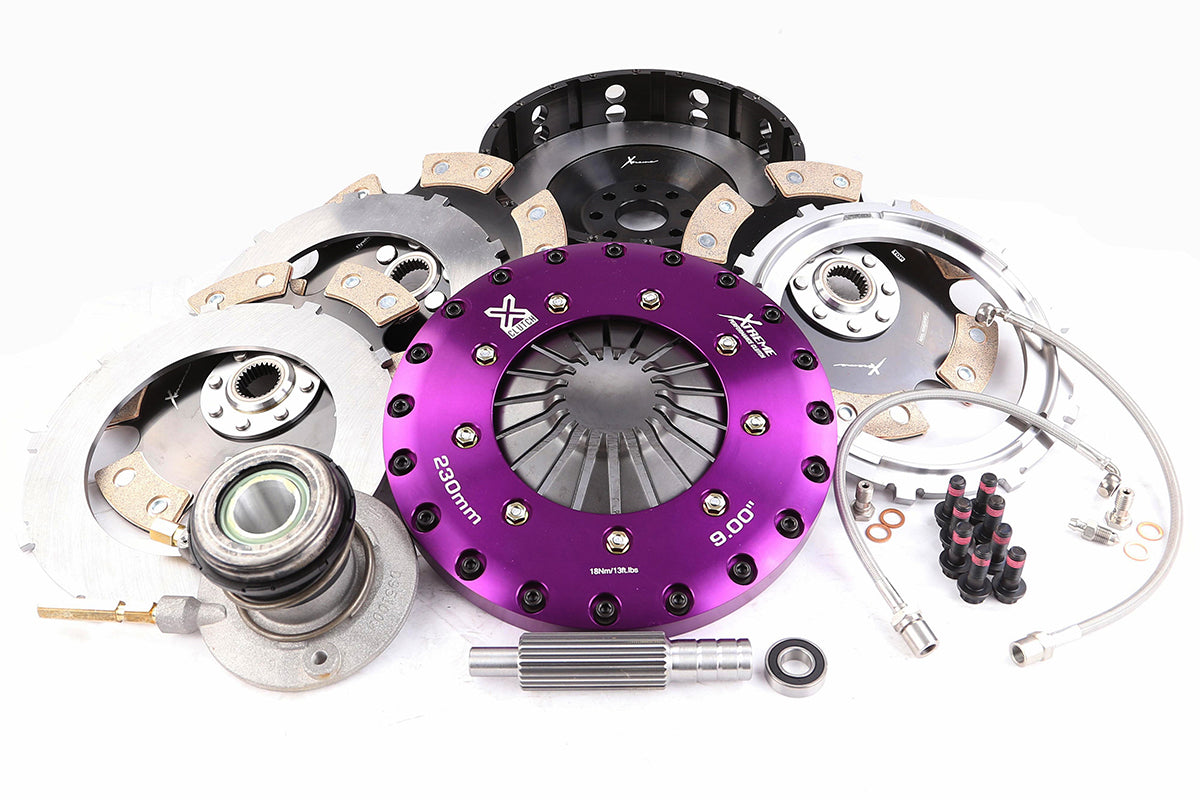

Xtreme Motorsport - 230mm Rigid Ceramic Triple Plate Clutch Kit QUAIFE 26x28.6mm KTY23692-3E

Xtreme Motorsport - 230mm Rigid Ceramic Triple Plate Clutch Kit QUAIFE 26x28.6mm KTY23692-3E

KTY23692-3E

19.557,00 DKK
19.557,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.

-2E

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Product Features:

  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Se komplette oplysninger
