Extreme Clutch

SKU:KHN18522-2E

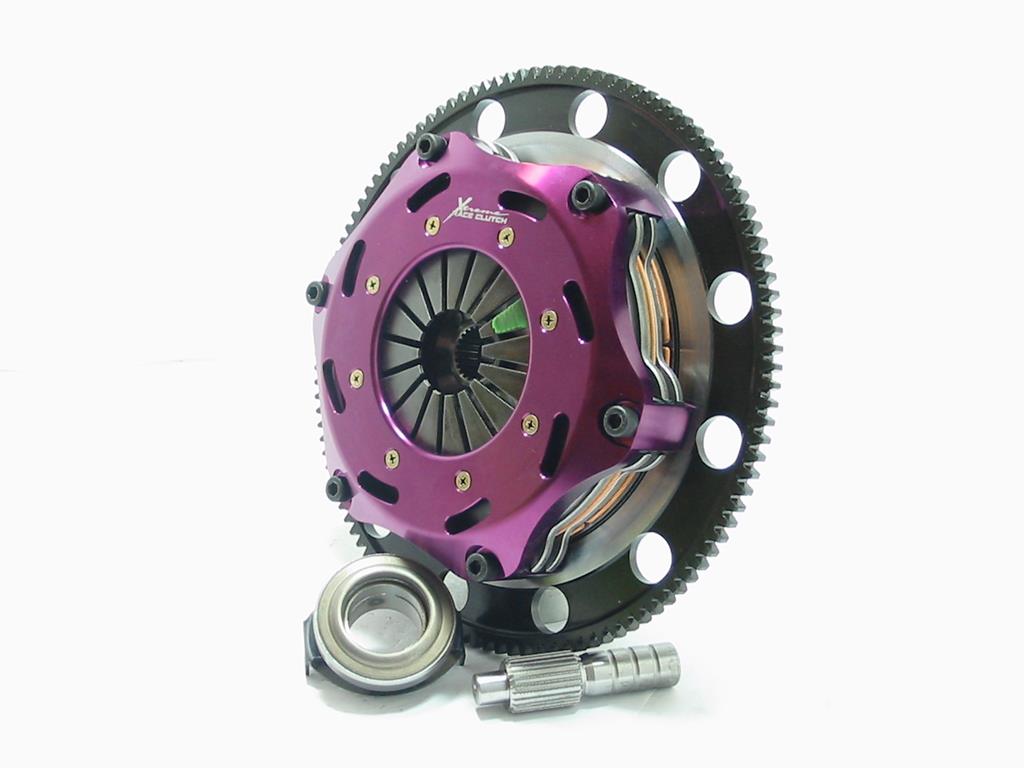

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L	Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP	Pressure Plate Casting	185-10B-PPC	Intermediate Plate	185-10B-IP	Pressure Plate Bolt	BOLT-8X1.125X50	Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")

Applications: - HONDA/CIVIC V/1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - HONDA/CIVIC V/1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - HONDA/CIVIC VI/1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) , \n - HONDA/CIVIC VI/1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) , \n - HONDA/CIVIC VI/1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) , \n - HONDA/CIVIC VI/1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) , \n - HONDA/CR-V I/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) , \n - HONDA/CR-V I/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) , \n - HONDA/CR-V I/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) , \n - HONDA/INTEGRA/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) , \n - HONDA/INTEGRA/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) , \n - HONDA/INTEGRA/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) , \n - HONDA/INTEGRA/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) , \n - HONDA/INTEGRA/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) ,
