Extreme Clutch

SKU:KHN18523-2E

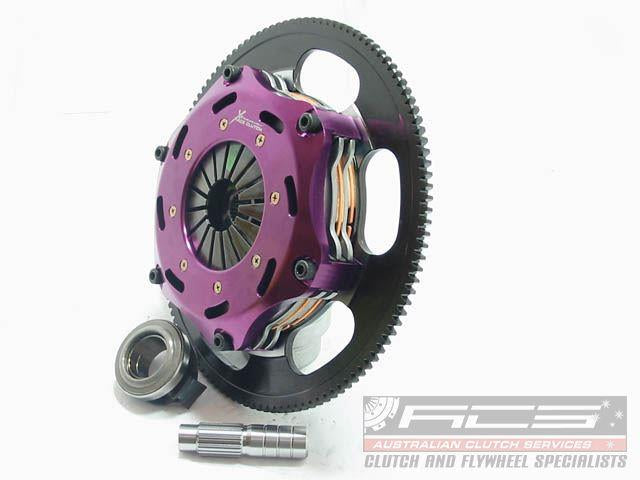

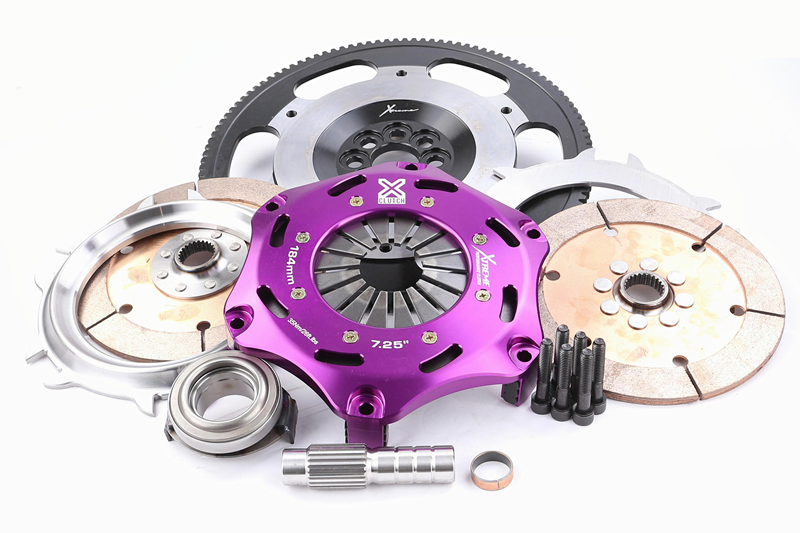

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L	Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP	Pressure Plate Casting	185-10B-PPC	Intermediate Plate	185-10B-IP	Pressure Plate Bolt	BOLT-8X1.125X50	Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")

Applications: - HONDA/CIVIC VII/2.0 Type-R (EP3)/2001.09-2005.09/K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09) , \n - HONDA/CIVIC VIII/2.0 i-VTEC Type R (FD2)/2007.08-2010.09/K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09) , \n - HONDA/CIVIC VIII/2.0 i-VTEC Type R (FN2)/2010.03-2010.12/K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12) , \n - HONDA/CIVIC VIII/Type R (FN2)/2006.09-/K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 -) , \n - HONDA/INTEGRA/2.0 (DC5)/2004.10-/K20A2 1998 Petrol 147 kW 200 BHP (2004.10 -) , \n - HONDA/INTEGRA/2.0 16V Type-R (DC5)/2002.02-/K20Z1 1998 Petrol 162 kW 220 BHP (2002.02 -) , \n - HONDA/INTEGRA/2.0 Type-S/2004.10-2007.04/K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04) ,
