Extreme Clutch

SKU:KHN18524-2E

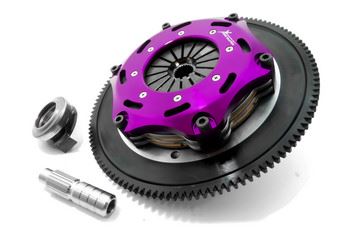

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L	Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP	Pressure Plate Casting	185-10B-PPC	Intermediate Plate	185-10B-IP	Pressure Plate Bolt	BOLT-8X1.125X50	Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")

Applications: - HONDA/PRELUDE IV/2.2 S (BA8)/1991.12-1996.11/F22A1 2156 Petrol 96 kW 131 BHP (1991.12 - 1996.11) , \n - HONDA/PRELUDE IV/2.2 VTi-R (BB1)/1994.02-1997.02/H22A1 2156 Petrol 142 kW 193 BHP (1994.02 - 1997.02) , \n - HONDA/PRELUDE IV/2.3 i 16V (BB2)/1992.02-1996.09/H23A2 2259 Petrol 118 kW 160 BHP (1992.02 - 1996.09) , \n - HONDA/PRELUDE V/2.2 16V (BB6. BB8)/1996.10-2000.10/H22A5, H22A4, H22A6, H22A8, H22Z1 2156 Petrol 147 kW 200 BHP (1996.10 - 2000.10) , \n - HONDA/PRELUDE V/2.2 Si (BB5)/1997.03-2001.04/F22Z6 2156 Petrol 118 kW 160 BHP (1997.03 - 2001.04) , \n - HONDA/PRELUDE V/2.2 VTi-R (BB6)/1997.03-1998.10/H22A4 2156 Petrol 142 kW 193 BHP (1997.03 - 1998.10) ,
