Extreme Clutch

SKU:KNI18523-2E

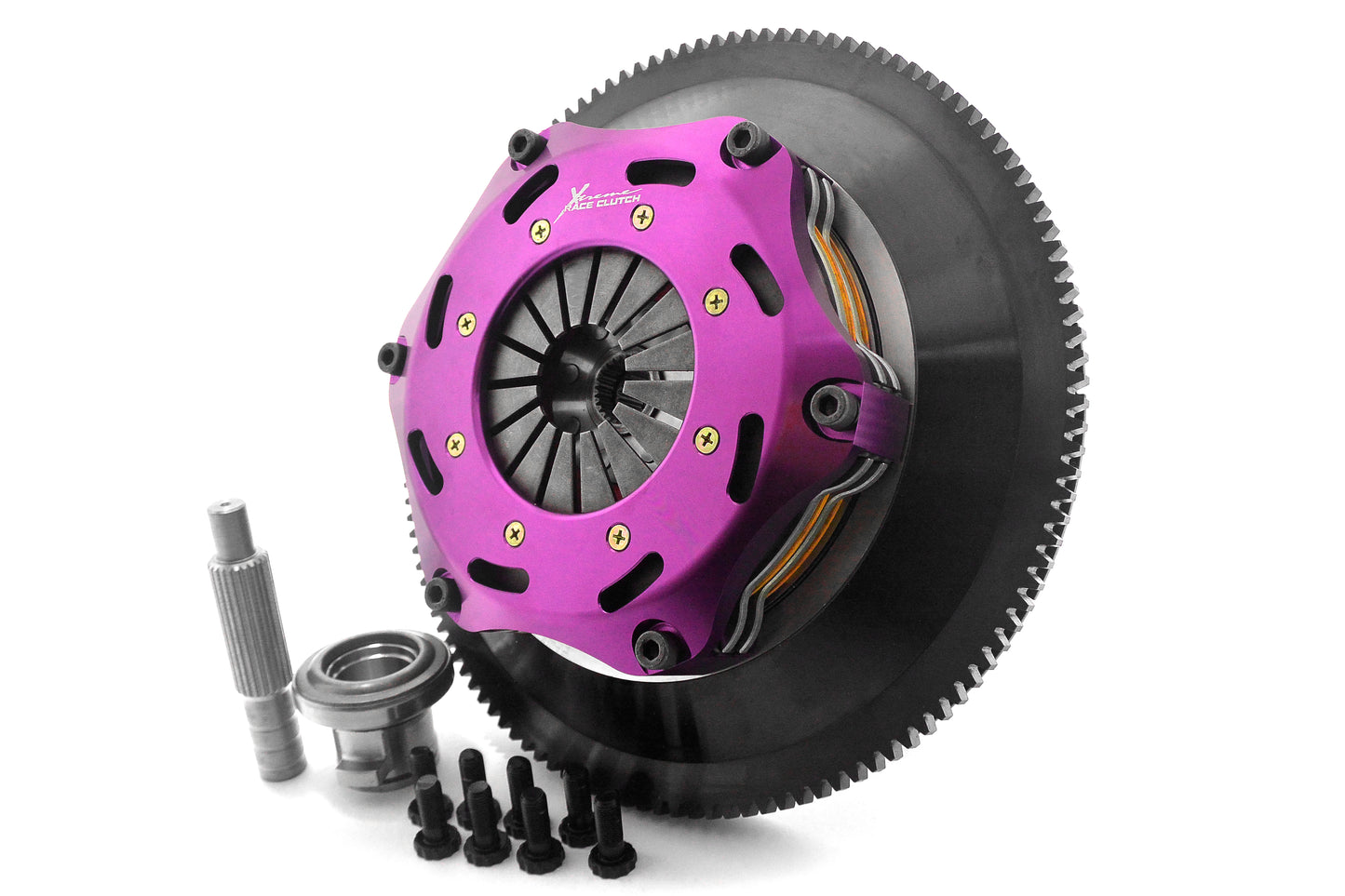

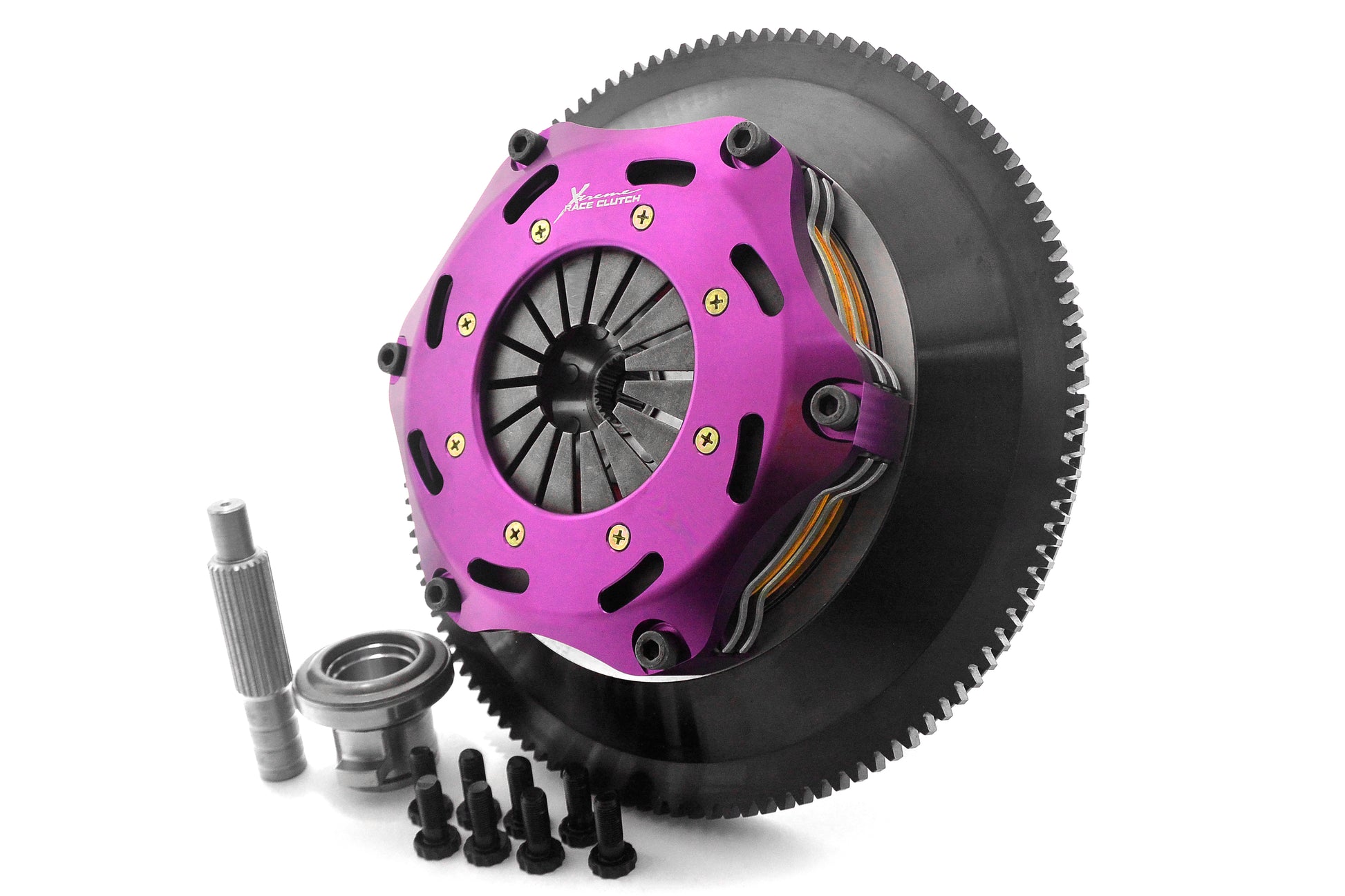

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L	Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP	Pressure Plate Casting	185-10B-PPC	Intermediate Plate	185-10B-IP	Pressure Plate Bolt	BOLT-8X1.125X50	Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")

Applications: - NISSAN/350Z coupe (Z33)/3.5/2002.09-2008.12/VQ35DE 3498 Petrol 221 kW 301 BHP (2002.09 - 2008.12) , \n - NISSAN/350Z coupe (Z33)/3.5/2003.10-2006.12/VQ35DE 3498 Petrol 206 kW 280 BHP (2003.10 - 2006.12) , \n - NISSAN/350Z Roadster (Z33)/3.5/2004.11-2007.01/VQ35DE 3498 Petrol 221 kW 301 BHP (2004.11 - 2007.01) , \n - NISSAN/350Z Roadster (Z33)/3.5/2005.03-2007.12/VQ35DE 3498 Petrol 206 kW 280 BHP (2005.03 - 2007.12) , \n - NISSAN/SKYLINE (V35)/3.5/2001.02-2007.12/VQ35DE 3498 Petrol 200 kW 272 BHP (2001.02 - 2007.12) , \n - NISSAN/SKYLINE coupe (V35)/3.5/2003.01-2006.11/VQ35DE 3498 Petrol 206 kW 280 BHP (2003.01 - 2006.11) , \n - NISSAN/SKYLINE coupe (V35)/3.5 4x4/2003.08-2007.08/VQ35DE 3498 Petrol 206 kW 280 BHP (2003.08 - 2007.08) ,
