Extreme Clutch

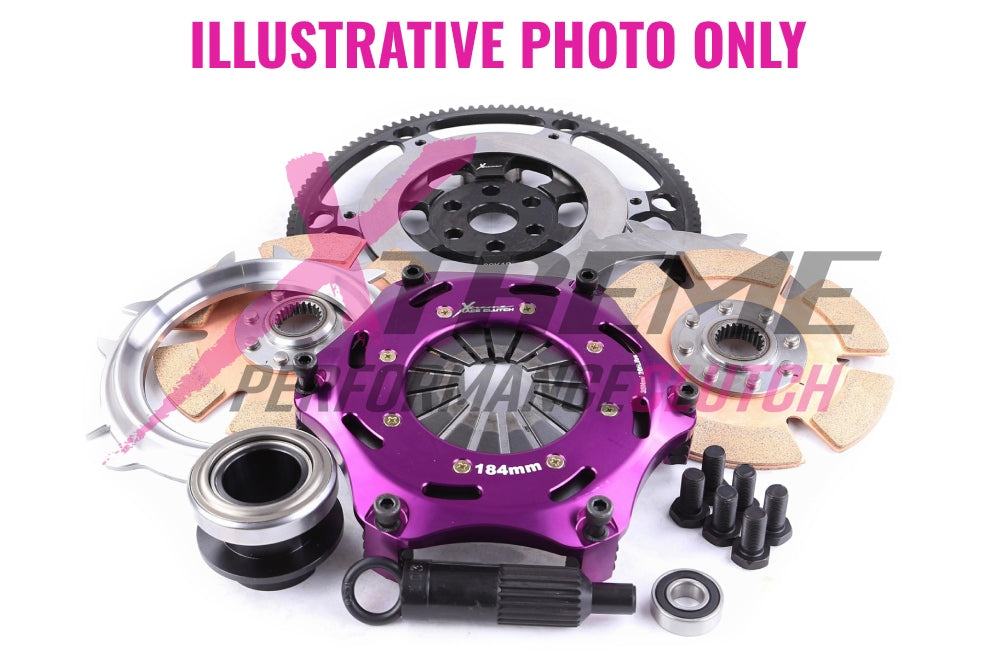

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm KNI18524-2E

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm KNI18524-2E

KNI18524-2E

12.855,00 DKK
12.855,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")

Applications: - NISSAN/100NX (B13)/2.0/1990.10-1994.10/SR20DE 1998 Petrol 110 kW 150 BHP (1990.10 - 1994.10) , \n - NISSAN/100NX (B13)/2.0 GTI/1991.03-1994.10/SR20DE 1998 Petrol 105 kW 143 BHP (1991.03 - 1994.10) , \n - NISSAN/ALMERA I Hatchback (N15)/2.0 GTi/1996.07-2000.03/SR20DE 1998 Petrol 105 kW 143 BHP (1996.07 - 2000.03) , \n - NISSAN/ALMERA TINO (V10)/2.0/2000.08-2003.01/SR20DE 1998 Petrol 100 kW 136 BHP (2000.08 - 2003.01) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.06-2001.12/SR20DE 1998 Petrol 105 kW 143 BHP (1996.06 - 2001.12) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.09-2001.12/SR20DE 1998 Petrol 110 kW 150 BHP (1996.09 - 2001.12) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.09-2001.12/SR20De 1998 Petrol 85 kW 115 BHP (1996.09 - 2001.12) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.09-2001.12/SR20DE 1998 Petrol 96 kW 131 BHP (1996.09 - 2001.12) , \n - NISSAN/PRIMERA Hatchback (P11)/2.0 16V/1996.09-2002.07/SR20DE 1998 Petrol 110 kW 150 BHP (1996.09 - 2002.07) , \n - NISSAN/PRIMERA Hatchback (P11)/2.0 16V/1996.09-2002.07/SR20De 1998 Petrol 85 kW 115 BHP (1996.09 - 2002.07) , \n - NISSAN/PRIMERA Hatchback (P11)/2.0 16V/1996.09-2002.07/SR20DE 1998 Petrol 96 kW 131 BHP (1996.09 - 2002.07) , \n - NISSAN/SUNNY III (N14)/2.0/1990.08-1996.12/SR20DE 1998 Petrol 104 kW 141 BHP (1990.08 - 1996.12) , \n - NISSAN/SUNNY III (N14)/2.0/1991.10-1993.05/SR20DE 1998 Petrol 105 kW 143 BHP (1991.10 - 1993.05) , \n - NISSAN/SUNNY III (N14)/2.0 GTI 16V/1990.10-1995.05/SR20DE 1998 Petrol 105 kW 143 BHP (1990.10 - 1995.05) , \n - NISSAN/SUNNY III (N14)/2.0 i 16V/1990.10-1995.05/SR20DE 1998 Petrol 105 kW 143 BHP (1990.10 - 1995.05) ,

Se komplette oplysninger
