Extreme Clutch

SKU:KSU18520-2E

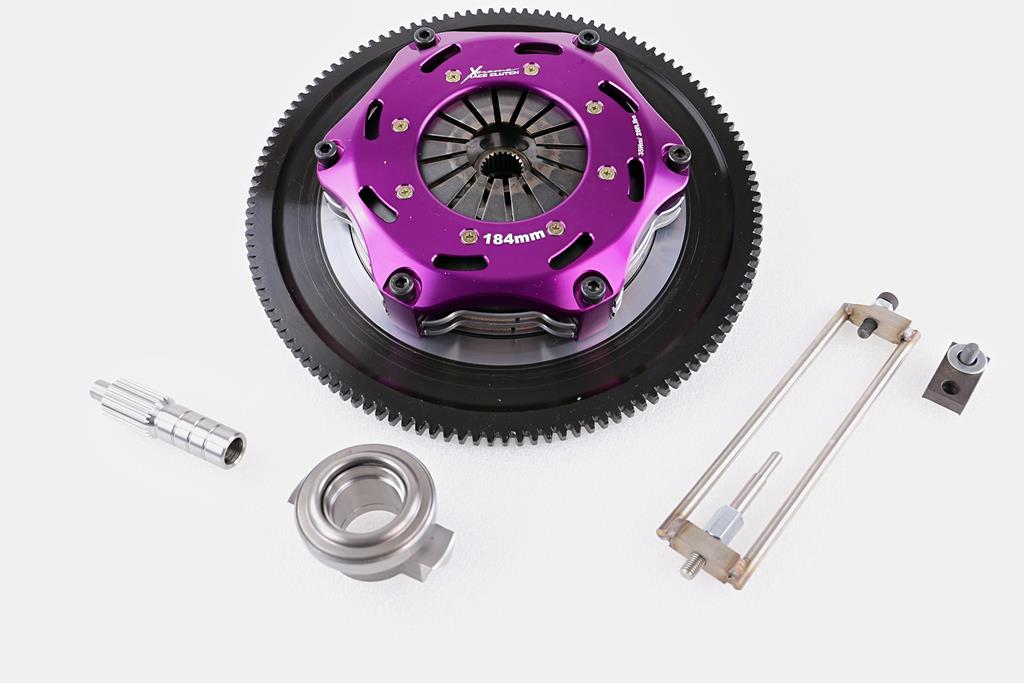

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L	Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP	Pressure Plate Casting	185-10B-PPC	Intermediate Plate	185-10B-IP	Pressure Plate Bolt	BOLT-8X1.125X50	Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")

Applications: - SUBARU/FORESTER/2.0 S Turbo AWD (SF5)/1998.06-2001.04/EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) , \n - SUBARU/FORESTER/2.0 S Turbo AWD (SF5)/2001.04-2002.09/EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) , \n - SUBARU/FORESTER/2.0 S Turbo AWD (SG5)/2002.02-2005.05/EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) , \n - SUBARU/FORESTER/2.5 AWD (SG9)/2003.12-2005.05/EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) , \n - SUBARU/FORESTER/2.5 Prodrive Performance Pack AWD/2005.05-2005.09/EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) , \n - SUBARU/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) , \n - SUBARU/Impreza/2.0 i Turbo AWD (GF8)/1994.03-2000.12/EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) , \n - SUBARU/Impreza/2.0 Turbo AWD (GC8)/1996.12-2000.12/EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) , \n - SUBARU/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , \n - SUBARU/Impreza/2.0 Turbo GT AWD (GC8)/1994.03-2000.12/EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) , \n - SUBARU/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , \n - SUBARU/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , \n - SUBARU/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) , \n - SUBARU/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) , \n - SUBARU/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) , \n - SUBARU/Impreza/2.0 WRX Turbo AWD (GDA) 5 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , \n - SUBARU/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) , \n - SUBARU/LEGACY I/2000 Turbo 4WD (BC5)/1992.05-1994.07/EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) , \n - SUBARU/LEGACY I Wagon/2000 Turbo Super 4WD (BF5)/1992.05-1994.07/EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) , \n - SUBARU/LEGACY III/2.0 AWD (BE5)/2002.02-2003.06/EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) , \n - SUBARU/LEGACY III/2.0 AWD (BE5)/2002.06-2003.08/EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) ,
