Extreme Clutch

SKU:KTY18523-2E

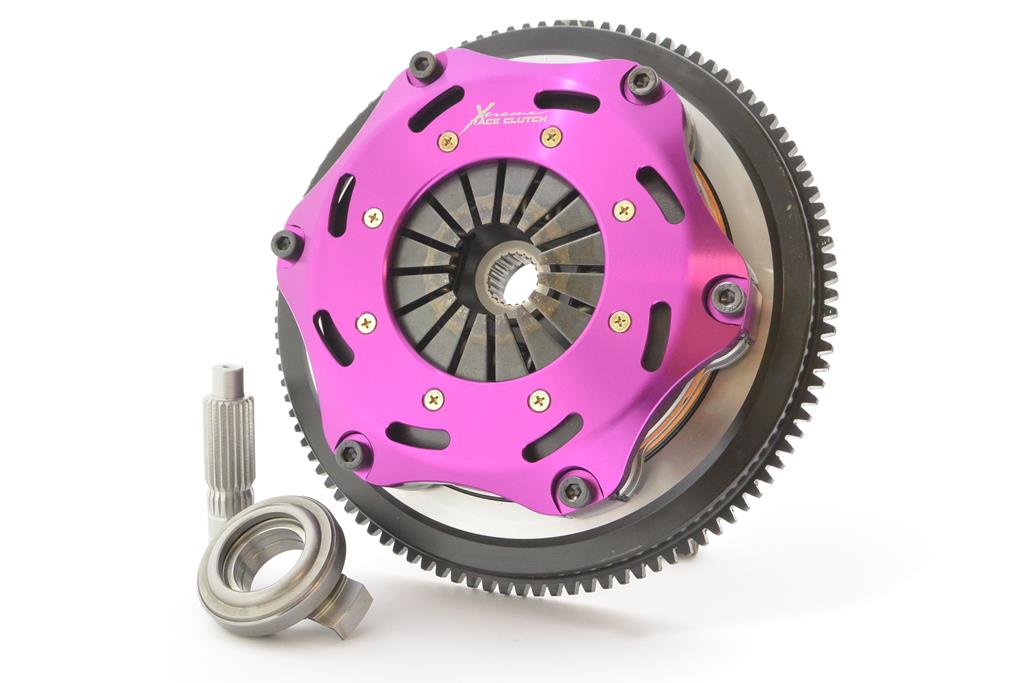

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L	Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP	Pressure Plate Casting	185-10B-PPC	Intermediate Plate	185-10B-IP	Pressure Plate Bolt	BOLT-8X1.125X50	Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")

Applications: - TOYOTA/CARINA IV sedan/1.6 (AT151_)/1983.10-1987.11/4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11) , \n - TOYOTA/COROLLA/1.6 (AE82)/1983.06-1987.08/4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08) , \n - TOYOTA/COROLLA Liftback/1.3 i (EE90)/1987.08-1992.04/2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04) , \n - TOYOTA/COROLLA Liftback/1.6 (AE82)/1983.06-1987.08/4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08) , \n - TOYOTA/COROLLA Liftback/1.6 (AE82)/1985.08-1987.08/4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 - 1987.08) , \n - TOYOTA/COROLLA Station Wagon/1.3 (EE90)/1989.06-1992.06/2E 1296 Petrol 55 kW 75 BHP (1989.06 - 1992.06) , \n - TOYOTA/MR2 I/1.6 (AW11)/1984.11-1989.12/4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12) , \n - TOYOTA/MR2 I/1.6 16V (AW11)/1984.06-1989.11/4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11) , \n - TOYOTA/MR2 I/1.6 16V (AW11)/1984.11-1990.06/4A-GEL 1587 Petrol 91 kW 124 BHP (1984.11 - 1990.06) , \n - TOYOTA/MR2 I/1.6 16V (AW11)/1984.11-1990.06/4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06) , \n - TOYOTA/STARLET/1.5 D (NP70L)/1986.12-1989.12/1N 1453 Diesel 40 kW 54 BHP (1986.12 - 1989.12) ,
