Extreme Clutch

SKU:KBM20531-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

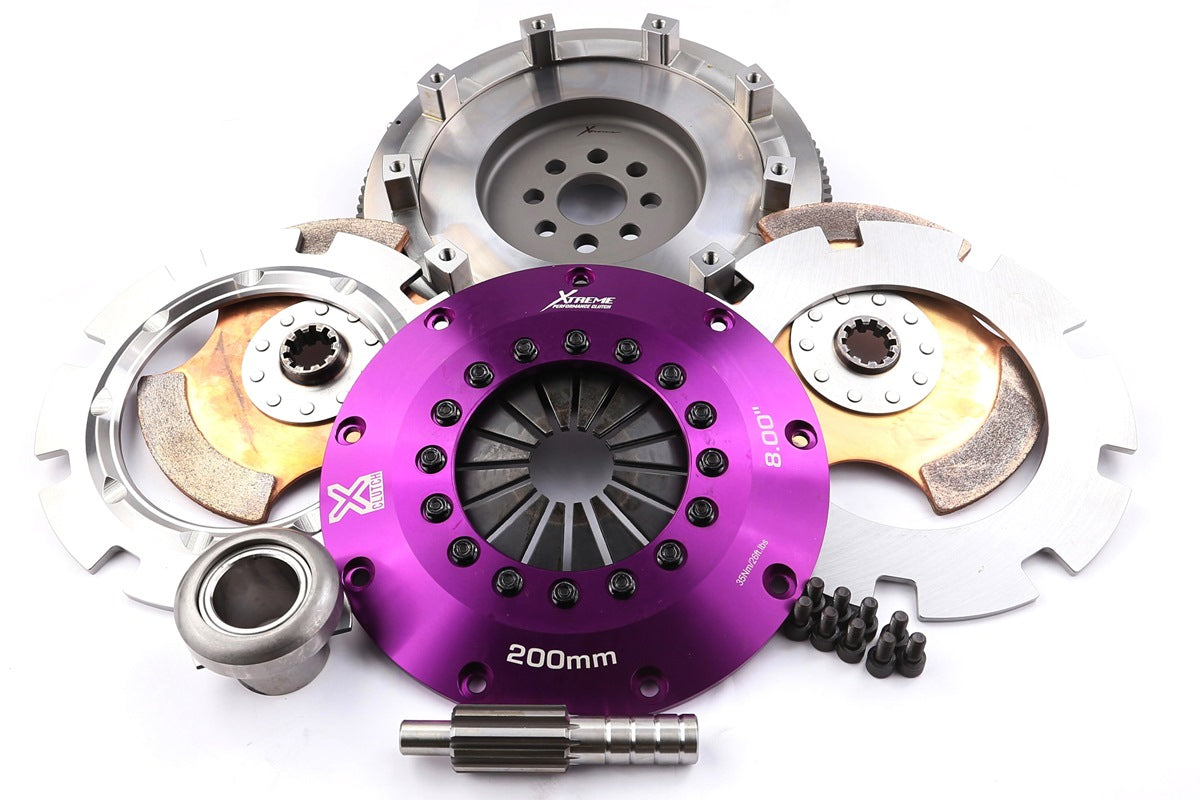

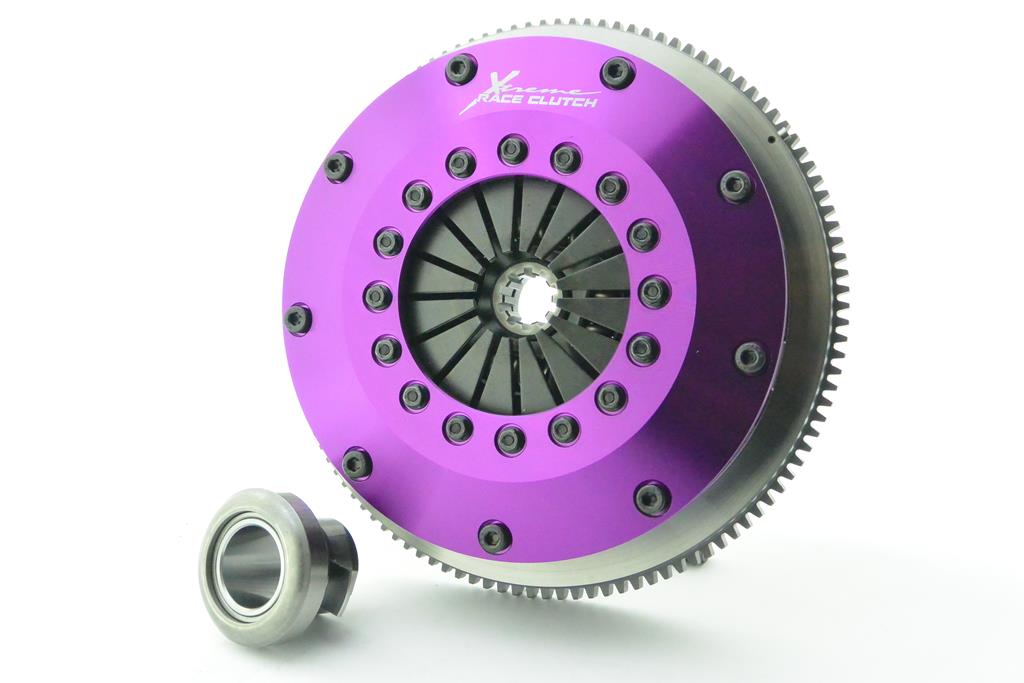

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - BMW/3-Series/323 i E30/1982-1983/2316cc | 102KW | 139HP | M20 B23 (236EB) (1982-1983) , \n - BMW/3-Series/323 i E30/1983-1986/2316cc | 110KW | 150HP | M20 B23 (236EC);M20 B23 (236EW) (1983-1986) , \n - BMW/3-Series/M3 2.3 E30/1988-1991/2302cc | 143KW | 195HP | S14 B23 (234EA) (1988-1991) , \n - BMW/3-Series/M3 2.3 E30/1986-1991/2302cc | 143KW | 195HP | S14 B23 (234EA);S14 B23 (234S1);S14 B23 (234S2) (1986-1991) , \n - BMW/3-Series/M3 2.3 E30/1987-1989/2302cc | 147KW | 200HP | S14 B23 (234EA);S14 B23 (234S2) (1987-1989) , \n - BMW/3-Series/M3 2.3 E30/1986-1990/2302cc | 158KW | 215HP | S14 B23 (234EA);S14 B23 (234S2) (1986-1990) , \n - BMW/3-Series/M3 EVO I 2.3 E30/1988-1990/2302cc | 162KW | 220HP | S14 B23 (234EA) (1988-1990) , \n - BMW/3-Series/M3 EVO II 2.5 E30/1990-1992/2467cc | 175KW | 238HP | S14 B25 (254S1) (1990-1992) ,
