Extreme Clutch

SKU:KFD20523-2E

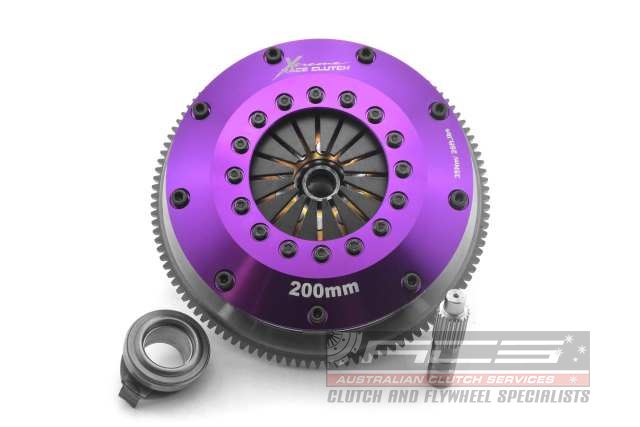

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

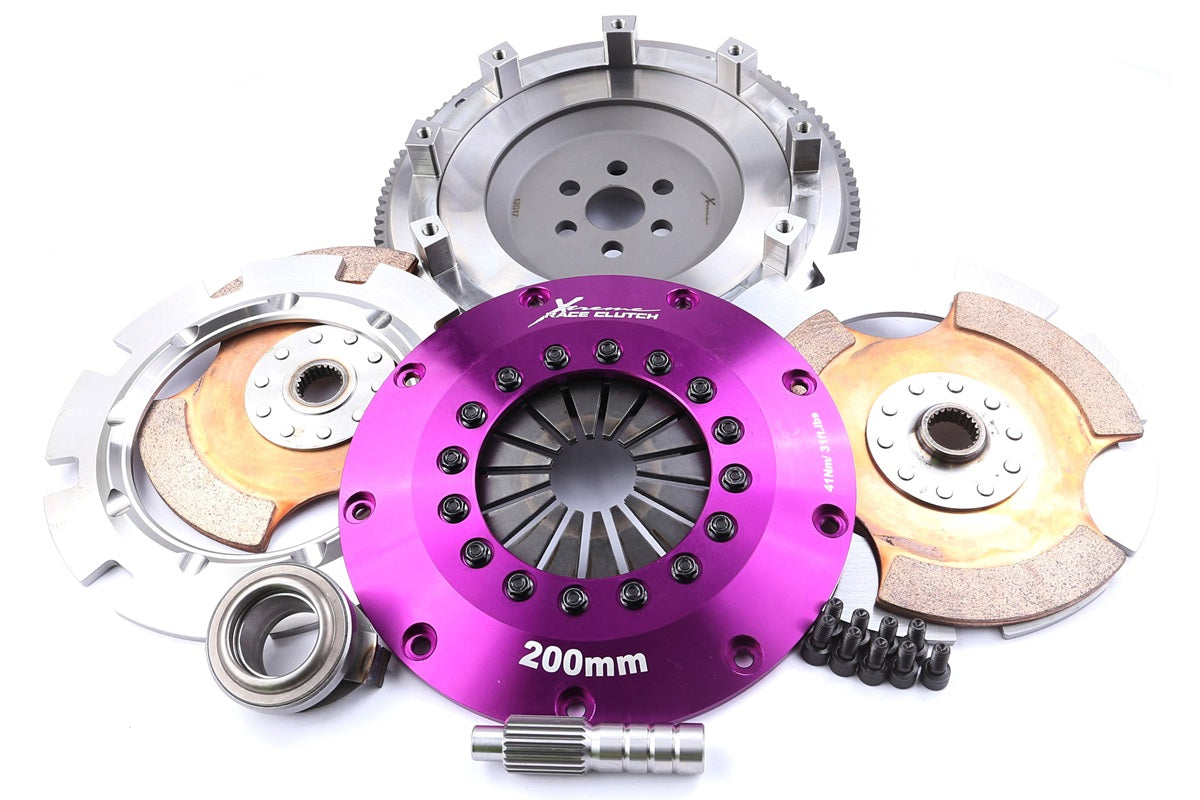

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - MAZDA/323 C IV (BG)/1.8 16V 4WD (BG8S)/1989.08-1994.05/BP Turbo 1840 Petrol 132 kW 179 BHP (1989.08 - 1994.05) , \n - MAZDA/323 C IV (BG)/1.8 16V Turbo 4WD (BG8S)/1990.09-1992.12/BP Turbo 1840 Petrol 120 kW 163 BHP (1990.09 - 1992.12) , \n - MAZDA/323 C IV (BG)/1.8 16V Turbo 4WD (BG8S)/1993.01-1994.07/BP Turbo 1840 Petrol 136 kW 185 BHP (1993.01 - 1994.07) , \n - MAZDA/323 C IV (BG)/1.8 GT-R 4WD (BG8S)/1992.01-1994.05/BP Turbo 1840 Petrol 154 kW 209 BHP (1992.01 - 1994.05) ,
