Extreme Clutch

SKU:KNI20522-2E

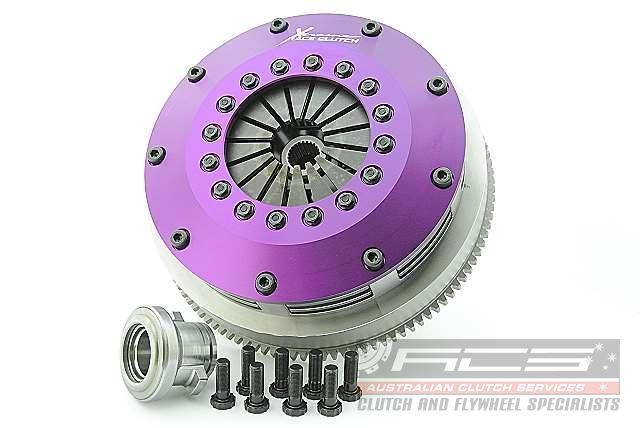

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - NISSAN/SILVIA (S15)/2000/1999.09-2002.08/SR20DE 1998 Petrol 118 kW 160 BHP (1999.09 - 2002.08) , \n - NISSAN/SILVIA (S15)/2000/1999.09-2002.08/SR20DE 1998 Petrol 121 kW 165 BHP (1999.09 - 2002.08) , \n - NISSAN/SILVIA (S15)/2000 Turbo/2000.11-2003.12/SR20DET 1998 Petrol 184 kW 250 BHP (2000.11 - 2003.12) , \n - NISSAN/SILVIA (S15)/Turbo 16V/2000.11-2003.12/SR20DET 1998 Petrol 147 kW 200 BHP (2000.11 - 2003.12) ,
