Extreme Clutch

SKU:KNI20523-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

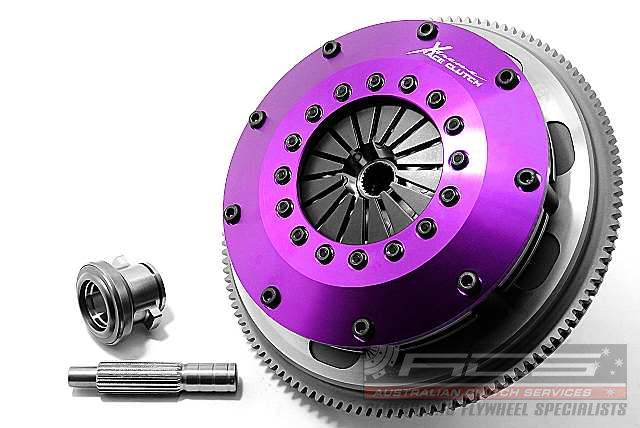

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - NISSAN/350Z coupe (Z33)/3.5/2002.09-2008.12/VQ35DE 3498 Petrol 221 kW 301 BHP (2002.09 - 2008.12) , \n - NISSAN/350Z coupe (Z33)/3.5/2003.10-2006.12/VQ35DE 3498 Petrol 206 kW 280 BHP (2003.10 - 2006.12) , \n - NISSAN/350Z Roadster (Z33)/3.5/2004.11-2007.01/VQ35DE 3498 Petrol 221 kW 301 BHP (2004.11 - 2007.01) , \n - NISSAN/350Z Roadster (Z33)/3.5/2005.03-2007.12/VQ35DE 3498 Petrol 206 kW 280 BHP (2005.03 - 2007.12) , \n - NISSAN/SKYLINE (V35)/3.5/2001.02-2007.12/VQ35DE 3498 Petrol 200 kW 272 BHP (2001.02 - 2007.12) , \n - NISSAN/SKYLINE coupe (V35)/3.5/2003.01-2006.11/VQ35DE 3498 Petrol 206 kW 280 BHP (2003.01 - 2006.11) , \n - NISSAN/SKYLINE coupe (V35)/3.5 4x4/2003.08-2007.08/VQ35DE 3498 Petrol 206 kW 280 BHP (2003.08 - 2007.08) ,
