Extreme Clutch

SKU:KNI20524-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

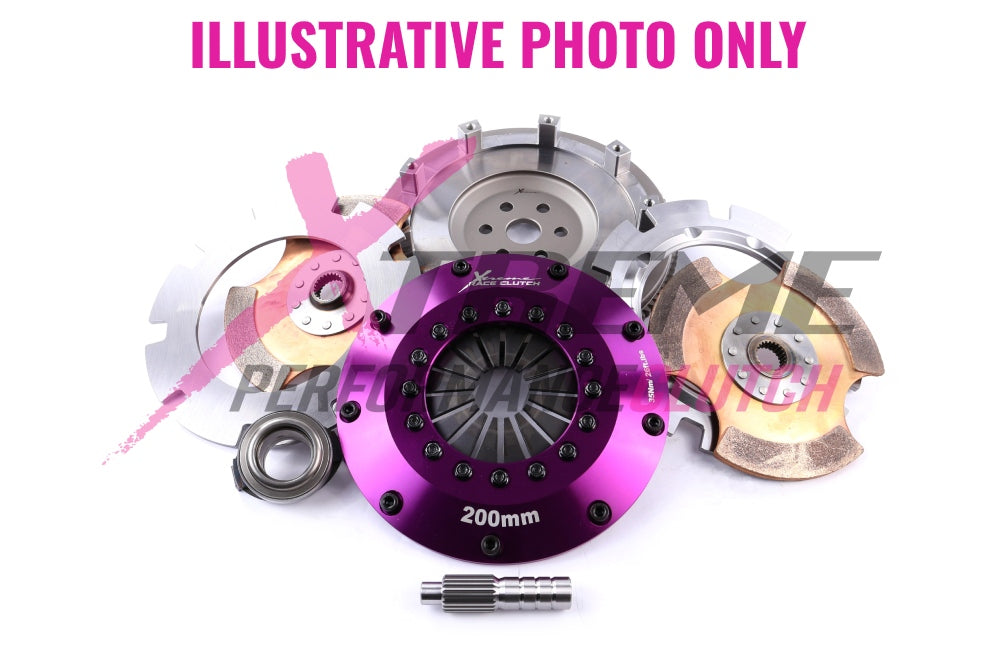

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - NISSAN/100NX (B13)/2.0/1990.10-1994.10/SR20DE 1998 Petrol 110 kW 150 BHP (1990.10 - 1994.10) , \n - NISSAN/100NX (B13)/2.0 GTI/1991.03-1994.10/SR20DE 1998 Petrol 105 kW 143 BHP (1991.03 - 1994.10) , \n - NISSAN/ALMERA I Hatchback (N15)/2.0 GTi/1996.07-2000.03/SR20DE 1998 Petrol 105 kW 143 BHP (1996.07 - 2000.03) , \n - NISSAN/ALMERA TINO (V10)/2.0/2000.08-2003.01/SR20DE 1998 Petrol 100 kW 136 BHP (2000.08 - 2003.01) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.06-2001.12/SR20DE 1998 Petrol 105 kW 143 BHP (1996.06 - 2001.12) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.09-2001.12/SR20DE 1998 Petrol 110 kW 150 BHP (1996.09 - 2001.12) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.09-2001.12/SR20De 1998 Petrol 85 kW 115 BHP (1996.09 - 2001.12) , \n - NISSAN/PRIMERA (P11)/2.0 16V/1996.09-2001.12/SR20DE 1998 Petrol 96 kW 131 BHP (1996.09 - 2001.12) , \n - NISSAN/PRIMERA Hatchback (P11)/2.0 16V/1996.09-2002.07/SR20DE 1998 Petrol 110 kW 150 BHP (1996.09 - 2002.07) , \n - NISSAN/PRIMERA Hatchback (P11)/2.0 16V/1996.09-2002.07/SR20De 1998 Petrol 85 kW 115 BHP (1996.09 - 2002.07) , \n - NISSAN/PRIMERA Hatchback (P11)/2.0 16V/1996.09-2002.07/SR20DE 1998 Petrol 96 kW 131 BHP (1996.09 - 2002.07) , \n - NISSAN/SUNNY III (N14)/2.0/1990.08-1996.12/SR20DE 1998 Petrol 104 kW 141 BHP (1990.08 - 1996.12) , \n - NISSAN/SUNNY III (N14)/2.0/1991.10-1993.05/SR20DE 1998 Petrol 105 kW 143 BHP (1991.10 - 1993.05) , \n - NISSAN/SUNNY III (N14)/2.0 GTI 16V/1990.10-1995.05/SR20DE 1998 Petrol 105 kW 143 BHP (1990.10 - 1995.05) , \n - NISSAN/SUNNY III (N14)/2.0 i 16V/1990.10-1995.05/SR20DE 1998 Petrol 105 kW 143 BHP (1990.10 - 1995.05) ,
