Extreme Clutch

SKU:KTY20520-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

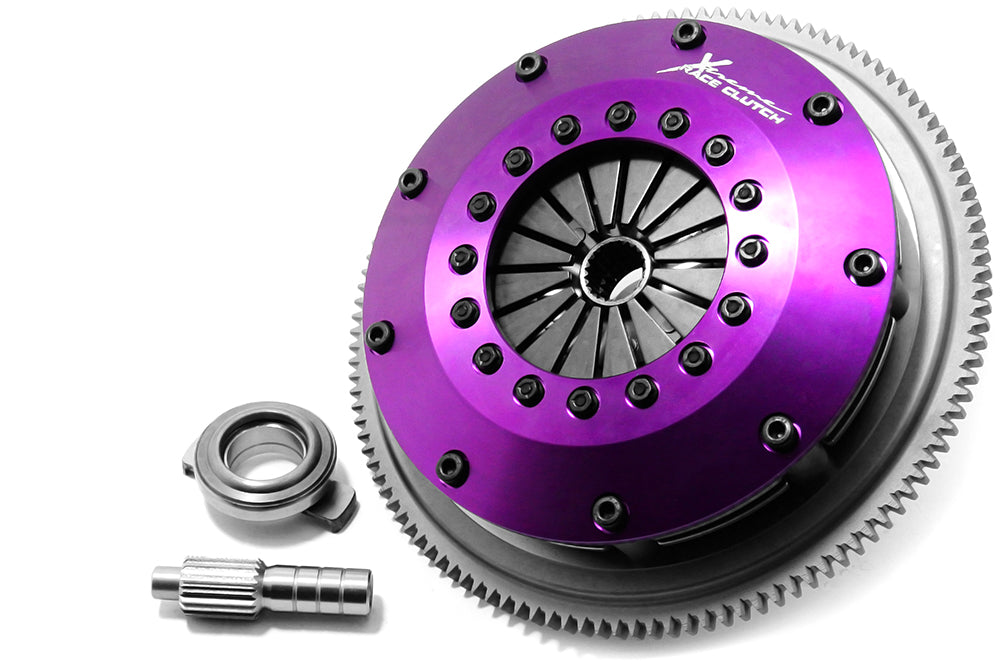

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Passer til følgende biler

Kontrollér model, motor og årgang før bestilling:

• TOYOTA/CALDINA Wagon/2.0 4WD (ST215W_)/2000.02-2001.09/3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09)
• TOYOTA/CELICA coupe/2.0 4WD (ST185)/1989.10-1993.09/3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09)
• TOYOTA/CELICA coupe/2.0 4WD (ST185)/1989.10-1993.11/3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11)
• TOYOTA/CELICA coupe/2.0 4WD (ST185)/1989.10-1994.01/3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01)
• TOYOTA/CELICA coupe/2.0 i Turbo 4WD (ST205)/1994.02-1999.11/3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11)
• TOYOTA/MR2 II/2.0 (SW20)/1989.12-1999.07/3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07)
• TOYOTA/MR2 II/2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07)
• TOYOTA/MR2 II/2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07)
