Extreme Clutch

SKU:KTY20530-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

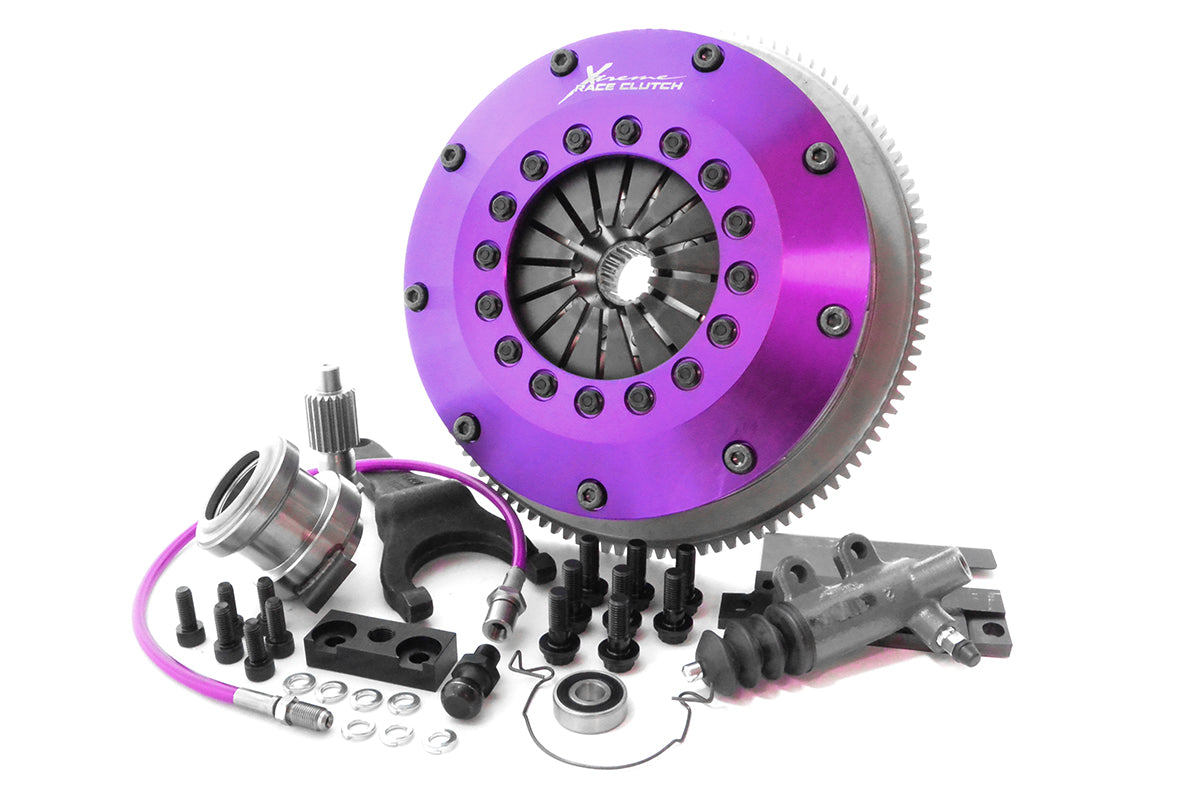

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - TOYOTA/CHASER/2.5 (JZX100_)/1996.10-2001.05/1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05) , \n - TOYOTA/CHASER/2.5 (JZX100_)/1996.10-2001.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05) , \n - TOYOTA/CHASER/2.5 (JZX90. JZX93)/1992.10-1996.08/1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08) , \n - TOYOTA/CHASER/2.5 Turbo (JZX90)/1992.10-1996.08/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08) , \n - TOYOTA/MARK II VI sedan/2.5 (JZX110)/1992.10-1996.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09) , \n - TOYOTA/MARK II VIII sedan/2.5 VVTi (JZX100)/1996.10-2001.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09) , \n - TOYOTA/SOARER coupe/2.5 Turbo (JZZ30)/1990.09-2000.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09) , \n - TOYOTA/SUPRA/2.5 i Bi-Turbo (JZA70)/1990.08-1993.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05) ,
