Extreme Clutch

SKU:KMI20682-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

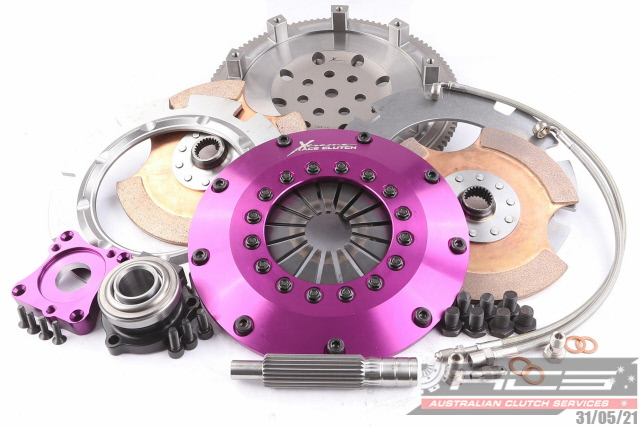

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - MITSUBISHI/LANCER/EVO IV (CN9A)/1996.08-1997.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 - 1997.12) , \n - MITSUBISHI/LANCER/EVO V - RS450 Ralliart (CP9A)/1998.01-1998.06/4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 - 1998.06) , \n - MITSUBISHI/LANCER/EVO V (CP9A. CT9A)/1998.01-1998.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12) , \n - MITSUBISHI/LANCER/EVO IX - FQ-300 (CT9A)/2005.06-2006.12/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12) , \n - MITSUBISHI/LANCER/EVO IX - FQ-340 (CT9A)/2005.06-2007.12/4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12) , \n - MITSUBISHI/LANCER/EVO IX - FQ-360 (CT9A)/2006.07-2007.12/4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12) , \n - MITSUBISHI/LANCER/EVO IX (CT9A)/2005.01-2007.09/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09) , \n - MITSUBISHI/LANCER/EVO IX (CT9A)/2005.08-2006.09/4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09) , \n - MITSUBISHI/LANCER/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) , \n - MITSUBISHI/LANCER/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) , \n - MITSUBISHI/LANCER/EVO VIII - 260 (CT9A)/2004.03-2005.07/4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07) , \n - MITSUBISHI/LANCER/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04) , \n - MITSUBISHI/LANCER/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04) , \n - MITSUBISHI/LANCER/EVO VIII - FQ-320 (CT9A)/2004.04-2006.08/4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08) , \n - MITSUBISHI/LANCER/EVO VIII - FQ-330 (CT9A)/2003.10-2006.08/4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08) , \n - MITSUBISHI/LANCER/EVO VIII - FQ-340 (CT9A)/2004.04-2005.03/4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03) , \n - MITSUBISHI/LANCER/EVO VIII - FQ-400 (CT9A)/2004.10-2006.08/4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) , \n - MITSUBISHI/LANCER/EVO VIII (CT9A)/2003.04-2005.03/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03) ,
