Extreme Clutch

SKU:KMI20683-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

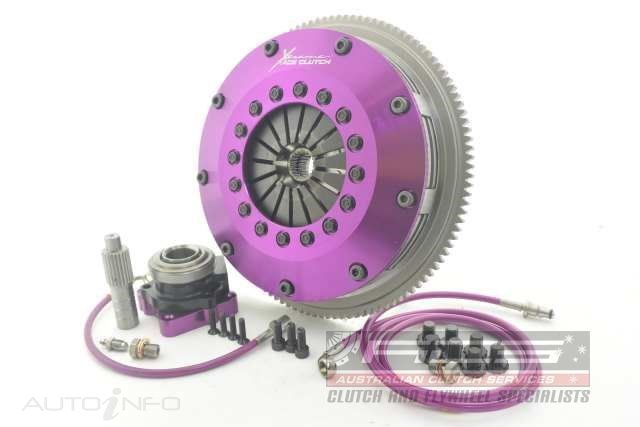

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - MITSUBISHI/LANCER/2.0 i Ralliart 4WD (CY4A)/2008.10-/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 -) , \n - MITSUBISHI/LANCER/2.0 Ralliart 4WD (CX4A)/2008.10-/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 -) , \n - MITSUBISHI/LANCER/EVO X - FQ400 (CZ4A)/2009.05-2010.12/4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12) , \n - MITSUBISHI/LANCER/EVO X - FQ440 (CZ4A)/2014.05-2014.06/4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06) , \n - MITSUBISHI/LANCER/EVO X (CZ4A)/2008.06-2015.03/4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03) , \n - MITSUBISHI/LANCER/EVO X (CZ4A)/2008.06-2015.12/4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12) , \n - MITSUBISHI/LANCER/EVO X (CZ4A)/2014.09-2015.12/4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12) ,
