Extreme Clutch

SKU:KBM20525-2B

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

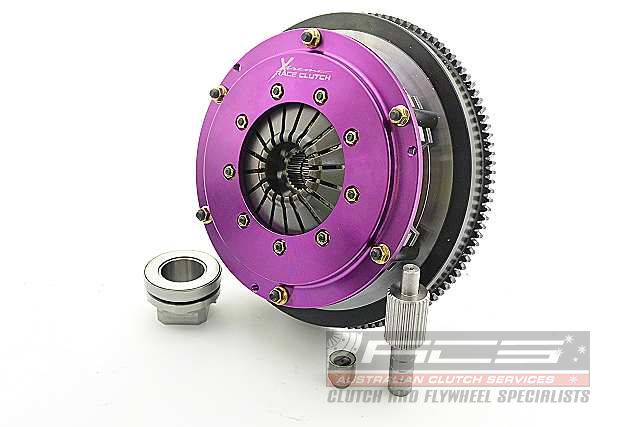

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - BMW/1-Series/135 i E82/2007-2013/2979cc | 225KW | 306HP | N55 B30 A (2007-2013) , \n - BMW/1-Series/135 i E82/2007-2013/2979cc | 240KW | 326HP | N55 B30 A (2007-2013) , \n - BMW/1-Series/135 i E88/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013) , \n - BMW/1-Series/135 i E88/2008-2013/2979cc | 240KW | 326HP | N55 B30 A (2008-2013) , \n - BMW/1-Series/M E82/2011-2012/2979cc | 250KW | 340HP | N54 B30 A (2011-2012) , \n - BMW/3-Series/335 i F30, F80/2011-2015/2979cc | 225KW | 306HP | N55 B30 A (2011-2015) , \n - BMW/3-Series/335 i F31/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015) , \n - BMW/3-Series/335 i F34/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/3-Series/335 i xDrive F30, F80/2012-2015/2979cc | 225KW | 306HP | N55 B30 A (2012-2015) , \n - BMW/3-Series/335 i xDrive F30, F80/2012-2013/2979cc | 240KW | 326HP | N55 B30 A (2012-2013) , \n - BMW/3-Series/335 i xDrive F30, F80/2013-2015/2979cc | 250KW | 340HP | N55 B30 A (2013-2015) , \n - BMW/3-Series/335 i xDrive F31/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015) , \n - BMW/4-Series/435 i F32, F82/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/435 i F32, F82/2013-2016/2979cc | 250KW | 340HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/435 i F33, F83/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/435 i xDrive F32, F82/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/5-Series/535 i F10/2010-2016/2979cc | 225KW | 306HP | N55 B30 A (2010-2016) , \n - BMW/5-Series/535 i F11/2010-2017/2979cc | 225KW | 306HP | N55 B30 A (2010-2017) ,
