Extreme Clutch

SKU:KBM20530-2B

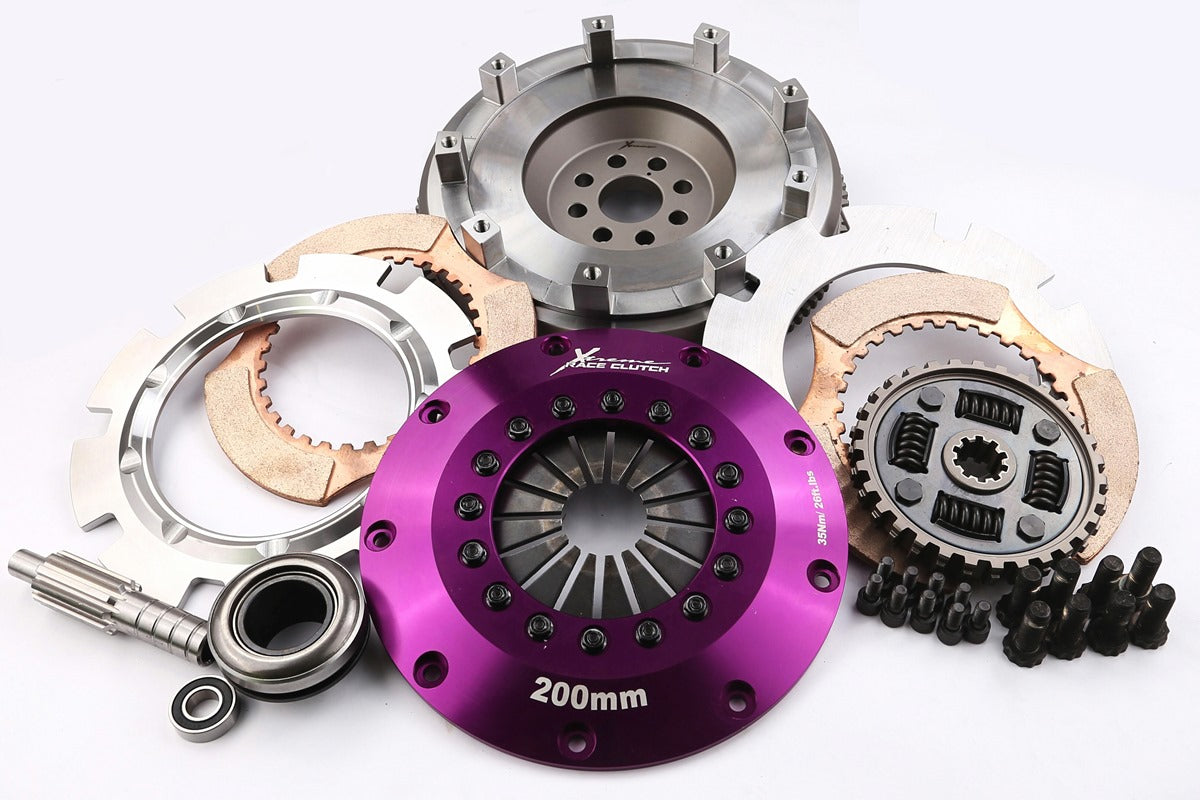

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Passer til følgende biler

Kontrollér model, motor og årgang før bestilling:

• BMW/3-Series/318 is E30/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991)
• BMW/3-Series/318 is E36/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995)
• BMW/3-Series/318 is E36/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995)
• BMW/3-Series/318 is E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
• BMW/3-Series/318 is E36/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998)
• BMW/3-Series/318 ti E36/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995)
• BMW/3-Series/318 ti E36/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999)
• BMW/3-Series/320 Ci E46/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001)
• BMW/3-Series/320 Ci E46/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007)
• BMW/3-Series/320 i E46/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000)
• BMW/3-Series/320 i E46/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000)
• BMW/3-Series/323 Ci E46/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000)
• BMW/3-Series/323 i E46/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000)
• BMW/3-Series/323 ti E36/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000)
• BMW/3-Series/325 i E36/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995)
• BMW/3-Series/325 i E36/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995)
• BMW/3-Series/325 i E36/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995)
• BMW/3-Series/328 Ci E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
• BMW/3-Series/328 i E36/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999)
• BMW/3-Series/328 i E36/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998)
• BMW/3-Series/328 i E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
• BMW/3-Series/328 i E46/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000)
• BMW/3-Series/M3 3.0 E36/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995)
• BMW/3-Series/M3 3.0 E36/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995)
• BMW/3-Series/M3 3.0 E36/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995)
• BMW/3-Series/M3 3.2 E36/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998)
• BMW/3-Series/M3 3.2 E36/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999)
• BMW/5-Series/518 i E34/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994)
• BMW/5-Series/518 i E34/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994)
• BMW/5-Series/518 i E34/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995)
• BMW/5-Series/518 i E34/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996)
• BMW/Z3/1.9 i E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
• BMW/Z3/M E36/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001)
• BMW/Z3/M 3.2 E36/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000)

Applications: - BMW/3-Series/318 is E30/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991) , \n - BMW/3-Series/318 is E36/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995) , \n - BMW/3-Series/318 is E36/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995) , \n - BMW/3-Series/318 is E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) , \n - BMW/3-Series/318 is E36/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998) , \n - BMW/3-Series/318 ti E36/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995) , \n - BMW/3-Series/318 ti E36/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999) , \n - BMW/3-Series/320 Ci E46/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001) , \n - BMW/3-Series/320 Ci E46/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007) , \n - BMW/3-Series/320 i E46/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000) , \n - BMW/3-Series/320 i E46/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000) , \n - BMW/3-Series/323 Ci E46/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/323 i E46/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/323 ti E36/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000) , \n - BMW/3-Series/325 i E36/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) , \n - BMW/3-Series/325 i E36/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995) , \n - BMW/3-Series/325 i E36/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995) , \n - BMW/3-Series/328 Ci E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/328 i E36/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999) , \n - BMW/3-Series/328 i E36/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998) , \n - BMW/3-Series/328 i E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/328 i E46/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000) , \n - BMW/3-Series/M3 3.0 E36/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995) , \n - BMW/3-Series/M3 3.0 E36/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995) , \n - BMW/3-Series/M3 3.0 E36/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995) , \n - BMW/3-Series/M3 3.2 E36/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998) , \n - BMW/3-Series/M3 3.2 E36/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999) , \n - BMW/5-Series/518 i E34/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994) , \n - BMW/5-Series/518 i E34/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994) , \n - BMW/5-Series/518 i E34/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995) , \n - BMW/5-Series/518 i E34/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996) , \n - BMW/Z3/1.9 i E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) , \n - BMW/Z3/M E36/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) , \n - BMW/Z3/M 3.2 E36/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000) ,
