Extreme Clutch

SKU:KHN20522-2B

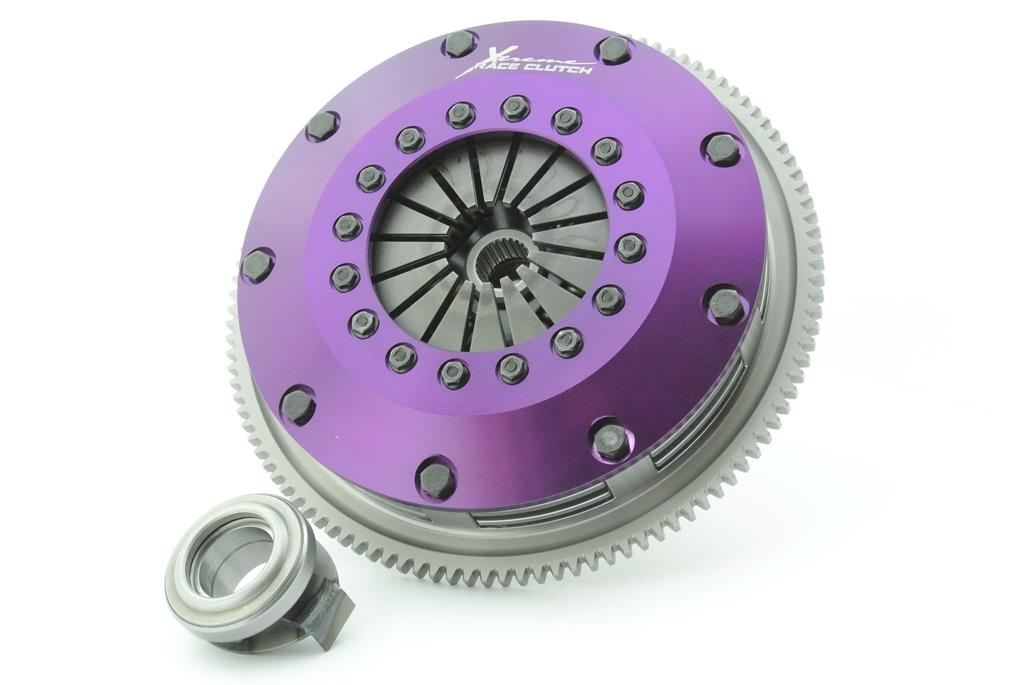

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - HONDA/CIVIC V/1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - HONDA/CIVIC V/1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - HONDA/CIVIC VI/1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) , \n - HONDA/CIVIC VI/1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) , \n - HONDA/CIVIC VI/1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) , \n - HONDA/CIVIC VI/1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) , \n - HONDA/CR-V I/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) , \n - HONDA/CR-V I/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) , \n - HONDA/CR-V I/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) , \n - HONDA/INTEGRA/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) , \n - HONDA/INTEGRA/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) , \n - HONDA/INTEGRA/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) , \n - HONDA/INTEGRA/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) , \n - HONDA/INTEGRA/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) ,
