Extreme Clutch

SKU:KHN20524-2B

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

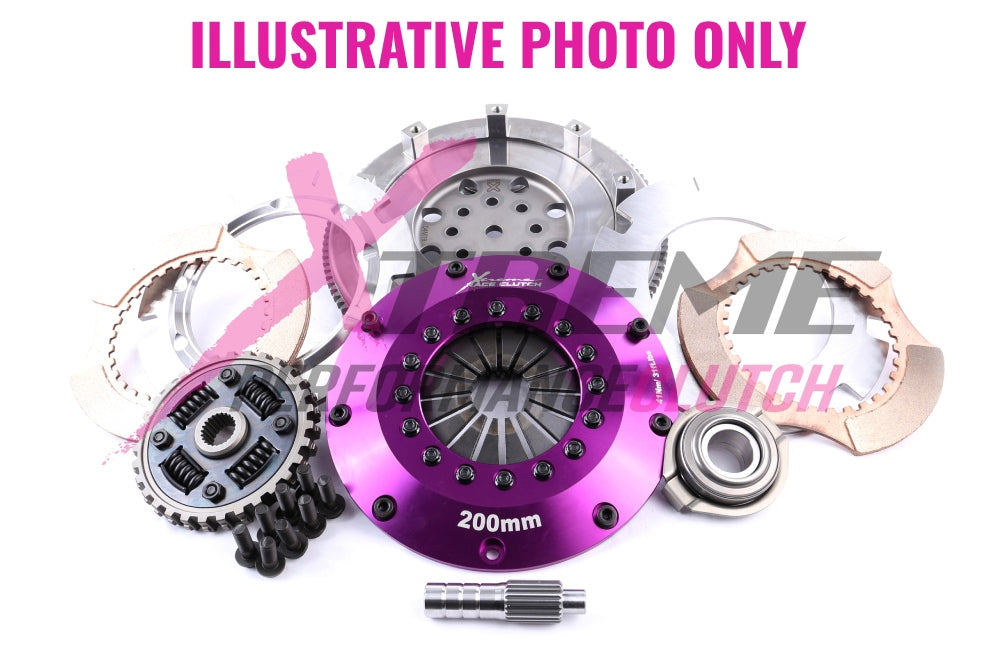

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - HONDA/PRELUDE IV/2.2 S (BA8)/1991.12-1996.11/F22A1 2156 Petrol 96 kW 131 BHP (1991.12 - 1996.11) , \n - HONDA/PRELUDE IV/2.2 VTi-R (BB1)/1994.02-1997.02/H22A1 2156 Petrol 142 kW 193 BHP (1994.02 - 1997.02) , \n - HONDA/PRELUDE IV/2.3 i 16V (BB2)/1992.02-1996.09/H23A2 2259 Petrol 118 kW 160 BHP (1992.02 - 1996.09) , \n - HONDA/PRELUDE V/2.2 16V (BB6. BB8)/1996.10-2000.10/H22A5, H22A4, H22A6, H22A8, H22Z1 2156 Petrol 147 kW 200 BHP (1996.10 - 2000.10) , \n - HONDA/PRELUDE V/2.2 Si (BB5)/1997.03-2001.04/F22Z6 2156 Petrol 118 kW 160 BHP (1997.03 - 2001.04) , \n - HONDA/PRELUDE V/2.2 VTi-R (BB6)/1997.03-1998.10/H22A4 2156 Petrol 142 kW 193 BHP (1997.03 - 1998.10) ,
