Extreme Clutch

SKU:KMC20520-2B

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

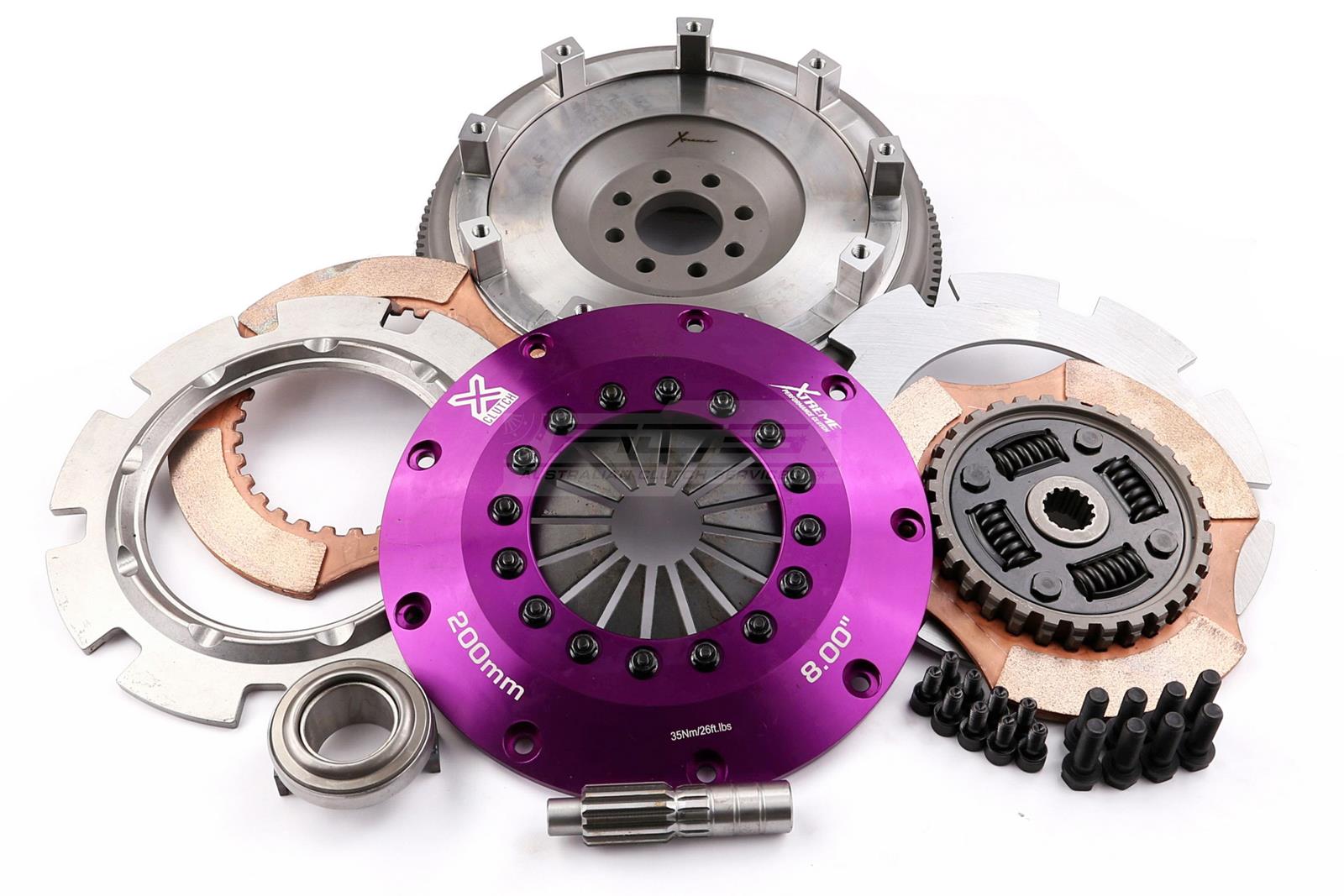

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - MINI/MINI (R50, R53)/John Cooper Works/2006.03-2006.09/W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09) , \n - MINI/MINI (R50, R53)/S Works/2003.11-2005.06/W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06) , \n - MINI/MINI Cabriolet (R52)/Cooper S/2004.07-2007.11/W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11) , \n - MINI/MINI Cabriolet (R52)/John Cooper Works/2004.07-2007.11/W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11) ,
