Extreme Clutch

SKU:KMI20525-2B

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

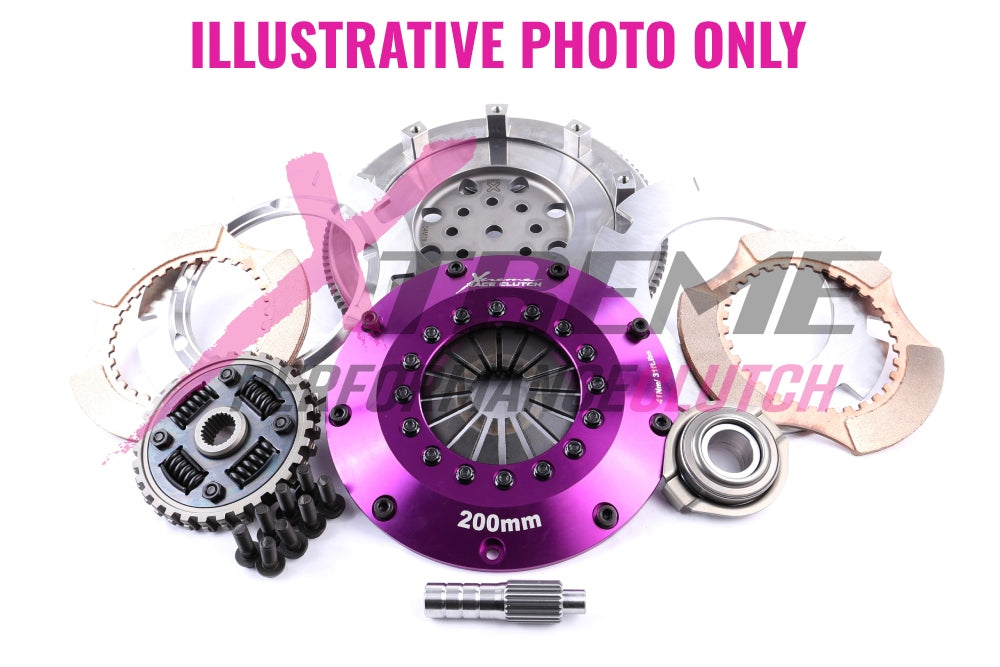

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - MITSUBISHI/3000 GT coupe (Z1_A)/3.0 i 24V 4WD (Z16A)/1990.01-1999.08/6G72-T 2972 Petrol 210 kW 286 BHP (1990.01 - 1999.08) , \n - MITSUBISHI/GTO coupe/3.0 AWD/1994.01-2000.12/6G72 (DOHC 24V), 6G72-T 2972 Petrol 210 kW 286 BHP (1994.01 - 2000.12) , \n - MITSUBISHI/GTO coupe/3.0 AWD/1996.05-2000.09/6G72-T 2972 Petrol 206 kW 280 BHP (1996.05 - 2000.09) ,
