Extreme Clutch

SKU:KMZ20520-2B

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

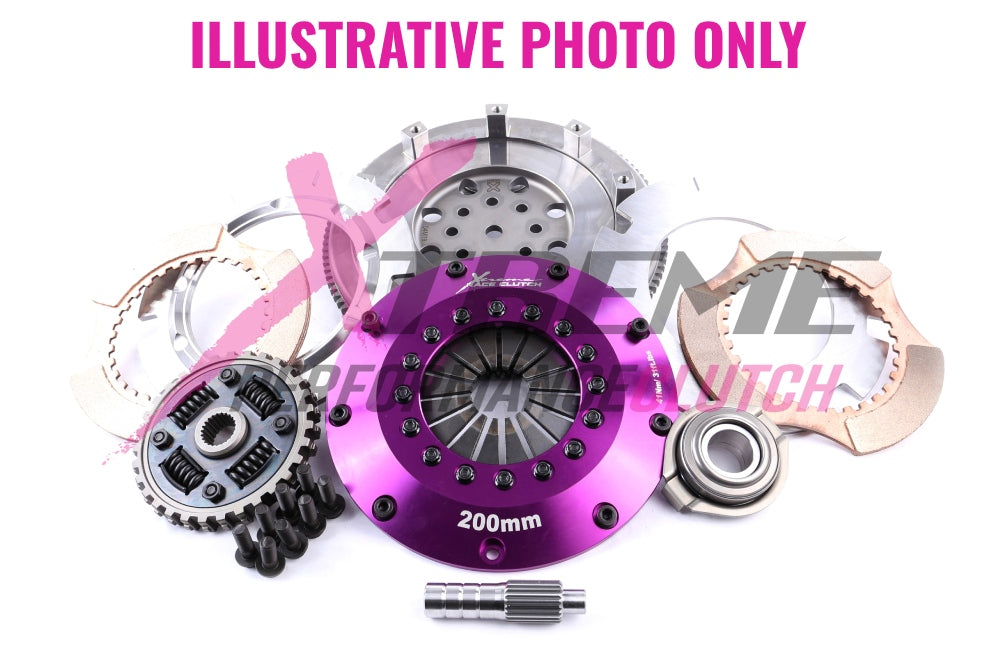

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - MAZDA/323 F VI (BJ)/2.0/2000.02-2004.05/FS 1991 Petrol 98 kW 133 BHP (2000.02 - 2004.05) , \n - MAZDA/323 F VI (BJ)/2.0 (BJFW)/2001.01-2004.05/FS7E, FS7G 1991 Petrol 96 kW 131 BHP (2001.01 - 2004.05) , \n - MAZDA/323 S VI (BJ)/2.0 (SP20)/2000.02-2004.05/FS 1991 Petrol 98 kW 133 BHP (2000.02 - 2004.05) , \n - MAZDA/626 III Station Wagon (GV)/2.0 GLX/1992.04-1995.02/FS 1991 Petrol 86 kW 117 BHP (1992.04 - 1995.02) , \n - MAZDA/626 IV (GE)/2.0 i (GE10S1)/1992.01-1997.04/FS 1991 Petrol 85 kW 115 BHP (1992.01 - 1997.04) , \n - MAZDA/626 IV Hatchback (GE)/2.0 i (GE10S1)/1991.08-1997.04/FS 1991 Petrol 85 kW 115 BHP (1991.08 - 1997.04) , \n - MAZDA/626 V (GF)/2.0/1998.01-2002.10/FS 1991 Petrol 93 kW 126 BHP (1998.01 - 2002.10) , \n - MAZDA/626 V Hatchback (GF)/2.0/1998.01-2002.10/FS 1991 Petrol 93 kW 126 BHP (1998.01 - 2002.10) , \n - MAZDA/626 V Station Wagon (GW)/2.0/1998.01-2002.10/FS 1991 Petrol 93 kW 126 BHP (1998.01 - 2002.10) ,
