Extreme Clutch

SKU:KNI20521-2B

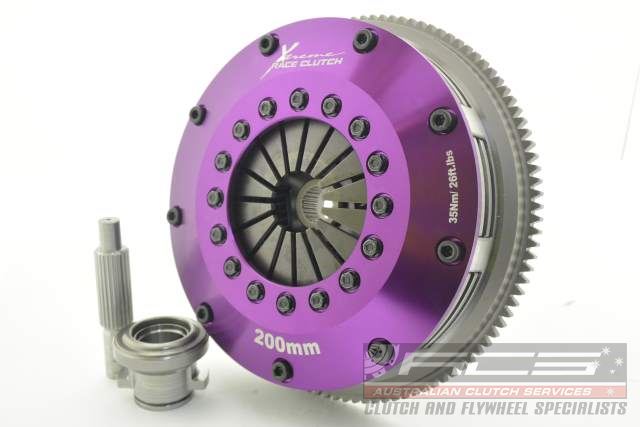

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

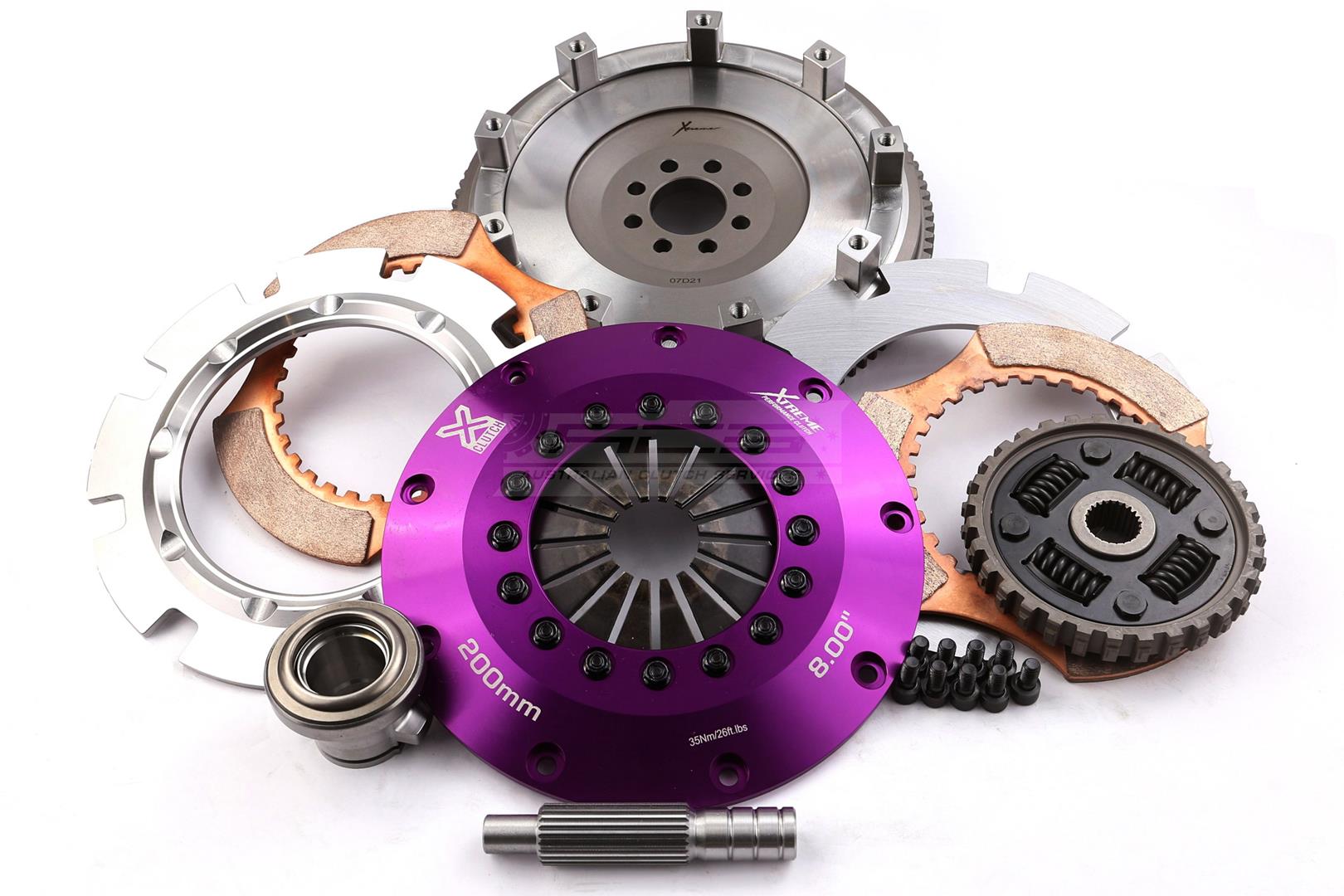

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - NISSAN/180SX coupe (S13)/2.0/1992.01-1997.01/SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) , \n - NISSAN/180SX coupe (S13)/2.0 Turbo/1991.04-1994.03/SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) , \n - NISSAN/200SX coupe (S14)/2.0 i 16V Turbo/1993.10-1999.12/SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) , \n - NISSAN/200SX coupe (S14)/2.0 Turbo/1994.04-1999.09/SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) , \n - NISSAN/SILVIA coupe (S13)/2.0/1991.01-1993.09/SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) , \n - NISSAN/SILVIA coupe (S13)/2.0/1991.01-1993.09/SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) ,
