Extreme Clutch

SKU:KTY20520-2B

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

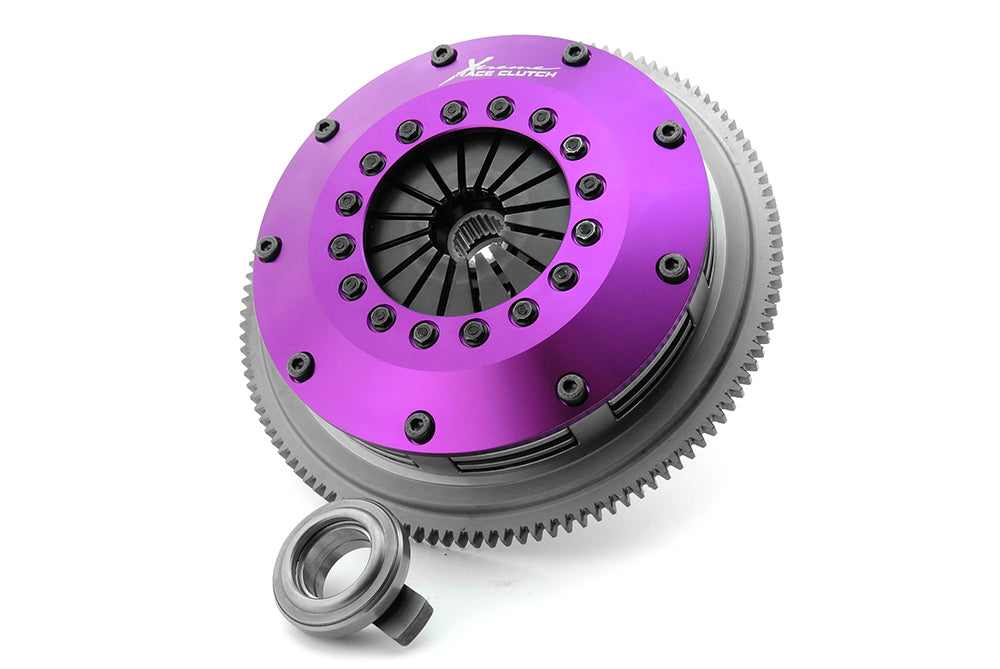

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• High torque sprung driven discs (common hub)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - TOYOTA/CALDINA Wagon/2.0 4WD (ST215W_)/2000.02-2001.09/3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09) , \n - TOYOTA/CELICA coupe/2.0 4WD (ST185)/1989.10-1993.09/3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09) , \n - TOYOTA/CELICA coupe/2.0 4WD (ST185)/1989.10-1993.11/3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11) , \n - TOYOTA/CELICA coupe/2.0 4WD (ST185)/1989.10-1994.01/3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01) , \n - TOYOTA/CELICA coupe/2.0 i Turbo 4WD (ST205)/1994.02-1999.11/3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11) , \n - TOYOTA/MR2 II/2.0 (SW20)/1989.12-1999.07/3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07) , \n - TOYOTA/MR2 II/2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07) , \n - TOYOTA/MR2 II/2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07) ,
