Extreme Clutch

SKU:KFD23648-2P

-2P

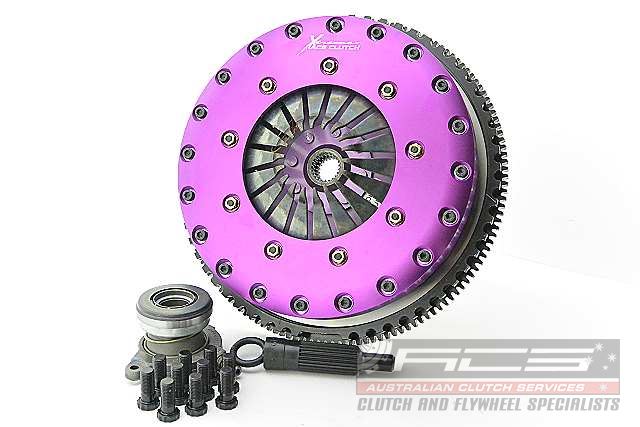

	The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
	Flat Diaphragm Rolled Diaphragm Clamping Force 1300kg 1300kg Torque Rating 1675Nm 1675Nm Bearing Contact Diameter 65mm FLAT BEARING Bearing Load (@ 48mm) 180kg 150kg Release Travel Required 7mm 7mm Assembly Mass (without flywheel) 7.8kg 7.8kg Disc Set Static Mass 1.75kg 1.75kg Friction Thickness New 7.47mm (0.305") 7.47mm (0.305") Friction Thickness Worn 7.24mm (0.285") 7.24mm (0.285") Product Features: Push type billet alloy cover Low pedal effort 4140 Chromoly pressure & intermediate plates Chromoly adapter ring Low inertia Carbon Friction Stable at extreme temperatures Serviceable components SFI certified design

Applications: - FORD/FOCUS II/2.5 ST/2005.10-2012.09/HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09) , \n - FORD/MONDEO IV/2.5/2007.03-2012.12/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12) , \n - FORD/MONDEO IV/2.5/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) , \n - FORD/MONDEO liftback (MA, MB, MC)/XR5 Turbo/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) , \n - FORD/S-MAX (WA6)/2.5 ST/2006.05-2014.12/HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12) , \n - VOLVO/C30 (533)/T5/2006.10-2012.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12) , \n - VOLVO/C30 (533)/T5/2007.03-2012.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12) , \n - VOLVO/C30 (533)/T5/2007.10-2013.12/B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12) , \n - VOLVO/S40 II (544)/T5/2004.01-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12) , \n - VOLVO/S40 II (544)/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) , \n - VOLVO/V50 (545)/T5/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) , \n - VOLVO/V50 (545)/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) , \n - VOLVO/V50 (545)/T5 AWD/2007.03-2010.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12) , \n - FORD/FOCUS II/2.5 RS/2009-2012/JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012) ,
