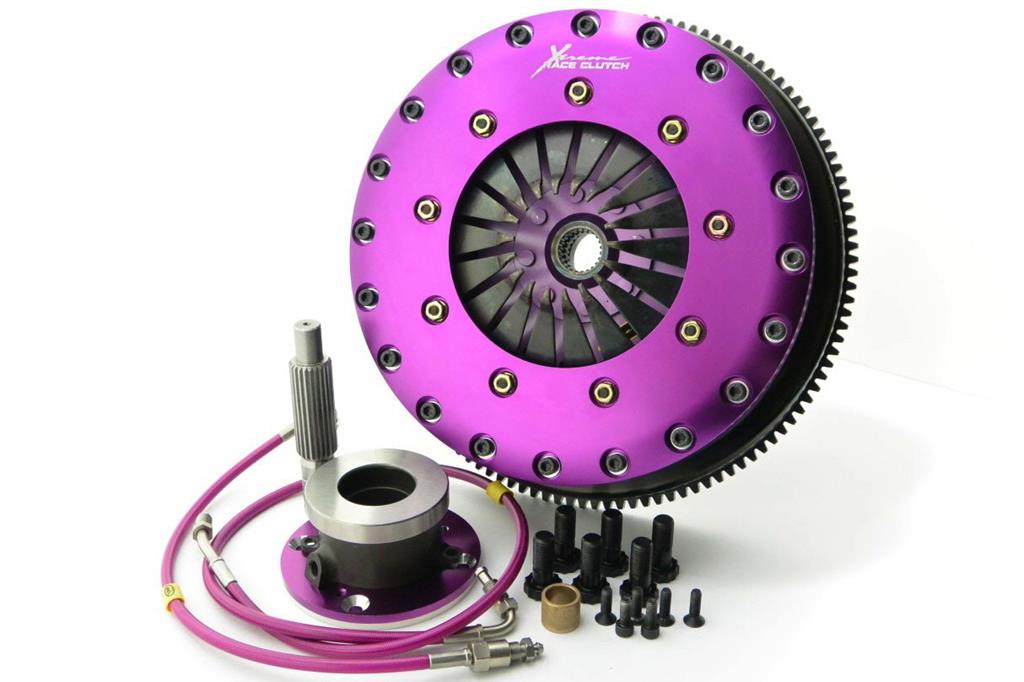

Xtreme Performance - 230mm Carbon Blade Twin Plate Clutch Kit Incl Flywheel & CSC 1670Nm KNI23683-2P

Xtreme Performance - 230mm Carbon Blade Twin Plate Clutch Kit Incl Flywheel & CSC 1670Nm KNI23683-2P

KNI23683-2P

28.830,00 DKK
28.830,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.

-2P

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1675Nm 1675Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 7.8kg 7.8kg
Disc Set Static Mass 1.75kg 1.75kg
Friction Thickness New 7.47mm (0.305") 7.47mm (0.305")
Friction Thickness Worn 7.24mm (0.285") 7.24mm (0.285")

Product Features:

  • Push type billet alloy cover
  • Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Carbon Friction Stable at extreme temperatures
  • Serviceable components
  • SFI certified design

Applications: - NISSAN/SKYLINE coupe (R34)/2.6 Turbo 4x4/1999.01-2008.02/RB26DETT 2569 Petrol 245 kW 333 BHP (1999.01 - 2008.02) ,
