Extreme Clutch

SKU:KTY23597-2P

-2P

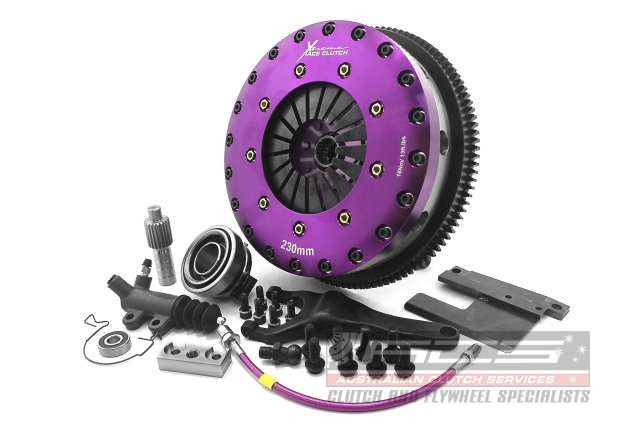

	The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
	Flat Diaphragm Rolled Diaphragm Clamping Force 1300kg 1300kg Torque Rating 1675Nm 1675Nm Bearing Contact Diameter 65mm FLAT BEARING Bearing Load (@ 48mm) 180kg 150kg Release Travel Required 7mm 7mm Assembly Mass (without flywheel) 7.8kg 7.8kg Disc Set Static Mass 1.75kg 1.75kg Friction Thickness New 7.47mm (0.305") 7.47mm (0.305") Friction Thickness Worn 7.24mm (0.285") 7.24mm (0.285") Product Features: Push type billet alloy cover Low pedal effort 4140 Chromoly pressure & intermediate plates Chromoly adapter ring Low inertia Carbon Friction Stable at extreme temperatures Serviceable components SFI certified design

Applications: - TOYOTA/CHASER/2.5 (JZX100_)/1996.10-2001.05/1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05) , \n - TOYOTA/CHASER/2.5 (JZX100_)/1996.10-2001.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05) , \n - TOYOTA/CHASER/2.5 (JZX90. JZX93)/1992.10-1996.08/1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08) , \n - TOYOTA/CHASER/2.5 Turbo (JZX90)/1992.10-1996.08/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08) , \n - TOYOTA/MARK II VI sedan/2.5 (JZX110)/1992.10-1996.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09) , \n - TOYOTA/MARK II VIII sedan/2.5 VVTi (JZX100)/1996.10-2001.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09) , \n - TOYOTA/SOARER coupe/2.5 Turbo (JZZ30)/1990.09-2000.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09) , \n - TOYOTA/SUPRA/2.5 i Bi-Turbo (JZA70)/1990.08-1993.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05) ,
