Extreme Clutch

SKU:KBM23589-2E

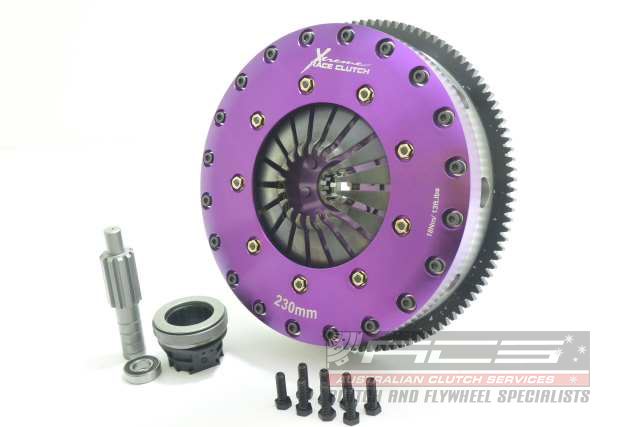

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

• Torque capacity 1800Nm
• Kit contains everything you need for a successful installation + accessories
• Push type billet alloy cover Low pedal effort
• 4140 Chromoly pressure & intermediate plates
• Chromoly adapter ring
• Low inertia
• Serviceable components
• SFI certified design

	Flat Diaphragm	Rolled Diaphragm
Clamping Force	1300kg	1300kg
Torque Rating	1800Nm	1800Nm
Bearing Contact Diameter	65mm	FLAT BEARING
Bearing Load (@ 48mm)	180kg	150kg
Release Travel Required	7mm	7mm
Assembly Mass (without flywheel)	8.30kg	8.30kg
Disc Set Static Mass	2.25kg	2.25kg
Friction Thickness New	8mm (0.315")	8mm (0.315")
Friction Thickness Worn	7.5mm (0.295")	7.5mm (0.295")

Applications: - BMW/3-Series/318 is E30/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991) , \n - BMW/3-Series/318 is E36/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995) , \n - BMW/3-Series/318 is E36/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995) , \n - BMW/3-Series/318 is E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) , \n - BMW/3-Series/318 is E36/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998) , \n - BMW/3-Series/318 ti E36/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995) , \n - BMW/3-Series/318 ti E36/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999) , \n - BMW/3-Series/320 Ci E46/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001) , \n - BMW/3-Series/320 Ci E46/2000-2006/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2006) , \n - BMW/3-Series/320 Ci E46/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007) , \n - BMW/3-Series/320 Ci E46/2000-2006/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2006) , \n - BMW/3-Series/320 i E46/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000) , \n - BMW/3-Series/320 i E46/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000) , \n - BMW/3-Series/320 i E46/2000-2005/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2005) , \n - BMW/3-Series/320 i E46/2000-2005/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2005) , \n - BMW/3-Series/323 Ci E46/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/323 Ci E46/2000-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (2000-2000) , \n - BMW/3-Series/323 Ci E46/2000-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (2000-2000) , \n - BMW/3-Series/323 Ci E46/1999-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/323 i E46/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/323 i E46/1998-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/323 ti E36/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000) , \n - BMW/3-Series/325 i E36/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) , \n - BMW/3-Series/325 i E36/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995) , \n - BMW/3-Series/325 i E36/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995) , \n - BMW/3-Series/325 i E46/2000-2005/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2005) , \n - BMW/3-Series/328 Ci E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/328 i E36/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999) , \n - BMW/3-Series/328 i E36/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998) , \n - BMW/3-Series/328 i E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/328 i E46/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000) , \n - BMW/3-Series/330 Ci E46/2000-2006/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2006) 5 Speed, Production date: until 02/2003\n - BMW/3-Series/330 i E46/2000-2005/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2005) 5 Speed, Production date: until 02/2003\n - BMW/3-Series/M3 3.0 E36/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995) , \n - BMW/3-Series/M3 3.0 E36/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995) , \n - BMW/3-Series/M3 3.0 E36/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995) , \n - BMW/3-Series/M3 3.2 E36/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998) , \n - BMW/3-Series/M3 3.2 E36/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999) , \n - BMW/5-Series/518 i E34/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994) , \n - BMW/5-Series/518 i E34/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994) , \n - BMW/5-Series/518 i E34/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995) , \n - BMW/5-Series/518 i E34/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996) , \n - BMW/5-Series/520 i E39/1996-2003/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1996-2003) , \n - BMW/5-Series/520 i E39/1997-2001/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) , \n - BMW/5-Series/520 i E39/1997-2001/1990cc | 100KW | 136HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) , \n - BMW/5-Series/520 i E39/2000-2003/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2003) , \n - BMW/5-Series/523 i E39/1995-2000/2494cc | 125KW | 170HP | M52 B25 (256S3);M52 B25 (256S4) (1995-2000) , \n - BMW/5-Series/523 i E39/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3);M52 B25 (256S4) (1997-2000) , \n - BMW/5-Series/525 e E28/1983-1987/2693cc | 92KW | 125HP | M20 B27 (276EA) (1983-1987) , \n - BMW/5-Series/525 e E28/1985-1987/2693cc | 95KW | 129HP | M20 B27 (276EB), M20 B27 (276KB) (1985-1987) , \n - BMW/5-Series/525 e E28/1981-1987/2693cc | 90KW | 122HP | M20 B27 (276KA), M20 B27 (276KB) (1981-1987) , \n - BMW/5-Series/525 i E34/1988-1990/2494cc | 125KW | 170HP | M20 B25 (256K1) (1988-1990) , \n - BMW/5-Series/525 i E34/1991-1996/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1996) , \n - BMW/5-Series/525 i E39/2000-2003/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2003) , \n - BMW/5-Series/525 i 24V E34/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) , \n - BMW/5-Series/528 i E39/1995-2000/2793cc | 142KW | 193HP | M52 B28 (286S1), M52 B28 (286S2) (1995-2000) , \n - BMW/5-Series/528 i E39/1996-2000/2793cc | 142KW | 193HP | M52 B28 (286S1), M52 B28 (286S2) (1996-2000) , \n - BMW/Z3/1.9 i E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) , \n - BMW/Z3/2.0 i E36/1999-2003/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2003) , \n - BMW/Z3/2.2 i E36/2000-2002/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2002) , \n - BMW/Z3/2.8 i E36/1996-2000/2793cc | 142KW | 193HP | M52 B28 (286S1) (1996-2000) , \n - BMW/Z3/2.8 i E36/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S1);M52 B28 (286S2) (1998-2000) , \n - BMW/Z3/3.0 i E36/2000-2003/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2003) , \n - BMW/Z3/M E36/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) , \n - BMW/Z3/M 3.2 E36/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000) ,
