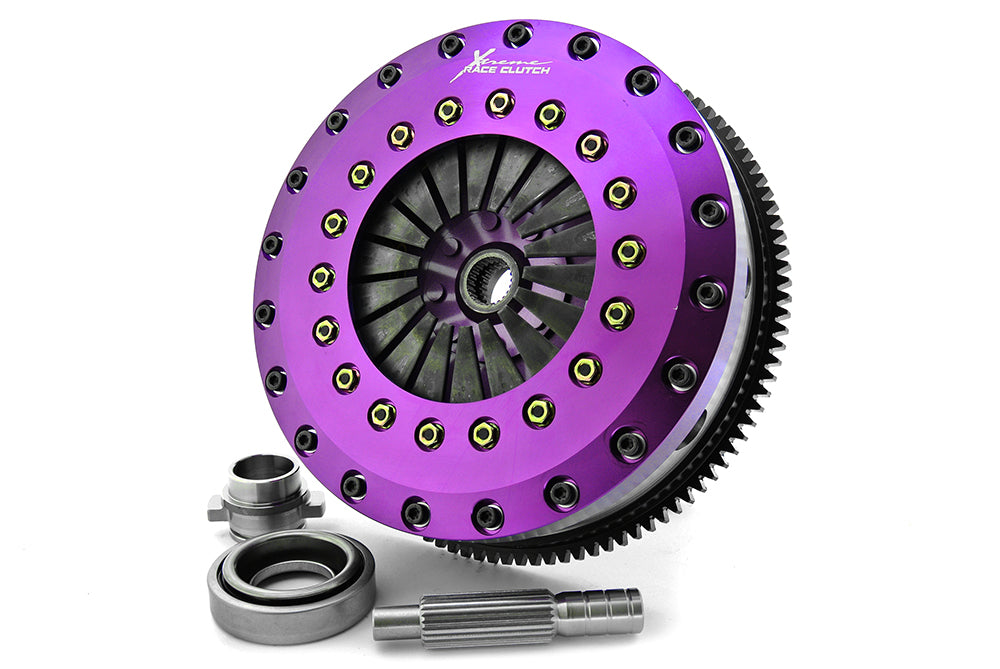

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm KNI23531-2E

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm KNI23531-2E

KNI23531-2E

12.198,00 DKK
12.198,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.
Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Applications: - NISSAN/180SX coupe (S13)/2.0/1992.01-1997.01/SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) , \n - NISSAN/180SX coupe (S13)/2.0 Turbo/1991.04-1994.03/SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) , \n - NISSAN/200SX coupe (S14)/2.0 i 16V Turbo/1993.10-1999.12/SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) , \n - NISSAN/200SX coupe (S14)/2.0 Turbo/1994.04-1999.09/SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) , \n - NISSAN/SILVIA coupe (S13)/2.0/1991.01-1993.09/SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) , \n - NISSAN/SILVIA coupe (S13)/2.0/1991.01-1993.09/SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) ,
