Extreme Clutch

SKU:KCR23683-2E

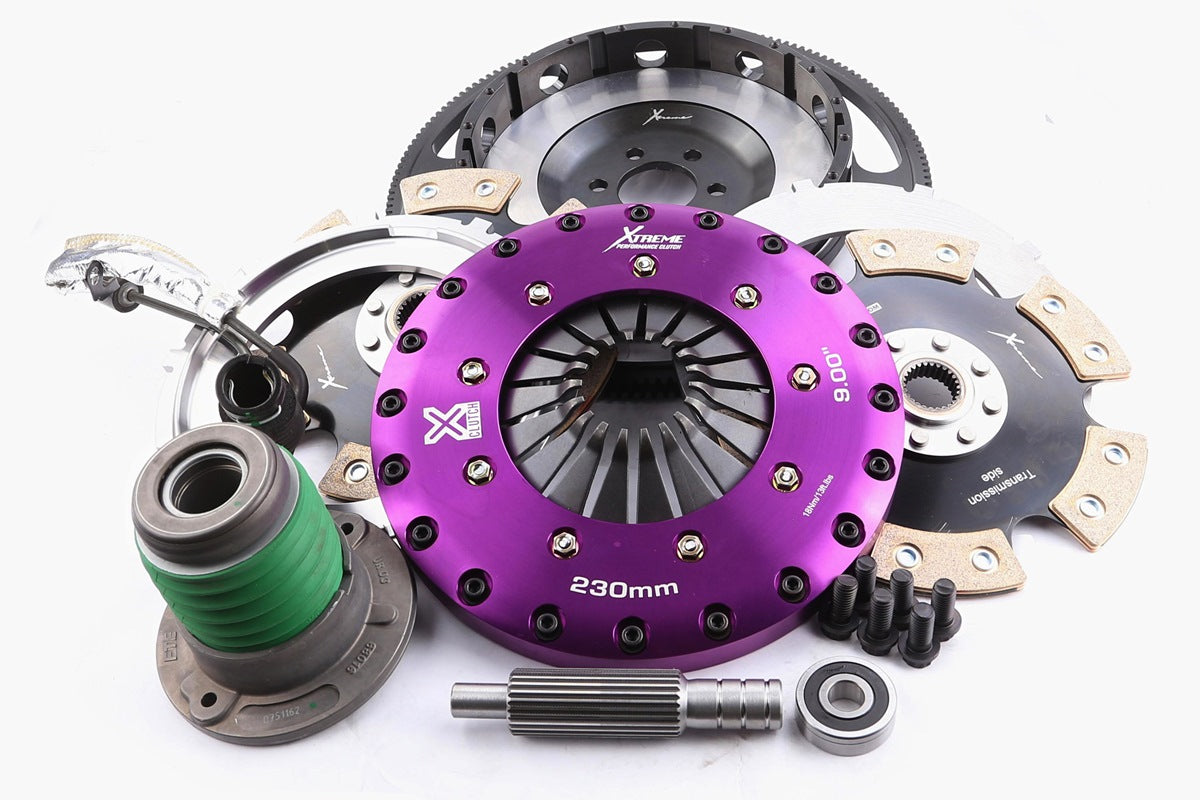

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

• Torque capacity 1800Nm
• Kit contains everything you need for a successful installation + accessories
• Push type billet alloy cover Low pedal effort
• 4140 Chromoly pressure & intermediate plates
• Chromoly adapter ring
• Low inertia
• Serviceable components
• SFI certified design

	Flat Diaphragm	Rolled Diaphragm
Clamping Force	1300kg	1300kg
Torque Rating	1800Nm	1800Nm
Bearing Contact Diameter	65mm	FLAT BEARING
Bearing Load (@ 48mm)	180kg	150kg
Release Travel Required	7mm	7mm
Assembly Mass (without flywheel)	8.30kg	8.30kg
Disc Set Static Mass	2.25kg	2.25kg
Friction Thickness New	8mm (0.315")	8mm (0.315")
Friction Thickness Worn	7.5mm (0.295")	7.5mm (0.295")

Applications: - CHEVROLET/CORVETTE (C6)/6.0/2004.09-/LS2(364CUV8) 5965 Petrol 298 kW 405 BHP (2004.09 -) , \n - CHEVROLET/CORVETTE (C6)/6.2/2008.02-/LS3(376CUV8) 6162 Petrol 321 kW 437 BHP (2008.02 -) , \n - CHEVROLET/CORVETTE (C6)/Z06 7.0/2006.03-/LS7 7008 Petrol 377 kW 512 BHP (2006.03 -) , \n - CHEVROLET/CORVETTE Cabriolet (C6)/6.0/2004.09-/LS2(364CUV8) 5965 Petrol 298 kW 405 BHP (2004.09 -) , \n - CHEVROLET/CORVETTE Cabriolet (C6)/6.2/2008.02-/LS3(376CUV8) 6162 Petrol 321 kW 437 BHP (2008.02 -) , \n - CHEVROLET/CORVETTE Cabriolet (C6)/Z06 7.0/2012.06-/LS7 7008 Petrol 377 kW 512 BHP (2012.06 -) ,
