Extreme Clutch

SKU:KGM23630-2E

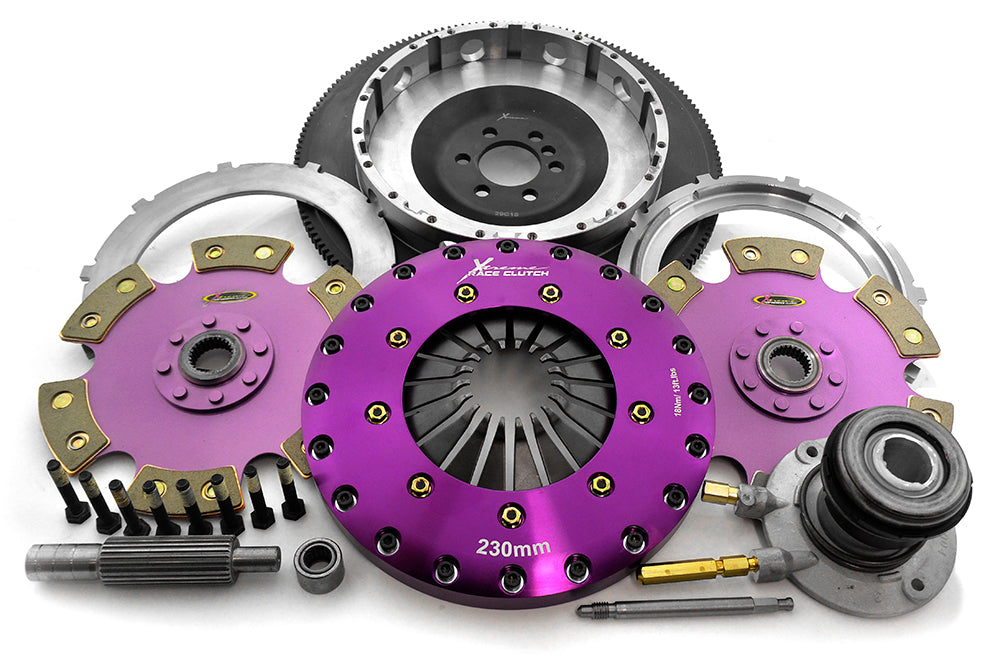

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

• Torque capacity 1800Nm
• Kit contains everything you need for a successful installation + accessories
• Push type billet alloy cover Low pedal effort
• 4140 Chromoly pressure & intermediate plates
• Chromoly adapter ring
• Low inertia
• Serviceable components
• SFI certified design

	Flat Diaphragm	Rolled Diaphragm
Clamping Force	1300kg	1300kg
Torque Rating	1800Nm	1800Nm
Bearing Contact Diameter	65mm	FLAT BEARING
Bearing Load (@ 48mm)	180kg	150kg
Release Travel Required	7mm	7mm
Assembly Mass (without flywheel)	8.30kg	8.30kg
Disc Set Static Mass	2.25kg	2.25kg
Friction Thickness New	8mm (0.315")	8mm (0.315")
Friction Thickness Worn	7.5mm (0.295")	7.5mm (0.295")

Applications: - CHEVROLET/CAMARO/5.7/1998.07-2002.12/LS1 5665 Petrol 212 kW 288 BHP (1998.07 - 2002.12) , \n - HOLDEN/CALAIS sedan (VT)/5.7 i V8/1999.06-2000.10/LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.10) , \n - HOLDEN/CALAIS sedan (VX)/5.7 i V8/2000.09-2002.09/LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09) , \n - HOLDEN/CALAIS sedan (VY)/5.7 i V8/2003.08-2004.08/LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.08) , \n - HOLDEN/CALAIS sedan (VZ)/5.7 i V8/2004.08-2006.01/LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.01) , \n - HOLDEN/CALAIS sedan (VZ)/6.0 i V8/2005.11-2006.06/L76 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.06) , \n - HOLDEN/COMMODORE pick-up (VE)/6.0 i V8/2007.09-2010.09/L76 5967 Petrol 260 kW 354 BHP (2007.09 - 2010.09) , \n - HOLDEN/COMMODORE pick-up (VU)/5.7 i V8/2000.12-2002.09/LS1 5665 Petrol 225 kW 306 BHP (2000.12 - 2002.09) , \n - HOLDEN/COMMODORE pick-up (VY)/5.7 i V8/2002.09-2003.08/LS1 5665 Petrol 225 kW 306 BHP (2002.09 - 2003.08) , \n - HOLDEN/COMMODORE pick-up (VY)/5.7 i V8/2002.09-2003.08/LS1 5665 Petrol 245 kW 333 BHP (2002.09 - 2003.08) , \n - HOLDEN/COMMODORE pick-up (VY)/5.7 i V8/2002.09-2004.08/LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2004.08) , \n - HOLDEN/COMMODORE pick-up (VZ)/5.7 i V8/2004.09-2006.02/LS1 5665 Petrol 250 kW 340 BHP (2004.09 - 2006.02) , \n - HOLDEN/COMMODORE pick-up (VZ)/6.0 i V8/2005.11-2007.08/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2007.08) , \n - HOLDEN/COMMODORE sedan (VT)/5.7 i V8/1999.06-2000.08/LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.08) , \n - HOLDEN/COMMODORE sedan (VX)/5.7 i V8/2000.09-2002.09/LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09) , \n - HOLDEN/COMMODORE sedan (VY)/5.7 i V8/2002.09-2003.08/LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2003.08) , \n - HOLDEN/COMMODORE sedan (VY)/5.7 i V8/2002.09-2003.08/LS1 5665 Petrol 245 kW 333 BHP (2002.09 - 2003.08) , \n - HOLDEN/COMMODORE sedan (VZ)/5.7 i V8/2004.09-2005.12/LS1 5665 Petrol 235 kW 320 BHP (2004.09 - 2005.12) , \n - HOLDEN/COMMODORE sedan (VZ)/5.7 i V8/2004.09-2005.12/LS1 5665 Petrol 250 kW 340 BHP (2004.09 - 2005.12) , \n - HOLDEN/COMMODORE sedan (VZ)/6.0 i V8/2005.11-2006.06/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.06) , \n - HOLDEN/COMMODORE Wagon (VT)/5.7 i V8/1999.06-2000.08/LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.08) , \n - HOLDEN/COMMODORE Wagon (VX)/5.7 i V8/2000.09-2002.09/LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09) , \n - HOLDEN/COMMODORE Wagon (VY)/5.7 i V8/2002.09-2003.08/LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2003.08) , \n - HOLDEN/COMMODORE Wagon (VZ)/5.7 i V8/2004.09-2005.12/LS1 5665 Petrol 235 kW 320 BHP (2004.09 - 2005.12) , \n - HOLDEN/COMMODORE Wagon (VZ)/6.0 i V8/2006.01-2007.01/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.01 - 2007.01) , \n - HOLDEN/CREWMAN pick-up (VY)/5.7 i V8/2003.09-2004.07/LS1 5665 Petrol 225 kW 306 BHP (2003.09 - 2004.07) , \n - HOLDEN/CREWMAN pick-up (VY)/5.7 i V8 4x4/2003.09-2004.07/LS1 5665 Petrol 225 kW 306 BHP (2003.09 - 2004.07) , \n - HOLDEN/CREWMAN pick-up (VZ)/5.7 i V8/2004.08-2006.02/LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.02) , \n - HOLDEN/CREWMAN pick-up (VZ)/5.7 i V8 4x4/2004.08-2006.02/LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.02) , \n - HOLDEN/CREWMAN pick-up (VZ)/6.0 i V8 4x4/2005.11-2006.07/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.07) , \n - HOLDEN/CREWMAN pick-up (VZ)/6.0 i V8 SS/SS Thunder/2005.11-2006.07/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.07) , \n - HOLDEN/MONARO coupe (V2)/5.7 i V8/2001.12-2003.01/LS1 5665 Petrol 225 kW 306 BHP (2001.12 - 2003.01) , \n - HOLDEN/MONARO coupe (V2)/5.7 i V8/2003.01-2003.08/LS1 5665 Petrol 235 kW 320 BHP (2003.01 - 2003.08) , \n - HOLDEN/MONARO coupe (V2)/5.7 i V8/2003.08-2004.09/LS1 5665 Petrol 245 kW 333 BHP (2003.08 - 2004.09) , \n - HOLDEN/MONARO coupe (VZ)/5.7 i V8/2004.09-2006.07/LS1 5665 Petrol 260 kW 354 BHP (2004.09 - 2006.07) , \n - HOLDEN/ONE TONNER (VY)/5.7 i V8/2003.08-2004.07/LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.07) , \n - HOLDEN/ONE TONNER pick-up (VZ)/5.7 i V8/2004.11-2005.12/5665 Petrol 260 kW 354 BHP (2004.11 - 2005.12) , \n - HOLDEN/ONE TONNER pick-up (VZ)/5.7 i V8/2004.11-2005.12/LS1 5665 Petrol 235 kW 320 BHP (2004.11 - 2005.12) , \n - HSV/CLUBSPORT sedan (VT)/5.7 i V8/1999.07-2000.10/LS1 5665 Petrol 250 kW 340 BHP (1999.07 - 2000.10) , \n - HSV/CLUBSPORT sedan (VX)/5.7 i V8/2000.09-2002.09/LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09) , \n - HSV/CLUBSPORT sedan (VY)/5.7 i V8/2002.10-2003.08/LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08) , \n - HSV/CLUBSPORT sedan (VY)/5.7 i V8/2003.09-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09) , \n - HSV/CLUBSPORT sedan (VZ)/6.0 i V8/2004.10-2006.12/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.12) , \n - HSV/GTO coupe (V2)/5.7 i V8/2001.03-2003.08/LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2003.08) , \n - HSV/GTO coupe (VX, VZ)/5.7 i V8/2003.09-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09) , \n - HSV/GTO coupe (VX, VZ)/6.0 i V8/2004.10-2007.11/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.11) , \n - HSV/GTS coupe (V2)/5.7 i V8/2001.03-2004.09/LS1 5665 Petrol 300 kW 408 BHP (2001.03 - 2004.09) , \n - HSV/GTS sedan (VT)/5.7 i V8/2000.04-2000.09/LS1 5665 Petrol 300 kW 408 BHP (2000.04 - 2000.09) , \n - HSV/GTS sedan (VX)/5.7 i V8/2000.09-2001.08/LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2001.08) , \n - HSV/GTS sedan (VY)/5.7 i V8/2002.10-2004.09/LS1 5665 Petrol 300 kW 408 BHP (2002.10 - 2004.09) , \n - HSV/MALOO (VU)/5.7 i V8/2001.03-2002.09/LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2002.09) , \n - HSV/MALOO (VY)/5.7 i V8/2002.10-2003.09/LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.09) , \n - HSV/MALOO (VY)/5.7 i V8/2003.10-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.10 - 2004.09) , \n - HSV/MALOO (VZ)/6.0 i V8/2004.10-2007.09/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.09) , \n - HSV/SENATOR sedan (VT)/5.7 i V8/1997.09-1999.06/LS1 5665 Petrol 250 kW 340 BHP (1997.09 - 1999.06) , \n - HSV/SENATOR sedan (VX)/5.7 i V8/2000.09-2002.09/LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09) , \n - HSV/SENATOR sedan (VX)/5.7 i V8/2000.09-2002.09/LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2002.09) , \n - HSV/SENATOR sedan (VY)/5.7 i V8/2002.10-2003.08/LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08) , \n - HSV/SENATOR sedan (VY)/5.7 i V8/2003.09-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09) , \n - HSV/SENATOR sedan (VZ)/6.0 i V8/2004.10-2006.07/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.07) , \n - HSV/SENATOR Wagon (VT)/5.7 i V8/1997.09-2000.08/LS1 5665 Petrol 250 kW 340 BHP (1997.09 - 2000.08) , \n - HSV/SV300 (VX)/5.7 i V8/2001.09-2001.12/LS1 5665 Petrol 300 kW 408 BHP (2001.09 - 2001.12) , \n - HSV/SV6000 sedan/6.0 i V8/2005.08-2006.04/LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2005.08 - 2006.04) , \n - VAUXHALL/MONARO (VY, VZ)/5.7/2004.03-2005.07/LS1 5665 Petrol 285 kW 387 BHP (2004.03 - 2005.07) , \n - VAUXHALL/MONARO (VY, VZ)/5.7/2004.01-2004.10/Y 57 XE 5665 Petrol 245 kW 333 BHP (2004.01 - 2004.10) , \n - VAUXHALL/MONARO (VY, VZ)/5.7/2005.01-2007.04/Y 57 XE 5665 Petrol 257 kW 349 BHP (2005.01 - 2007.04) ,
