Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm KMZ23530-2B

Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm KMZ23530-2B

KMZ23530-2B

17.201,00 DKK
17.201,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.

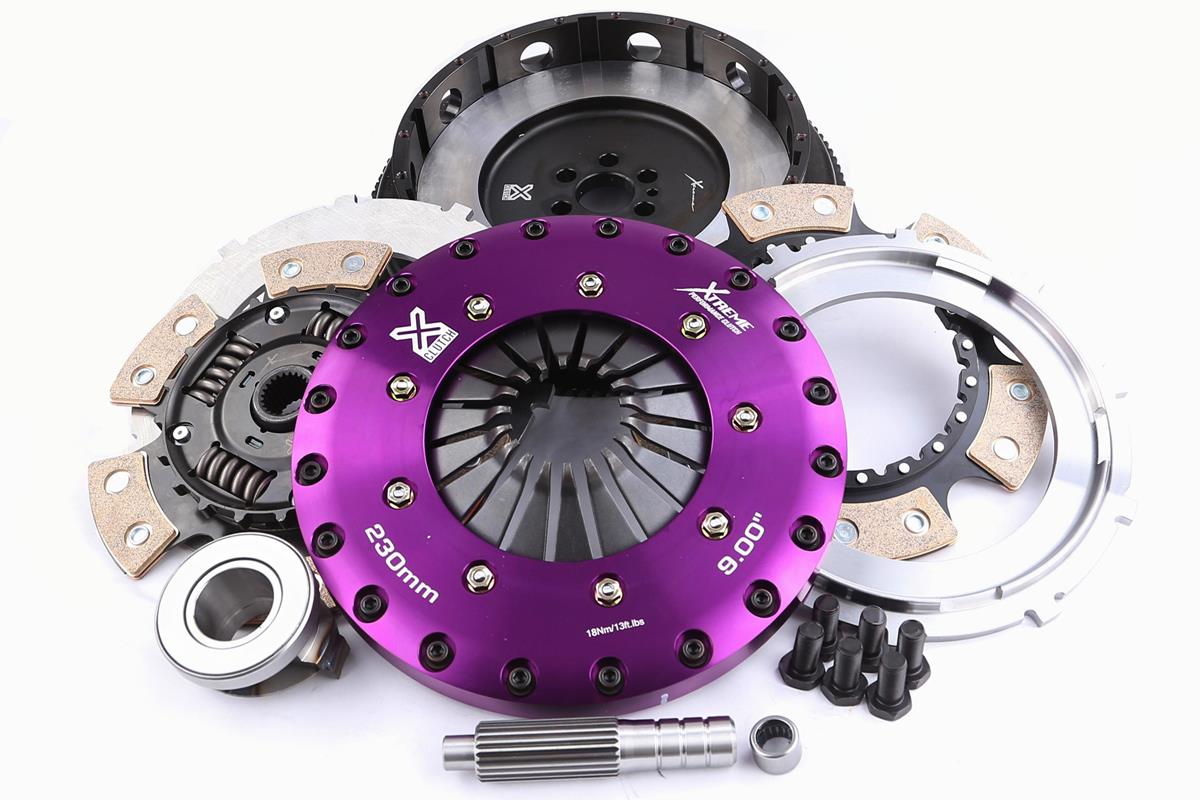

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1000Nm 1000Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")
\n

Applications: - MAZDA/3 (BK)/2.3 DiSi Turbo MPS (BK3P)/2006.06-2009.06/L3YH 2261 Petrol 184 kW 250 BHP (2006.06 - 2009.06) , \n - MAZDA/3 (BK)/2.3 MPS Turbo (BK14)/2006.12-2009.06/L3M6 2261 Petrol 191 kW 260 BHP (2006.12 - 2009.06) , \n - MAZDA/3 (BL)/2.3 MPS Turbo (BL14)/2008.12-2014.09/L3Y7 2261 Petrol 191 kW 260 BHP (2008.12 - 2014.09) , \n - MAZDA/6 sedan (GG)/2.3 MPS Turbo (GG3P)/2005.12-2007.08/L3KG 2261 Petrol 191 kW 260 BHP (2005.12 - 2007.08) , \n - MAZDA/CX-7 (ER)/2.3 MZR DISI Turbo AWD (ER3P)/2007.10-2009.08/L3-VDT 2261 Petrol 190 kW 258 BHP (2007.10 - 2009.08) , \n - MAZDA/CX-7 (ER)/2.3 MZR DISI Turbo AWD (ER3P)/2009.06-2013.03/L3-VDT 2261 Petrol 191 kW 260 BHP (2009.06 - 2013.03) , \n - MAZDA/CX-7 (ER)/2.5 MZR (ER10L)/2009.07-2013.03/L5-VE 2488 Petrol 120 kW 163 BHP (2009.07 - 2013.03) ,
