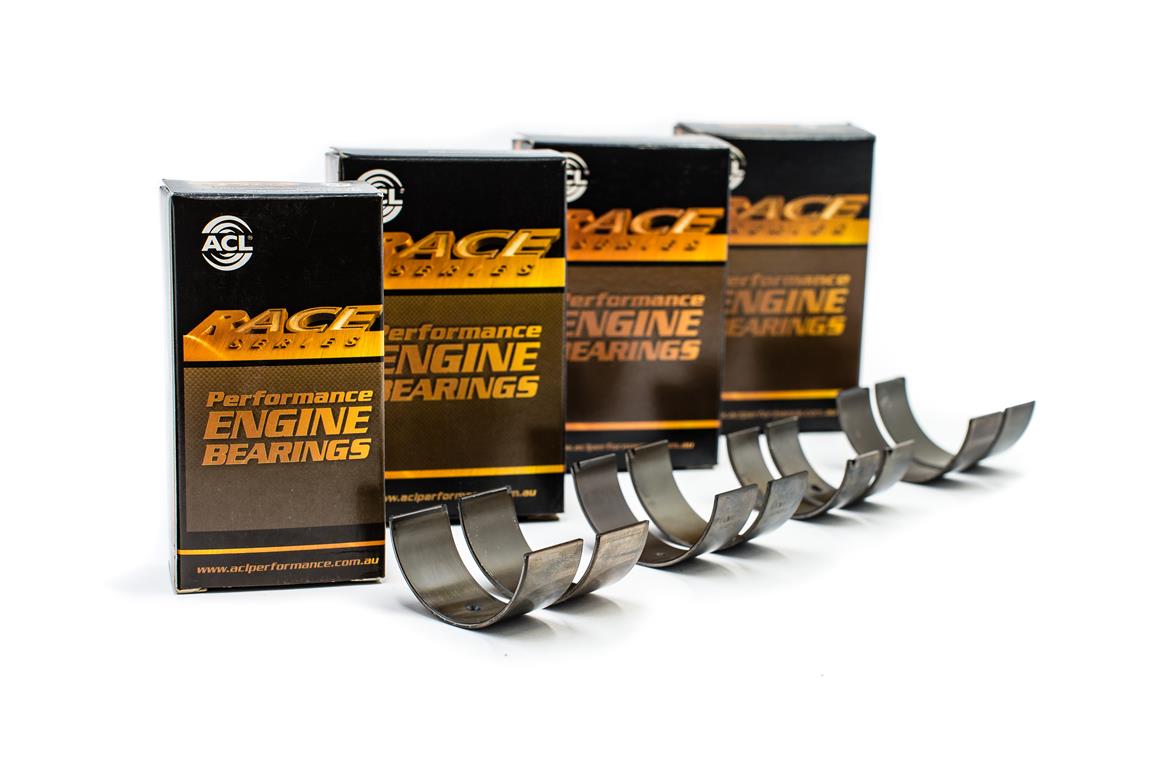

4B1293HX - Con rod bearing set (ACL Race Series) with 0.025mm (0.001”) extra clearance

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Biltilpasning pr. variant

• 4B1293HX-STD: Hyundai/Genesis, Sonata, Kia Optima, Sportage/DOHC 16v Turbo/G4KF (Theta II)

  Hyundai/GRANDEUR (HG)/2.4 16V/G4KE

  Hyundai/GRANDEUR (TG)/2.4/G4KC

  Hyundai/ix35 (LM, EL, ELH)/2.0 CVVT AWD/G4KD

  Hyundai/ix35 (LM, EL, ELH)/2.0 CVVT/G4KD

  Hyundai/ix35 (LM, EL, ELH)/2.0/G4KD

  Hyundai/ix35 (LM, EL, ELH)/2.0 4WD/G4KD

  Hyundai/ix35 (LM, EL, ELH)/2.4 DCVVT-I 4WD/G4KE

  Hyundai/ix35 (LM, EL, ELH)/2.4 4WD/G4KE

  Hyundai/SANTA FÉ II (CM)/2.4 4x4/G4KE

  Hyundai/SANTA FÉ II (CM)/2.4/G4KE

  Hyundai/SANTA FÉ III (DM, DMA)/2.4 CCVT AWD/G4KE

  Hyundai/SANTA FÉ III (DM, DMA)/2.4 CCVT/G4KE

  Hyundai/SANTA FE IV (TM, TMA)/2.4 AWD/G4KE

  Hyundai/SONATA V (NF)/2.0 VVTi GLS/G4KD

  Hyundai/SONATA V (NF)/2.0 GLSI/G4KD

  Hyundai/SONATA V (NF)/2.4/G4KC

  Hyundai/SONATA VI (YF)/2.0 i/G4KD

  Hyundai/SONATA VI (YF)/2.4/G4KC

  Kia/CERATO II (TD)/2.0/G4KD

  Kia/MAGENTIS II (MG)/2.0/G4KD

  Kia/OPTIMA (FSGDS6B)/2.0 CVVL/G4KD

  Kia/OPTIMA (FSGDS6B)/2.0/G4KD

  Kia/OPTIMA (FSGDS6B)/2.4/G4KC

  Kia/OPTIMA (FSGDS6B)/2.4 CVVT/G4KE

  Kia/OPTIMA (JF)/2.4 MPi/G4KE

  Kia/SORENTO II (XM)/2.4 CVVT 4WD/G4KE

  Kia/SORENTO II (XM)/2.4 CVVT/G4KE

  Kia/SORENTO II SUV (XM)/CVVT/G4KE

  Kia/SORENTO II SUV (XM)/CVVT 4WD/G4KE

  Kia/SORENTO III (UM)/2.4/G4KE

  Kia/SORENTO III (UM)/2.4 4WD/G4KE

  Kia/SPORTAGE II (JE_, KM)/2.0/G4KD

  Kia/SPORTAGE III (SL)/2.0 CVVT/G4KD

  Kia/SPORTAGE III (SL)/2.0 CVVT AWD/G4KD
