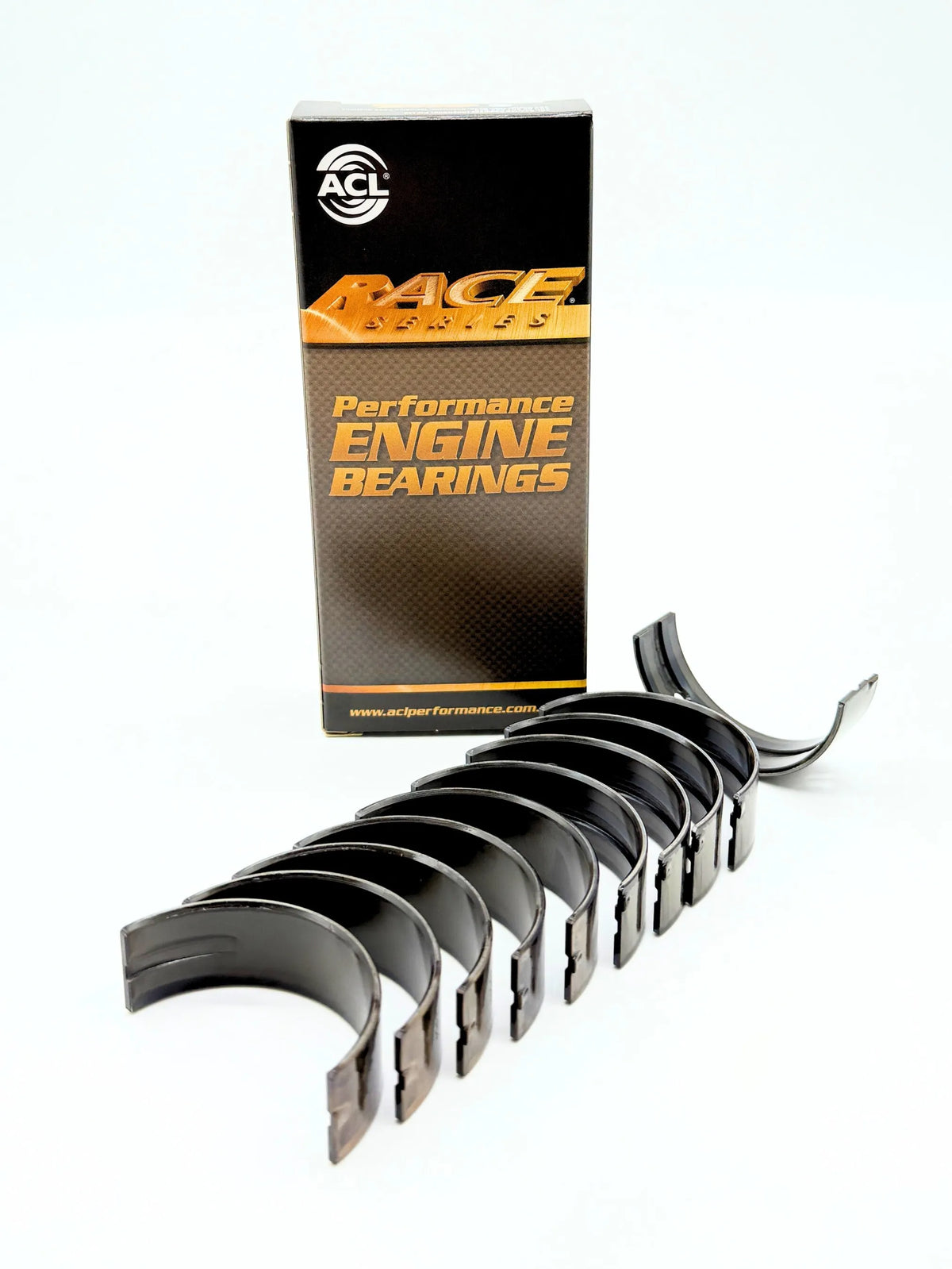

5M1959HX - Main bearing set (ACL Race Series) with 0.025mm (0.001”) extra clearance

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Biltilpasning pr. variant

• 5M1959HX-STD: Honda/Civic IV Saloon (ED, EF)/1.6 16V 4x4/B16A1

  Honda/CRX II (ED, EE)/1.6 16V/B16A1

  Honda/Civic IV Hatchback (EC, ED, EE, EF)/1.6 16V/B16A1

  Honda/Civic V Saloon (EG, EH)/1.6 16V/B16A2

  Honda/Civic VI Hatchback (EJ, EK)/1.6 16V/B16A2

  Honda/Civic VI Saloon (EJ, EK, SO)/1.6 16V/B16A2

  Honda/Civic VI Fastback (MA, MB)/1.6 16V/B16A2

  Honda/Civic V Hatchback (EG, EH)/1.6 16V/B16A2

  Honda/CRX III (EH, EG)/1.6 16V/B16A2

  Honda/Civic VI Coupe (EJ, EM1)/1.6 16V/B16A2

  Honda/CRX III (EH, EG)/1.6 16V/B16A3

  Honda/Civic VI Hatchback (EJ, EK)/1.6 16V/B16A4

  Honda/Civic VI Saloon (EJ, EK, SO)/1.6 16V/B16A6

  Acura/Integra liftback/1.7 Vtec/B17A1

  Acura/Integra liftback/1.8 16V/B18A1

  Acura/Integra sedan/1.8 16V/B18A1

  Honda/Integra liftback (DA)/1.8 16V/B18A1

  Acura/Integra liftback/1.8 16V/B18B1

  Acura/Integra sedan/1.8 16V/B18B1

  Honda/Integra liftback (DA)/1.8 16V/B18B1

  Honda/Integra coupe (DC)/1.8 16V/B18B1

  Honda/Integra coupe (DC)/1.8 16V/B18B2

  Honda/Integra sedan (DB6, DB7, DB8, DB9)/1.8 16V/B18B2

  Honda/CR-V I (RD)/2.0 16V 4WD/B20B3

  Honda/Orthia / Partner (EL_, EY_)/2.0 16V/B20B8

  Honda/Orthia / Partner (EL_, EY_)/2.0 16V 4WD/B20B8

  Honda/Integra coupe (DC)/1.8 Type-R (DC2)/B18C1

  Honda/Integra coupe (DC)/1.8 VTiR (DC2)/B18C1

  Honda/Integra coupe (DC)/1.8 VTiR (DC2)/B18C2

  Acura/Integra liftback/1.8/B18C5

  Honda/Integra coupe (DC)/1.8 Type-R (DC2)/B18C7

  Honda/Integra sedan (DA5, DA6, DA7, DA8, DA9, DB1, DB2) /1.8 (DB1)/B18A2

  Honda/Accord VI Tourer (CM, CN)/2.4 Vtec/K24A1

  Honda/CR-V II (RD_)/2.4 Vtec/K24A1

  Honda/CR-V II (RD_)/2.4 Vtec 4WD/K24A1

  Honda/CR-V III (RE_)/2.4 Vtec/K24A1

  Honda/CR-V III (RE_)/2.4 Vtec 4WD/K24A1

  Honda/CR-V IV (RM_)/2.4 Vtec/K24A1

  Honda/CR-V IV (RM_)/2.4 Vtec 4WD/K24A1

  Honda/Elyssion (RR)/2.4 Vtec/K24A1

  Honda/Elyssion (RR)/2.4 Vtec 4WD/K24A1

  Honda/Accord VII (CL, CN)/2.4 Vtec/K24A3

  Honda/Accord VII Tourer (CM, CN)/2.4 Vtec/K24A3

  Honda/FR-V (BE)/2.4 Vtec/K24A3

  Honda/Odyssey (RL3, RL4, RB)/2.4 Vtec/K24A3

  Honda/Stepwgn (DBA-RG_)/2.4 Vtec/K24A3

  Honda/Stepwgn (DBA-RG_)/2.4 Vtec 4WD/K24A3

  Honda/Stepwgn (LA-RF_, UA-RF)/2.4 Vtec/K24A3

  Honda/Accord Coupe (CM)/2.4 Vtec/K24A4

  Honda/Accord VII (CL, CN)/2.4 Vtec/K24A4

  Honda/Accord VII (CM)/2.4 Vtec/K24A4

  Honda/Element (YH)/2.4 Vtec/K24A4

  Honda/Element (YH)/2.4 Vtec 4WD/K24A4

  Honda/Odyssey (RL1, RA6, RA_)/2.4 Vtec/K24A4

  Honda/Accord Coupe (CM)/2.4 Vtec/K24A8

  Honda/Accord VII (CL, CN)/2.4 Vtec/K24A8

  Honda/Accord VII (CM)/2.4 Vtec/K24A8

  Honda/Element (YH)/2.4 Vtec/K24A8

  Honda/Element (YH)/2.4 Vtec 4WD/K24A8

  Honda/CR-V III (RE_)/2.4 Vtec/K24Z1

  Honda/CR-V III (RE_)/2.4 Vtec 4WD/K24Z1

  Honda/CR-V I (RD)/2.0 16V/B20B4

  Honda/CR-V I (RD)/2.0 16V/B20Z2

  Honda/CR-V I (RD)/2.0 16V 4WD/B20Z2

  Honda/Civic VI Hatchback (EJ, EK)/1.6 VTEC Type-R (EK9)/B16B

  Acura/RSX coupe (DC_)/2.0 16V/K20A3

  Honda/Civic VII Hatchback (EU, EP, EV)/2.0 Sport/K20A3

  Honda/Civic VII Sedan (ES, ET)/2.0 16V/K20A3

  Honda/Integra Coupe (DC5)/2.0 16V/K20A3

  Honda/Civic VIII Sedan (FD, FA)/2.0 16V/K20A3
