Davies Craig

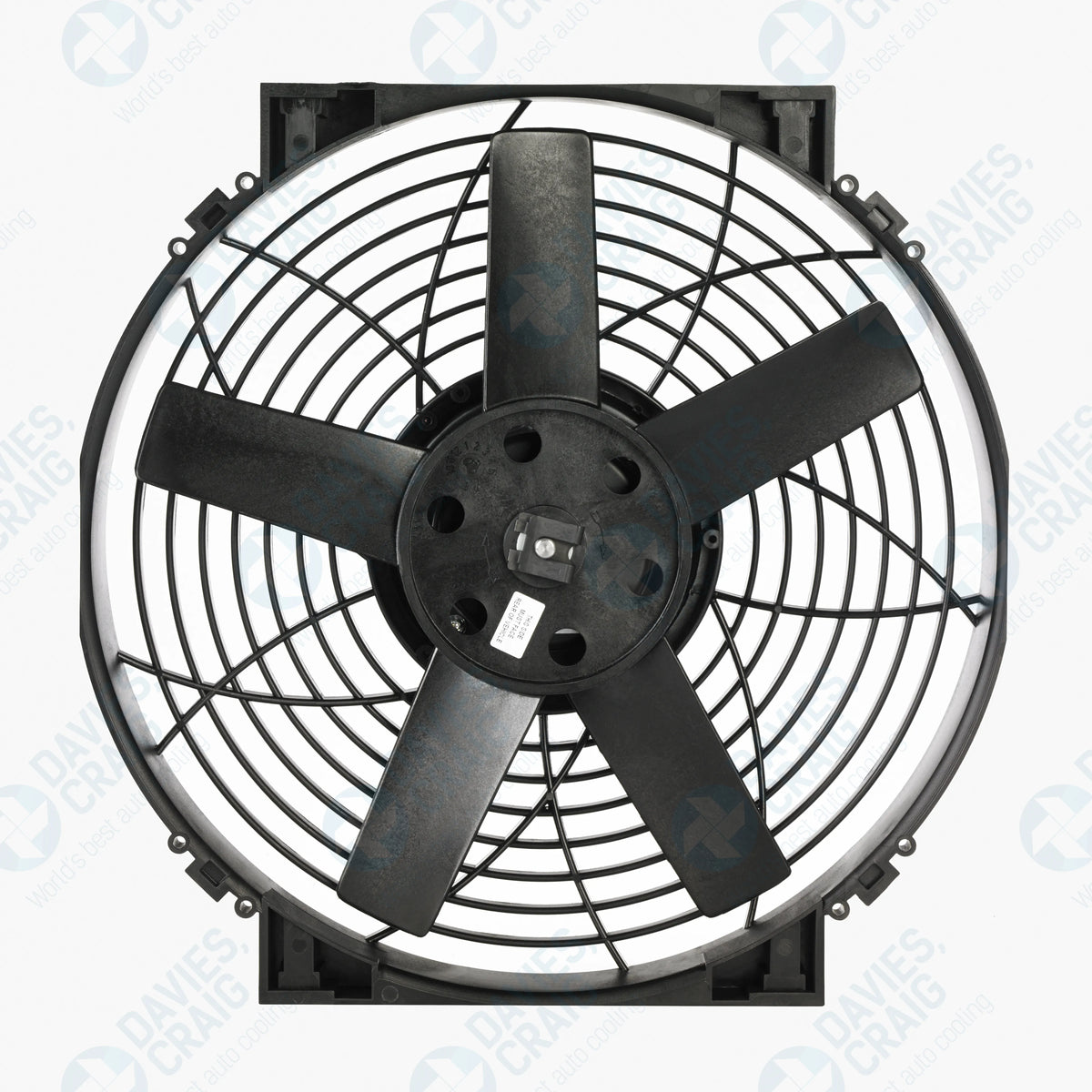

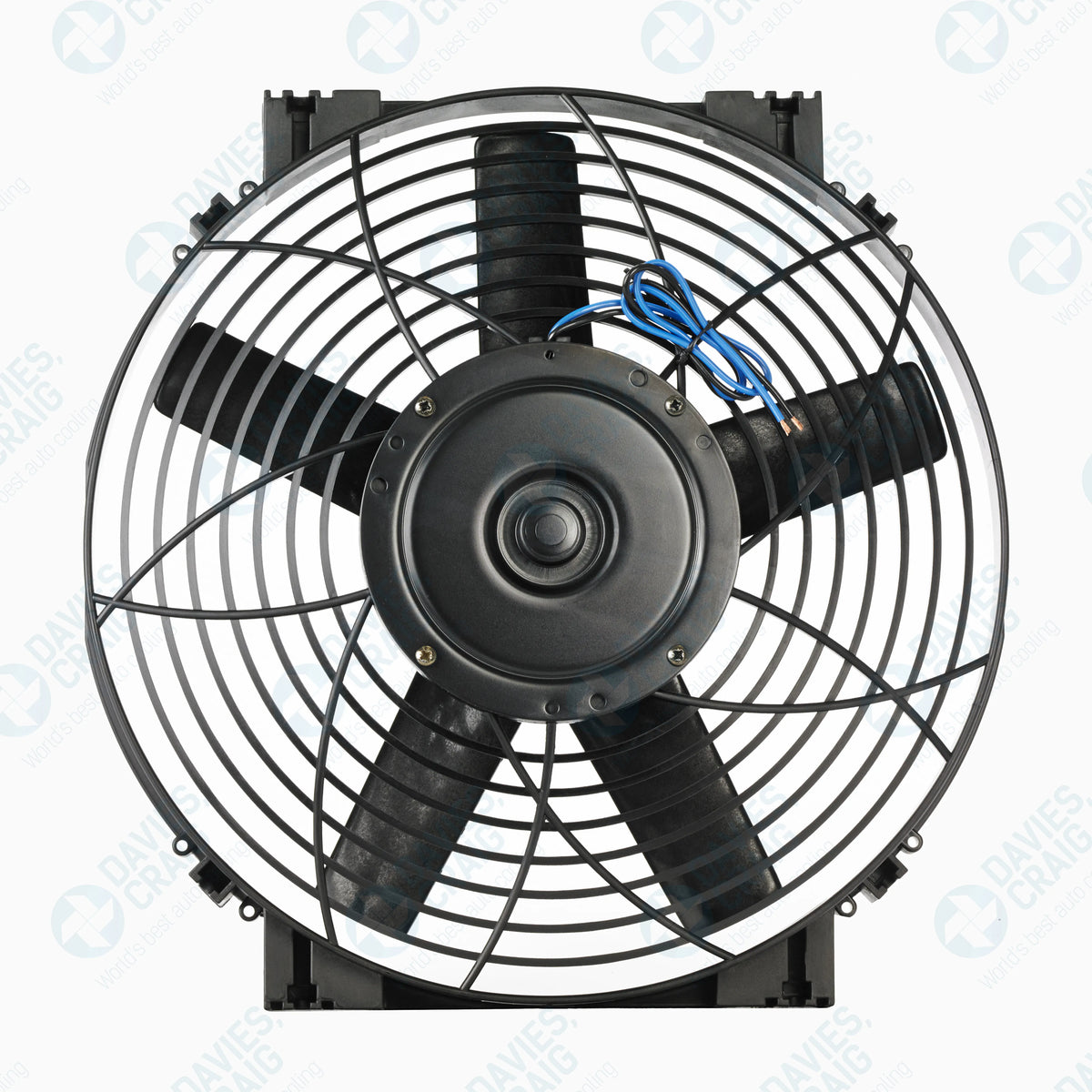

DC0165 - 14" Thermatic® Electric Fan - Slimline (24V)

DC0165 - 14" Thermatic® Electric Fan - Slimline (24V)

DC0165

984,00 DKK
984,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.
14" SLIMLINE THERMATIC® ELECTRIC FAN (24V)
Part DC0165

All Davies Craig Thermatic® Fans are packaged with fan assembly (motor, fan blade, shroud and mounting feet). It provides, constant or variable air flow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow. Suitable for use as:

  Radiator cooling fans
  Air conditioner condenser fans
  Transmission and engine oil cooler fans

Set up for UPSTREAM / PUSHER applications from the factory.

Technical data & Contents
SPECIFICATIONS
Airflow 1021 CFM
Max Current 11.0A (12V) / 5.5A (24 Volt)
Weight 1.5 kg (3.3 lb)

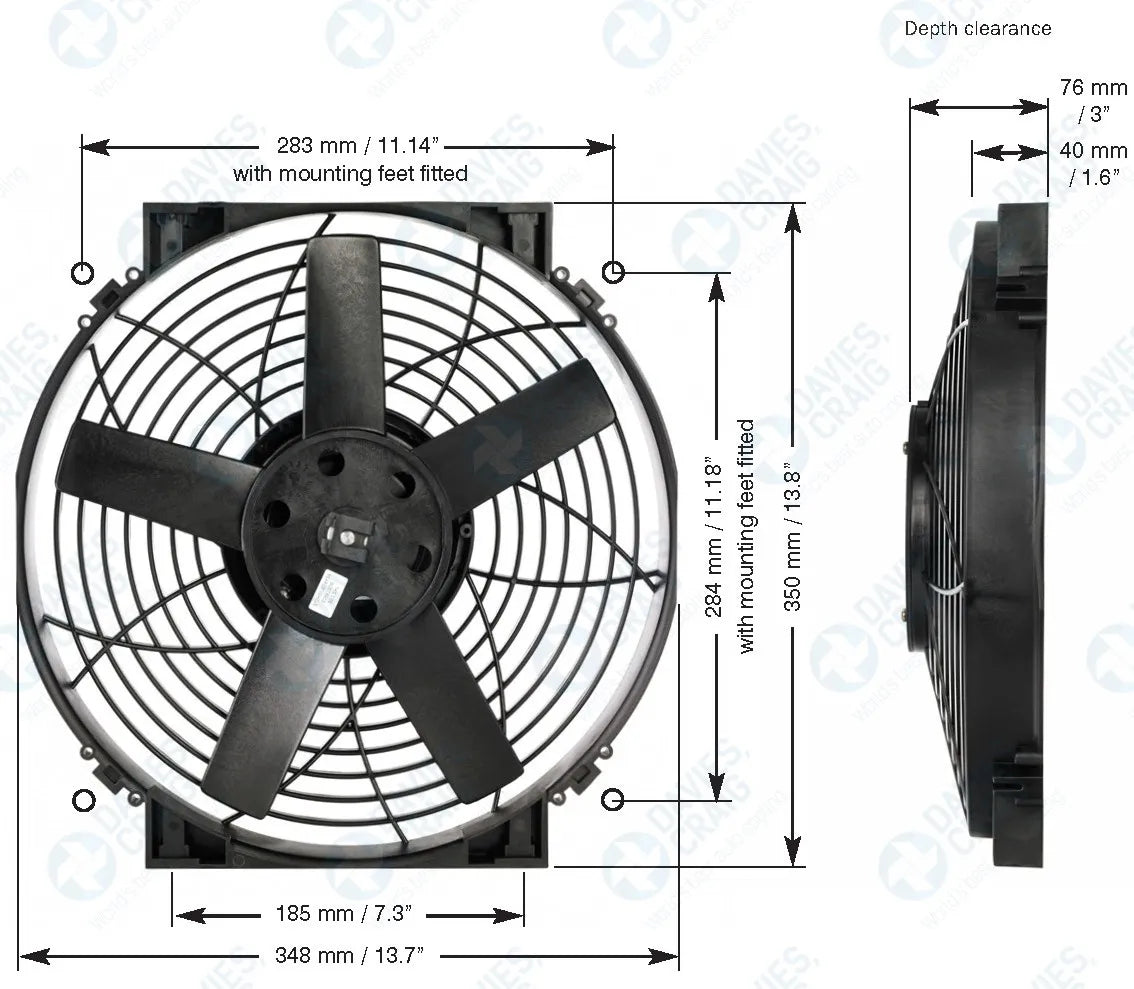

Dimensions 350h x 348w x 76d mm
COMPONENTS

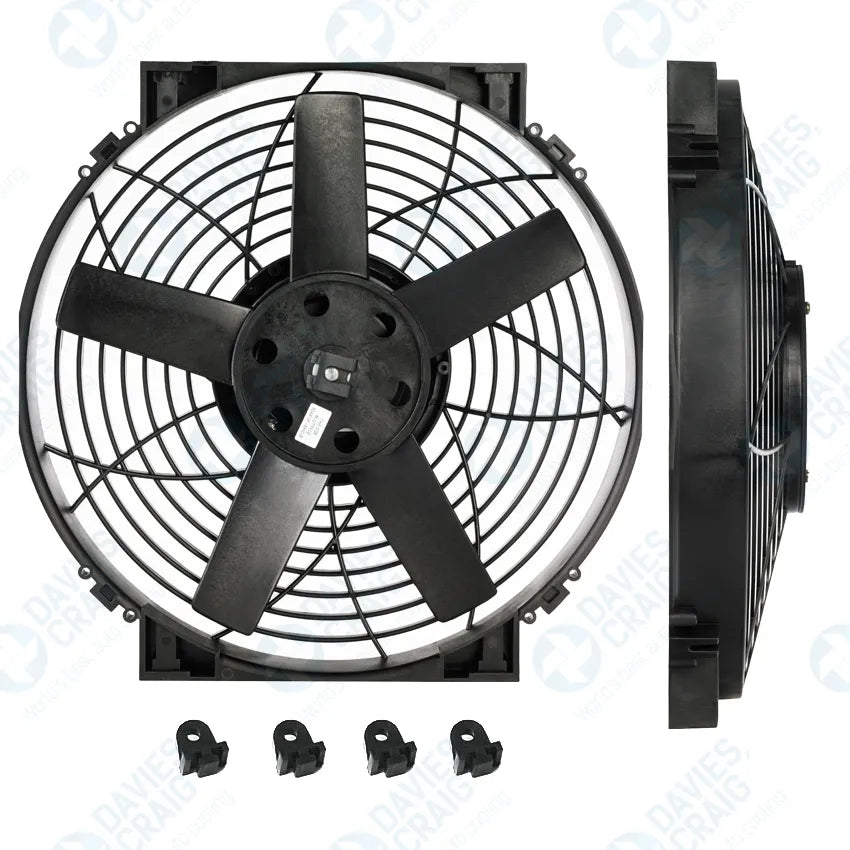

1 14" Slimline Thermatic® (24V) Electric Fan
4 Mounting feet

Universal Fan Fitting Kit & Control Options

Mounting Hardware (Sold Separately)

  • Quick Fit Kit: Part DC0579
  • Mounting Hardware: Part DC0578
  • Dual Fan Mounting Kit: Part DC1002
  • Bracket Mounting Kits: Parts DC1000, DC1001, DC1002, DC1003

Control Mode Interface

  • Digital Switches (12V & 24V):
    DC0444, DC0445, DC0448, DC0435, DC0438, DC0500
  • Mechanical Switches:
    DC0401, DC0404, DC0400
THERMATIC® / ELECTRIC FAN RANGE
Thermatic® / Electric
Fan Size 		Part DC Airflow Max Current Weight Height
(mm) 		Width
(mm) 		Depth
(mm)
12V 24V 12V 24V
12” Thermatic®
Electric Fan 		DC0135 DC0136 400 CFM
680 m3/h 		400 CFM
680 m3/h 		5A (12V)
2.4A (24V)		 0.88 kg
1.9 lb		 213mm
(8.4")		 213mm
(8.4")		 55mm
(2.2")
Brushless 8” Thermatic®
Electric Fan 		DC0121 DC0122 450 CFM
765 m3/h 		470 CFM
799 m3/h 		7A (12V)
5A (24V)		 1.27 kg
2.8 lb		 213mm
(8.4")		 213mm
(8.4")		 66mm
(2.6")
9” Thermatic®
Electric Fan 		DC0160 DC0161 591 CFM
1004 m3/h 		591 CFM
1004 m3/h 		6.5A (12V)
3.25A (24V)		 0.93 kg
2 lb		 240mm
(9.5")		 246mm
(9.7")		 57mm
(2.2")
Brushless 9” Thermatic®
Electric Fan 		DC0123 DC0124 788 CFM
1340 m3/h 		850 CFM
1444 m3/h 		11A (12V)
9A (24V)		 1.33 kg
2.9 lb		 240mm
(9.5")		 246mm
(9.7")		 68mm
(2.7")
10” Slimline Thermatic®
Electric Fan 		DC0147 DC0148 696 CFM
1182 m3/h 		696 CFM
1182 m3/h 		7A (12V)
3.5A (24V)		 1.13 kg
2.5 lb		 276mm
(10.9")		 272mm
(10.7")		 55mm
(2.2")
10" High Power Thermatic®
Electric Fan 		DC0150 DC0151 1000 CFM
1699 m3/h 		1000 CFM
1699 m3/h 		19A (12V)
10A (24V)		 1.5 kg
3.3 lb		 276mm
(10.9")		 272mm
(10.7")		 84mm
(3.3")
Brushless 10" High Power
Thermatic® Electric Fan 		DC0125 DC0126 1020 CFM
1736 m3/h 		1075 CFM
1826 m3/h 		15A (12V)
10A (24V)		 1.4 kg
3 lb		 276mm
(10.9")		 272mm
(10.7")		 67mm
(2.6")
12” Thermatic®
Electric Fan 		DC0162 DC0163 847 CFM
1439 m3/h 		847 CFM
1439 m3/h 		9.0A (12V)
4.5A (24V)		 1.45 kg
3.2 lb		 293mm
(11.5")		 293mm
(11.5")		 58mm
(2.3")
12" High Power Thermatic®
Electric Fan 		DC0155 DC0156 1250 CFM
2124 m3/h 		1250 CFM
2124 m3/h 		22A (12V)
12A (24V)		 1.6 kg
3.5 lb		 293mm
(11.5")		 293mm
(11.5")		 86mm
(3.4")
Brushless 12" High Power
Thermatic® Electric Fan 		DC0127 DC0128 1295 CFM
2200 m3/h 		1360 CFM
2311 m3/h 		18A (12V)
10.5A (24V)		 1.5 kg
3.3 lb		 293mm
(11.5")		 293mm
(11.5")		 69mm
(2.7")
14” Slimline Thermatic®
Electric Fan 		DC0164 DC0165 1021 CFM
1735 m3/h 		1021 CFM
1735 m3/h 		11.0A (12V)
5.5A (24V)		 1.5 kg
3.3 lb		 351mm
(13.8")		 348mm
(13.7")		 76mm
(3")
14” High Power Thermatic®
Electric Fan 		DC0107 DC0108 1500 CFM
2548 m3/h 		1500 CFM
2548 m3/h 		13A (12V)
6.5A (24V)		 2.5 kg
5.5 lb		 351mm
(13.8")		 348mm
(13.7")		 94mm
(3.7")
Brushless 14" High Power
Thermatic® Electric Fan 		DC0129 DC0130 1900 CFM
3228 m3/h 		1930 CFM
3279 m3/h 		29A (12V)
14.5A (24V)		 2.5 kg
5.5 lb		 351mm
(13.8")		 348mm
(13.7")		 94mm
(3.7")
16” Thermatic®
Electric Fan 		DC0166 DC0172 2120 CFM
3602 m3/h 		2120 CFM
3602 m3/h 		19A (12V)
9.5A (24V)		 2.6 kg
5.7 lb		 404mm
(15.9")		 425mm
(16.5")		 97mm
(3.8")
Brushless 16" High Power
Thermatic® Electric Fan 		DC0131 DC0132 2580 CFM
4383 m3/h 		2630 CFM
4468 m3/h 		31A (12V)
15.5A (24V)		 2.6 kg
5.7 lb		 404mm
(15.9")		 425mm
(16.5")		 98mm
(3.8")
