Davies Craig

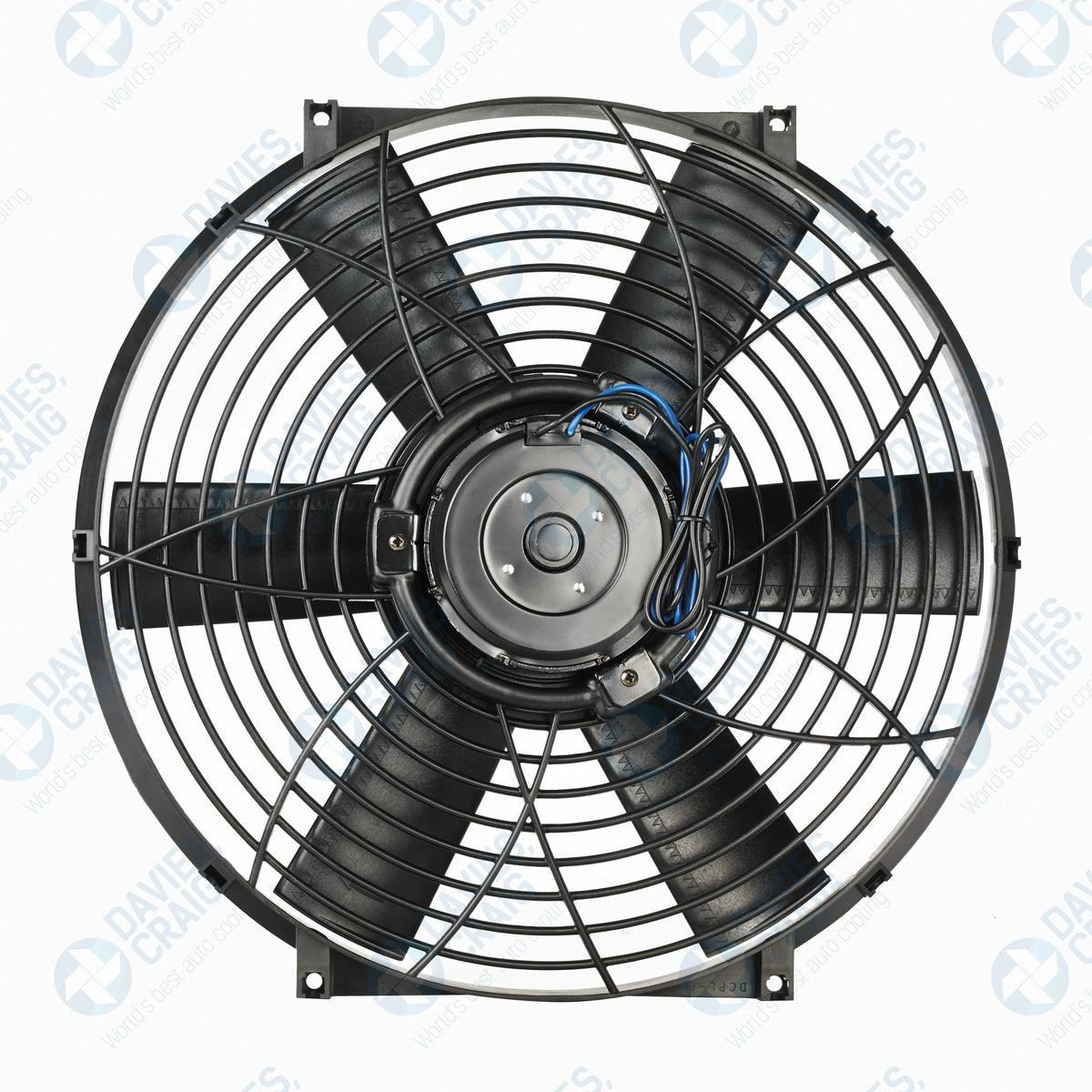

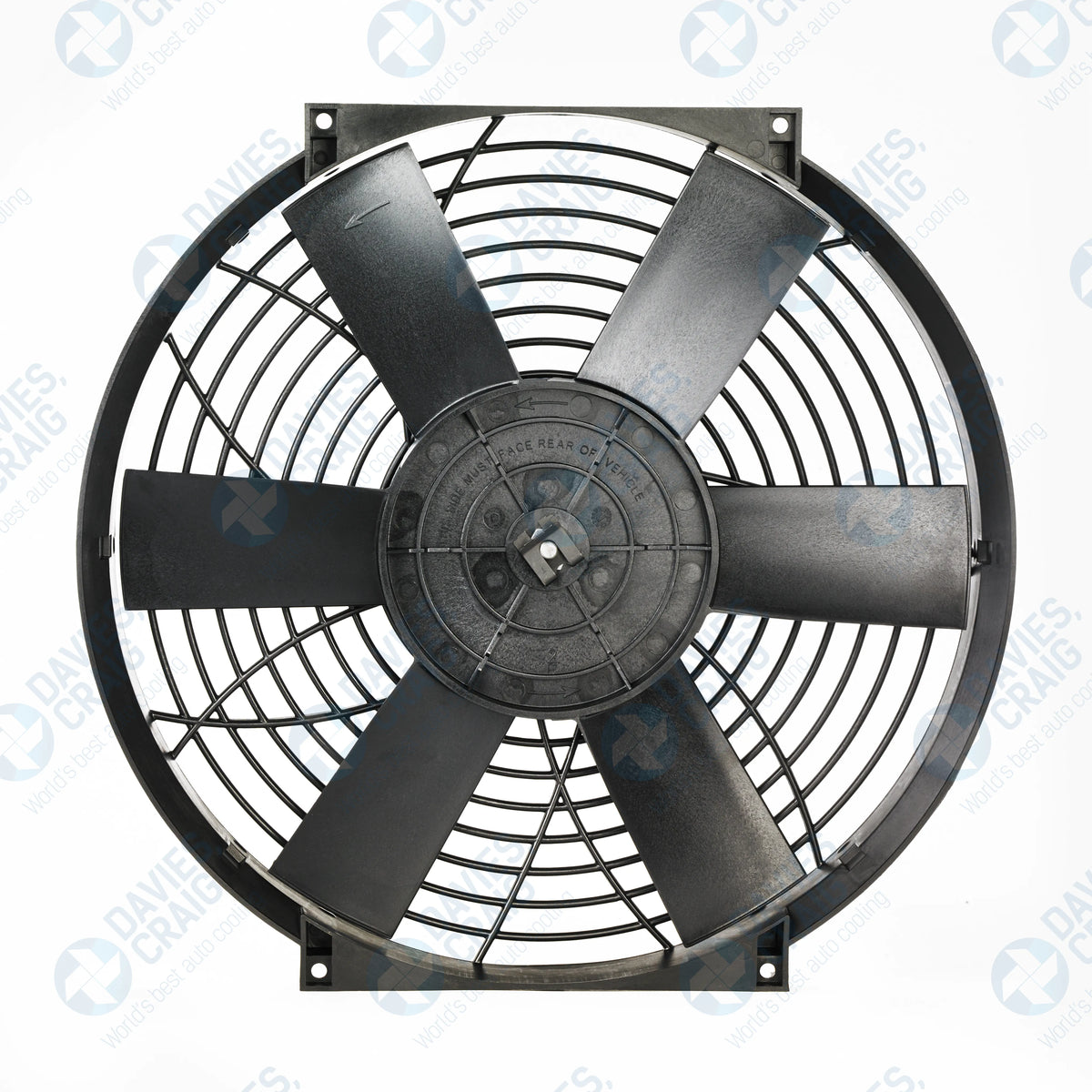

DC0172 - 16" Thermatic® Electric Fan (24V)

DC0172 - 16" Thermatic® Electric Fan (24V)

DC0172

1.418,00 DKK
1.418,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.
16" THERMATIC® ELECTRIC FAN (24V)
Part DC0172

All Davies Craig Thermatic® Fans are packaged with fan assembly (motor, fan blade, shroud and mounting feet). Suitable for use as:

  Radiator cooling fans
  Air conditioner condenser fans
  Transmission and engine oil cooler fans

Provides constant or variable air flow, increased fuel economy, and improved A/C performance. Features low profile design and fully reversible blades/polarity for bi-directional air flow.

Set up for UPSTREAM / PUSHER applications from the factory.

Technical data & Contents
SPECIFICATIONS
Airflow 2120 CFM
Max Current 9.5A
Weight 3.0 kg (6.6 lb)

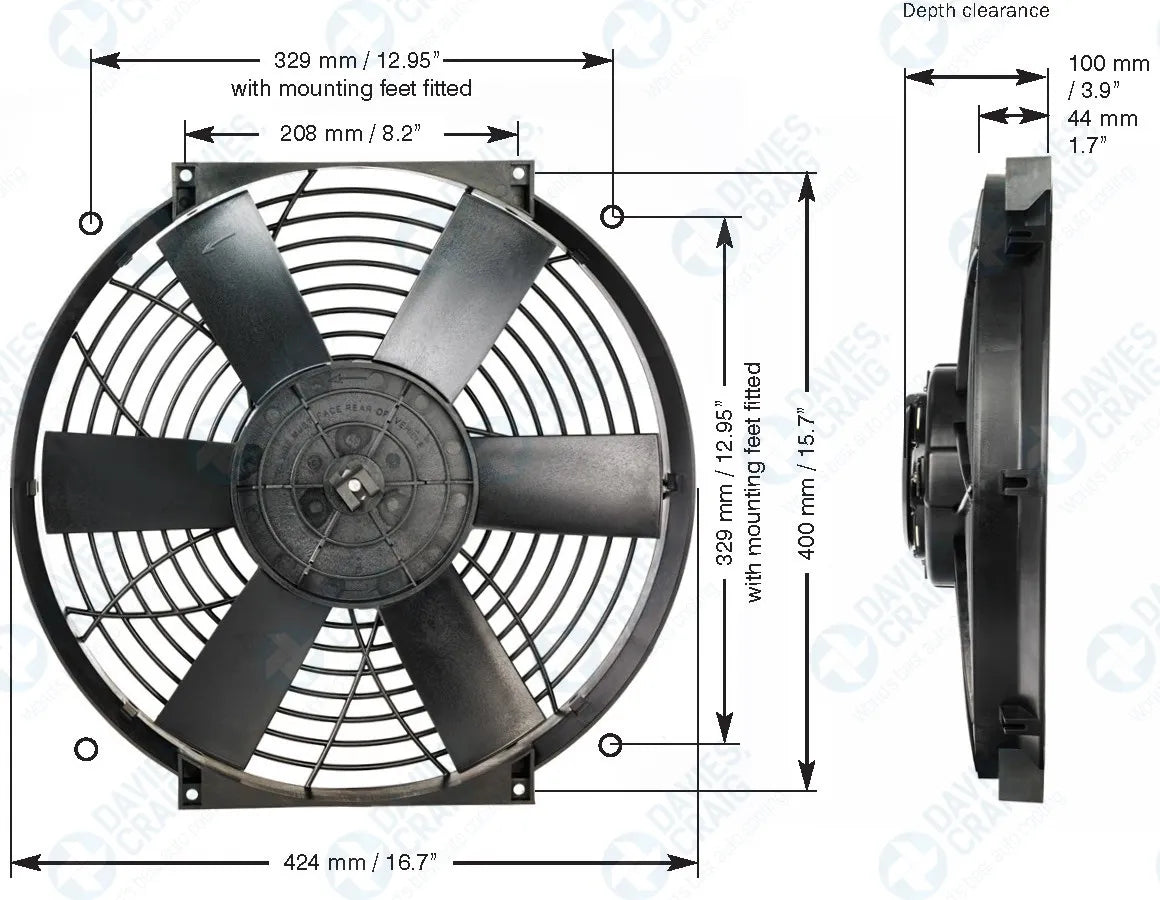

Dimensions 400h x 424w x 97d mm

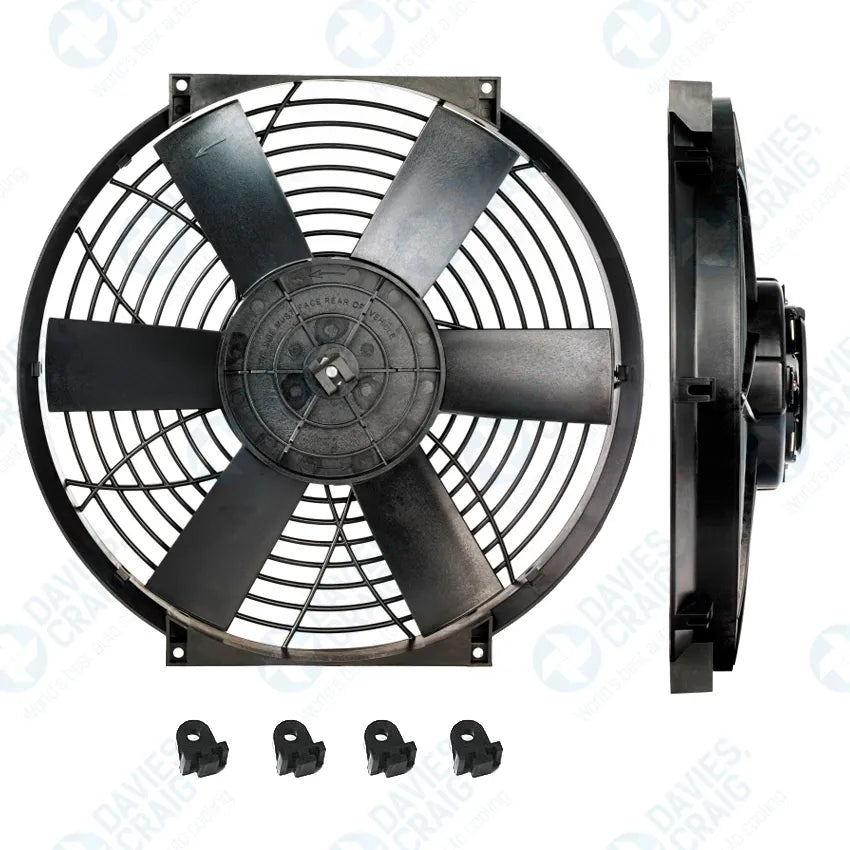

COMPONENTS
1 16" Thermatic® Electric Fan (24V)
4 Mounting feet

Universal Fan Fitting Kit & Control Options

Mounting Hardware (Sold Separately)

  • Quick Fit Kit: Part DC0579
  • Mounting Hardware: Part DC0578
  • Dual Fan Mounting Kit: Part DC1002
  • Bracket Mounting Kits: Parts DC1000, DC1001, DC1002, DC1003

Control Mode Interface

  • Digital Switches (12V & 24V):
    DC0444, DC0445, DC0448, DC0435, DC0438, DC0500
  • Mechanical Switches:
    DC0401, DC0404, DC0400
THERMATIC® / ELECTRIC FAN RANGE
Thermatic® / Electric
Fan Size 		Part DC Airflow Max Current Weight Height
(mm) 		Width
(mm) 		Depth
(mm)
12V 24V 12V 24V
12” Thermatic®
Electric Fan 		DC0135 DC0136 400 CFM
680 m3/h 		400 CFM
680 m3/h 		5A (12V)
2.4A (24V)		 0.88 kg
1.9 lb		 213mm
(8.4")		 213mm
(8.4")		 55mm
(2.2")
Brushless 8” Thermatic®
Electric Fan 		DC0121 DC0122 450 CFM
765 m3/h 		470 CFM
799 m3/h 		7A (12V)
5A (24V)		 1.27 kg
2.8 lb		 213mm
(8.4")		 213mm
(8.4")		 66mm
(2.6")
9” Thermatic®
Electric Fan 		DC0160 DC0161 591 CFM
1004 m3/h 		591 CFM
1004 m3/h 		6.5A (12V)
3.25A (24V)		 0.93 kg
2 lb		 240mm
(9.5")		 246mm
(9.7")		 57mm
(2.2")
Brushless 9” Thermatic®
Electric Fan 		DC0123 DC0124 788 CFM
1340 m3/h 		850 CFM
1444 m3/h 		11A (12V)
9A (24V)		 1.33 kg
2.9 lb		 240mm
(9.5")		 246mm
(9.7")		 68mm
(2.7")
10” Slimline Thermatic®
Electric Fan 		DC0147 DC0148 696 CFM
1182 m3/h 		696 CFM
1182 m3/h 		7A (12V)
3.5A (24V)		 1.13 kg
2.5 lb		 276mm
(10.9")		 272mm
(10.7")		 55mm
(2.2")
10" High Power Thermatic®
Electric Fan 		DC0150 DC0151 1000 CFM
1699 m3/h 		1000 CFM
1699 m3/h 		19A (12V)
10A (24V)		 1.5 kg
3.3 lb		 276mm
(10.9")		 272mm
(10.7")		 84mm
(3.3")
Brushless 10" High Power
Thermatic® Electric Fan 		DC0125 DC0126 1020 CFM
1736 m3/h 		1075 CFM
1826 m3/h 		15A (12V)
10A (24V)		 1.4 kg
3 lb		 276mm
(10.9")		 272mm
(10.7")		 67mm
(2.6")
12” Thermatic®
Electric Fan 		DC0162 DC0163 847 CFM
1439 m3/h 		847 CFM
1439 m3/h 		9.0A (12V)
4.5A (24V)		 1.45 kg
3.2 lb		 293mm
(11.5")		 293mm
(11.5")		 58mm
(2.3")
12" High Power Thermatic®
Electric Fan 		DC0155 DC0156 1250 CFM
2124 m3/h 		1250 CFM
2124 m3/h 		22A (12V)
12A (24V)		 1.6 kg
3.5 lb		 293mm
(11.5")		 293mm
(11.5")		 86mm
(3.4")
Brushless 12" High Power
Thermatic® Electric Fan 		DC0127 DC0128 1295 CFM
2200 m3/h 		1360 CFM
2311 m3/h 		18A (12V)
10.5A (24V)		 1.5 kg
3.3 lb		 293mm
(11.5")		 293mm
(11.5")		 69mm
(2.7")
14” Slimline Thermatic®
Electric Fan 		DC0164 DC0165 1021 CFM
1735 m3/h 		1021 CFM
1735 m3/h 		11.0A (12V)
5.5A (24V)		 1.5 kg
3.3 lb		 351mm
(13.8")		 348mm
(13.7")		 76mm
(3")
14” High Power Thermatic®
Electric Fan 		DC0107 DC0108 1500 CFM
2548 m3/h 		1500 CFM
2548 m3/h 		13A (12V)
6.5A (24V)		 2.5 kg
5.5 lb		 351mm
(13.8")		 348mm
(13.7")		 94mm
(3.7")
Brushless 14" High Power
Thermatic® Electric Fan 		DC0129 DC0130 1900 CFM
3228 m3/h 		1930 CFM
3279 m3/h 		29A (12V)
14.5A (24V)		 2.5 kg
5.5 lb		 351mm
(13.8")		 348mm
(13.7")		 94mm
(3.7")
16” Thermatic®
Electric Fan 		DC0166 DC0172 2120 CFM
3602 m3/h 		2120 CFM
3602 m3/h 		19A (12V)
9.5A (24V)		 2.6 kg
5.7 lb		 404mm
(15.9")		 425mm
(16.5")		 97mm
(3.8")
Brushless 16" High Power
Thermatic® Electric Fan 		DC0131 DC0132 2580 CFM
4383 m3/h 		2630 CFM
4468 m3/h 		31A (12V)
15.5A (24V)		 2.6 kg
5.7 lb		 404mm
(15.9")		 425mm
(16.5")		 98mm
(3.8")
