Davies Craig
DC8907 - EWP80 Combo - Remote Electric Water Pump & Controller (12V)
DC8907 - EWP80 Combo - Remote Electric Water Pump & Controller (12V)
SKU:DC8907
Normalpris
2.972,00 DKK
Normalpris
Udsalgspris
2.972,00 DKK
Stykpris
/
pr.
Inklusiv moms.
Levering beregnes ved betaling.
Tilgængelighed for afhentning kunne ikke indlæses
EWP®80 Combo Remote Electric Water Pump & Controller (12V)
** SUPERSEDED / DISCONTINUED **
Part #8907
This part has been discontinued. Please see the replacement options below:
| Discontinued Part # | Direct Replacement | Alternative Replacement | |
| 8105 (Pump Only) | #8106 | #8109 | |
| 8005 (Kit) | #8006 | #8009 | |
| 8907 (Controller Combo) | #8908 | #8919 |
The EWP®80 is available for purchase in following options:
- Pump Only (Part #8105)
- Kit (Part #8005)
- Combo with Controller (Part #8907)
Simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven mechanical water pump. It fits most vehicle engines up to two litres. By removing parasitic power losses, the EWP® can provide up to 10kW (13hp) of extra power and increased torque.

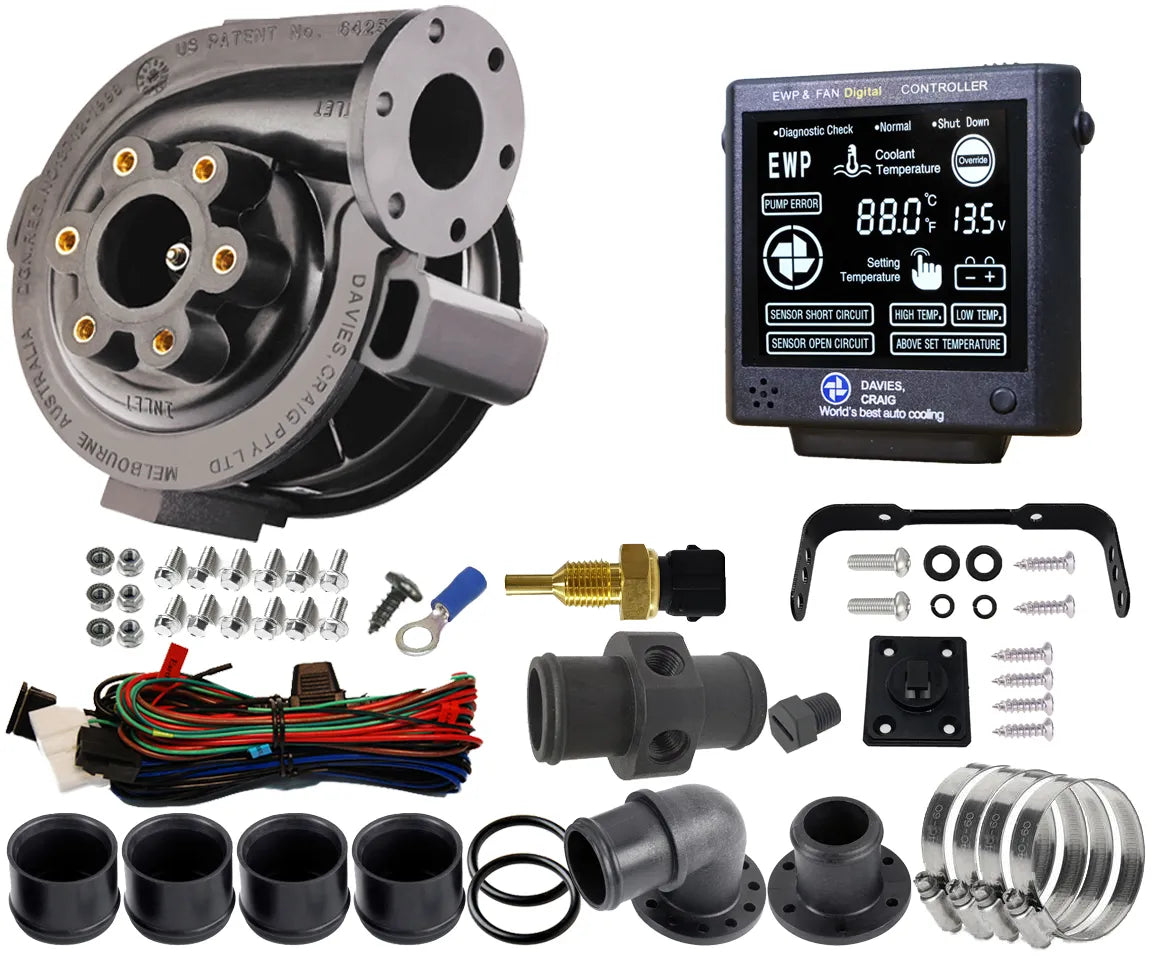

Combo contents
| Part description | Units |
|---|---|
| EWP®80 - Nylon 12V Assembly | 1 |
| Nylon Flange Adapter: 35mm Straight | 1 |
| Nylon Flange Adapter: 35mm 90° Elbow | 1 |
| Adapter - Rubber Sleeve - 3mm {1/8"} | 4 |
| HOSE CLAMP (WD9 40-60 W2) | 4 |
| EWP ADAPTER O-RING | 2 |
| Wiring Harness - EWP & Fan controller | 1 |
| EWP®/Fan Digital controller | 1 |
| Adaptor - Nylon - In Line, 35mm (2 x 1/4" NPT) | 1 |
| 1/4" NPT Nylon - Bung | 1 |
| U-Bracket & Mounting Plate (For #8002) | 1 |
| SCREW - SELF TAP 8X3/8 BZ | 1 |
| BLUE 6mm Ring Terminal | 1 |
| 5x12 Flanged Hex Set Screw Zinc Silver | 6 |
| 5x16 Flanged Hex Set Screw Zinc Silver | 6 |
| M5 FLANGE NUT ZINC SILVER | 6 |
| Sensor Thermal - coolant temp - ¼" NPT thread | 1 |
Technical specifications
| EWP80 NYLON PUMP | |
|---|---|
| Operating voltage | 3V DC to 15V DC |
| Maximum current | 7.5A @ 13V |
| Flow rate (max) | 90 L/min |
| Operating temp. | -40° to 120°C |
| Pump design | Clockwise centrifugal |
| Pump weight | 900 grams (2.0 lb) |
| Pump material | Nylon 66, 30% GF |
| Burst pressure | 350 kPa (50 psi) |
| LCD DIGITAL CONTROLLER | |
|---|---|
| Voltage range | 12V DC to 29V DC |
| Display LCD size | 64.6mm x 55.6mm |
| Maximum current | 12 Amps |
| Targeted temps | 40°C to 110°C |
| Fan cut-in temp. | +3°C above set |
| Overrun / Shutdown | 3 mins or -10°C |
| Dimensions | 98 x 95 x 25 mm |
| Weight | 100 grams |
Installation demonstration
EWP® installation options
Installing an EWP® as an AUXILIARY PUMP
- Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
- Remove the thermostat and drill two approx. 3mm holes in the thermostat plate.
EWP® installation – disabling Mechanical water pump
- Leaving mechanical water pump in place, install EWP into bottom hose and remove thermostat.
- Bypass water pump pulley by installing an appropriate length belt.
Disengaged mechanical water pump (recommended)
- Remove mechanical water pump and thermostat. Remove impeller from shaft.
- Retain pulley as idler. Block bypass passages and re-install.
Removed mechanical water pump (Ideal)
- Remove mechanical pump and thermostat from the engine.
- Install Davies Craig EWP® Header Adaptor or blanking plate.
- Install EWP® into the bottom radiator hose.
PRODUCT SELECTION GUIDE (click to expand)
|
PRODUCT SELECTION GUIDE Electric Water Pump (EWP®) |
|||||||
| APPLICATION |
PUMP MODEL |
PUMP ONLY | PUMP KIT | PUMP COMBO | |||
| 12V | 24V | 12V | 24V | 12V | 24V | ||
|
Engines up to 2.0L (Standard) |
EWP®80 |
#8105 Nylon #8106 Flange #8109 Barb |
N/A |
#8005 Nylon #8006 Flange #8009 Barb |
N/A |
#8907 Nylon #8908 Flange #8919 Barb |
N/A |
|
Engines up to 2.0L - 3.5L (Standard) |
EWP®115 |
#8125 Nylon #8140 Alloy |
#8126 Nylon #8141 Alloy |
#8025 Nylon #8040 Alloy |
N/A |
#8930 Nylon #8950 Alloy |
N/A |
|
Engines up to 3.5L - 5.0L (Standard) |
EWP®140 | #8180 Alloy | #8181 Alloy | #8080 Alloy | N/A | #8990 Alloy | N/A |
|
Engines 5.0L or greater (Standard) Modified Engines Supercharged/Turbo, Drag Racing, 4WD, Off Road, Drifting & Speedway |
EWP®150 |
#8160 Sliver #8165 Black |
#8161 Silver |
#8060 Silver #8065 Black |
#8061 Silver |
#8970 Silver #8975 Black |
#8971 Silver |
|
Intercooler (depending on capacity) |
EWP®115 |
#8125 Nylon #8140 Alloy |
#8126 Nylon #8141 Alloy |
#8025 Nylon #8040 Alloy |
N/A |
#8930 Nylon #8950 Alloy |
N/A |
| EWP®140 | #8180 Alloy | #8181 Alloy | #8080 Alloy | N/A | #8990 Alloy | N/A | |
| EWP®150 |
#8160 Sliver #8165 Black |
#8161 Silver |
#8060 Silver #8065 Black |
#8061 Silver |
#8970 Silver #8975 Black |
#8971 Silver | |
