DC9025 - EBP25 - Electric Booster Pump - Brushless 12V kit

DC9025 - EBP25 - Electric Booster Pump - Brushless 12V kit

DC9025

1.586,00 DKK
1.586,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.
EBP25 - ELECTRIC BOOSTER PUMP - BRUSHLESS 12V KIT
Part #9025

The EBP®25 Brushless Electric Booster Pump is compact, powerful, lightweight and offers;

  • Higher flow capacity: 30 L/min
  • Low current draw
  • Mounting bracket
  • Reverse polarity protection
  • Overvoltage protection
  • Automatic dry-running protection – no liquid in pump, pump will enter idle protection within 5 seconds. Auto shut-down after 120 seconds!

This unit defies its capacity “punching well above its size” with the exceptional features this smart brushless booster pump offers! The Brushless EBP®25 Electric Booster Pump complements the versatile Davies Craig EBP®23 and EBP®40 booster pumps which have drawn high acclaim nationally and globally.

Its compact design ensures versatility with the EBP® suited to a variety of automotive, solar, recreation, mobile home, marine, domestic and water reticulation applications. This booster pump can be used to enhance OEM engine cooling systems, improving coolant circulation especially in LPG conversions and greatly assisting the management of engine temperatures.

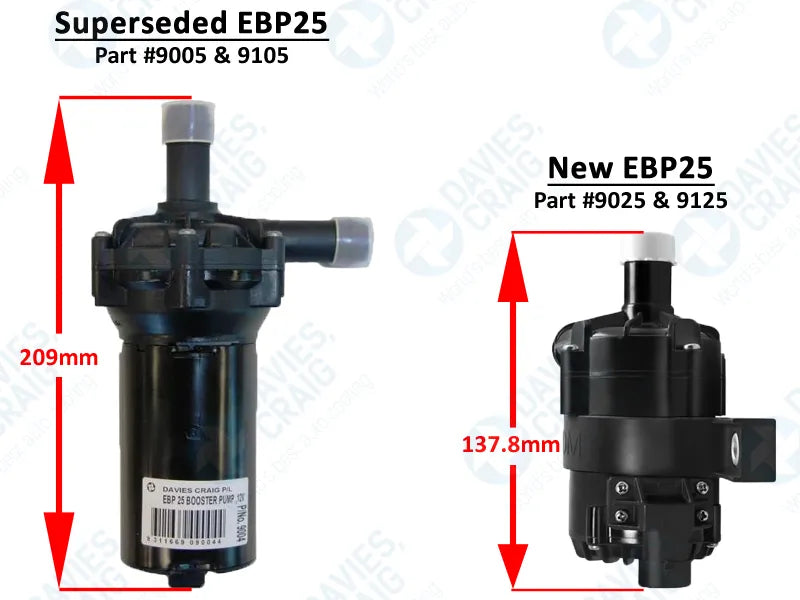

This EBP replaces the EBP25 - Brushed Motor, Parts Numbers 9005 & 9105.

  Turbocharger cooling
  Water-to-air intercooler
  LPG engine temperature management

EBP FLOW CURVES

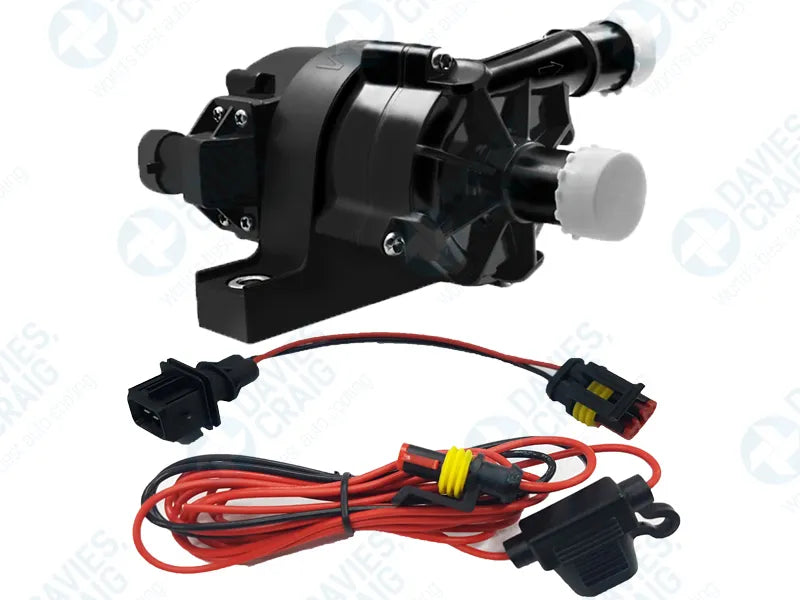

KIT CONTENTS
KIT CONTENTS
EBP25 - Electric Booster Pump 1
EBP25 wiring loom (AMP Plug) 1
ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)

 EBP

MODEL

    EBP23 EBP25 EBP40 EBP40
  12 Volt 12 Volt 12 Volt 24 Volt
Operating voltage   6V to 18V DC 8V to 20V DC 6V to 15V DC 12V to 28V DC
Maximum current   1.25 Amps 2.1 Amps 4.6 Amps 2.5 Amps
Motor Type   Magnetic Drive Brushless Magnetic Drive Brushless Magnetic Drive Brushless Magnetic Drive Brushless
Max Flowrate



23 l/min

 6.1 gal/min

30 l/min

 7.9 gal/min

35 l/min

 9.2 gal/min

37 l/min

 9.8 gal/min
Rated Flowrate
@10 kPa



17.25 l/min

4.6 gal/min

27 l/min

 7.1 gal/min

33 l/min

8.7 gal/min

35.5 l/min

9.4 gal/min
Maximum Head Pressure



 0.25 Bar

 3.63 PSI

0.45 Bar

6.53 PSI

0.85 Bar

12.32 PSI

0.85 Bar

12.32 PSI
Maximum Head Height



2.5m

8ft 2.4in

4.5m

14ft 9.2in

8.5m

27ft 10.65in

8.5m

27ft 10.65in
Fluid Temperatures



 -40°c to 120°c

 -40°F to 248°F

 -40°c to 120°c

 -40°F to 248°F

 -40°c to 120°c

 -40°F to 248°F

 -40°c to 120°c

 -40°F to 248°F
Pump Weight



364 grams

0.8 lbs

650 grams

1.43 lbs

570 grams

1.25 lbs

570 grams

1.25 lbs
Body Material   Polyphenylene sulphide (PPS) & Nylon 66 Polyphenylene sulphide (PPS) Polyphenylene sulphide (PPS) & Nylon 66 Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure



250 kPa

36 Psi

251 kPa

37 Psi

252 kPa

38 Psi

252 kPa

38 Psi
Inlet & Outlet   Push on Barb Push on Barb

Push on Barb

Push on Barb

Hose Fitment

Standard



19mm

3/4"

19mm

3/4"

19mm

3/4"

19mm

3/4"

 Hose Fitment

with Step Adpater #19020



12mm to 16mm

1/2" to 5/8"

12mm to 16mm

1/2" to 5/8"

12mm to 16mm

1/2" to 5/8"

12mm to 16mm

1/2" to 5/8"
Application Motorbike Engine Size



up to 500cc

up to 30.5ci

500cc - 1000cc

30.5 ci - 61ci

1000cc - 2000cc

61 ci - 122ci

1000cc - 2000cc

61 ci - 122ci
ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)
Application Pump Model Pump Only Pump Kit
12 V 24 V 12 V
Motorbike up to 500cc (Standard) EBP®23 9051   9050
Motorbike 500cc - 1000cc (Standard) EBP®25 9025
Motorbike 1000cc - 2000cc (Standard) EBP®40 9040 9041
Vehicle Heater System (Standard) EBP®23 9051   9050
LPG (Butane) System (Standard) EBP®23 9051   9050

Intercooler

(Depending on capacity)

 EBP®23 9051   9050
EBP®25 9025
EBP®40 9040 9041
