Davies Craig

DC9050 - EBP23 - Electric Booster Pump Kit 12v

DC9050 - EBP23 - Electric Booster Pump Kit 12v

DC9050

1.146,00 DKK
1.146,00 DKK
Udsalg Udsolgt
Inklusiv moms. Levering beregnes ved betaling.
ELECTRIC BOOSTER PUMP (EBP®23)
Part #9050 (12V)

The EBP®23 is a ‘brushless’ 12 volt, high flow (23 litres / 6 gallons per minute), magnetically driven water pump. The EBP® motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP® applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.

The EBP®23 is designed to complement your existing Davies, Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, or improve your heater and/or cooling system or assist engine block cooling circulation. The EBP can continually circulate coolant around the engine head, block and by-pass. It has a high flow capacity and has the advantage of running at a speed independent of the engine speed. The EBP® can also be set to continue running with a timer or thermal switch (not supplied) after engine shut down to prevent damaging heat soak.

  Radiator cooling booster
  Car heater and LPG systems
  Turbo air / water intercoolers

EBP FLOW CURVES

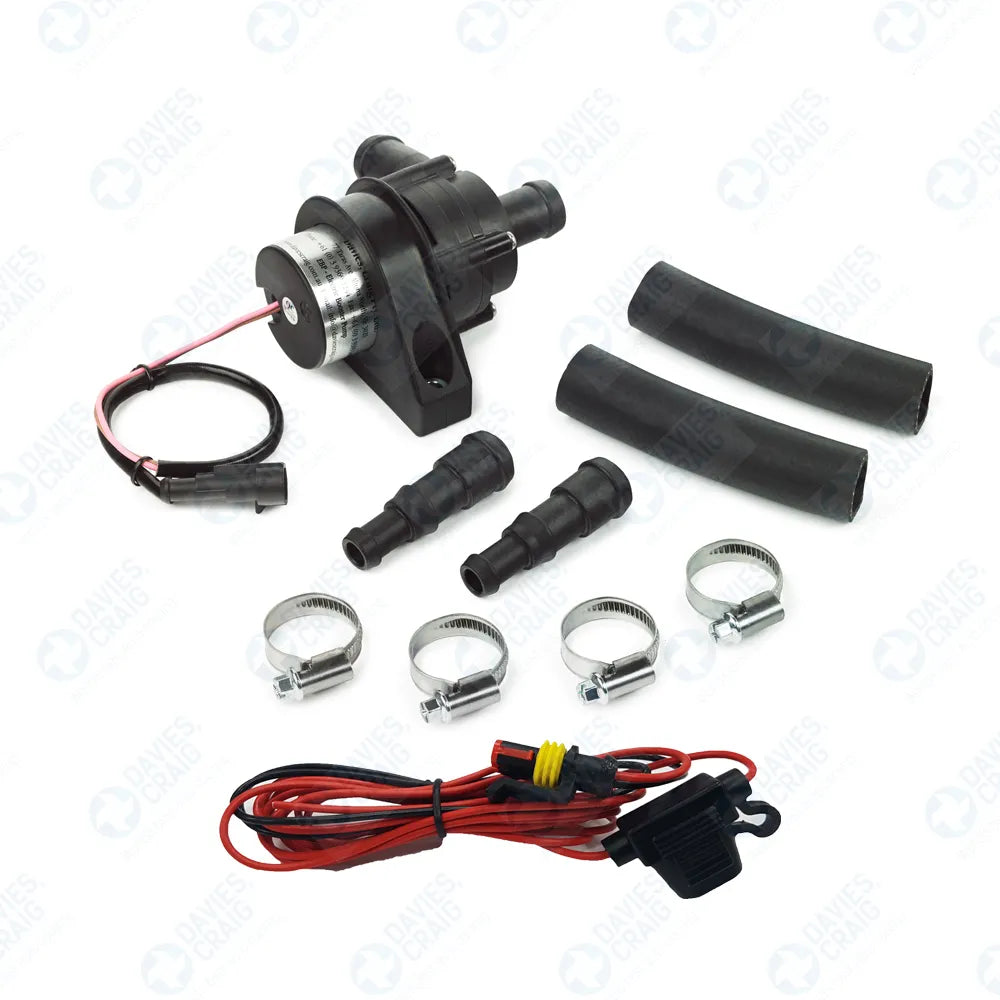

KIT CONTENTS

 KIT CONTENTS

 UNITS
Electric Booster Pump - EBP®23 1
EBP® Adapters Stepped (19mm to 12mm) 2
Heater Hose 19mm ID 11cm
Hose Clamps 4
Mounting Brackets  1
Wiring Loom (AMP Plug)
 1
Installation Instructions 1

ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)

 EBP

MODEL

    EBP23 EBP25 EBP40 EBP40
  12 Volt 12 Volt 12 Volt 24 Volt
Operating voltage   6V to 18V DC 8V to 20V DC 6V to 15V DC 12V to 28V DC
Maximum current   1.25 Amps 2.1 Amps 4.6 Amps 2.5 Amps
Motor Type   Magnetic Drive Brushless Magnetic Drive Brushless Magnetic Drive Brushless Magnetic Drive Brushless
Max Flowrate



23 l/min

 6.1 gal/min

30 l/min

 7.9 gal/min

35 l/min

 9.2 gal/min

37 l/min

 9.8 gal/min
Rated Flowrate
@10 kPa



17.25 l/min

4.6 gal/min

27 l/min

 7.1 gal/min

33 l/min

8.7 gal/min

35.5 l/min

9.4 gal/min
Maximum Head Pressure



 0.25 Bar

 3.63 PSI

0.45 Bar

6.53 PSI

0.85 Bar

12.32 PSI

0.85 Bar

12.32 PSI
Maximum Head Height



2.5m

8ft 2.4in

4.5m

14ft 9.2in

8.5m

27ft 10.65in

8.5m

27ft 10.65in
Fluid Temperatures



 -40°c to 120°c

 -40°F to 248°F

 -40°c to 120°c

 -40°F to 248°F

 -40°c to 120°c

 -40°F to 248°F

 -40°c to 120°c

 -40°F to 248°F
Pump Weight



364 grams

0.8 lbs

650 grams

1.43 lbs

570 grams

1.25 lbs

570 grams

1.25 lbs
Body Material   Polyphenylene sulphide (PPS) & Nylon 66 Polyphenylene sulphide (PPS) Polyphenylene sulphide (PPS) & Nylon 66 Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure



250 kPa

36 Psi

251 kPa

37 Psi

252 kPa

38 Psi

252 kPa

38 Psi
Inlet & Outlet   Push on Barb Push on Barb Push on Barb Push on Barb

Hose Fitment

Standard



19mm

3/4"

19mm

3/4"

19mm

3/4"

19mm

3/4"

 Hose Fitment

with Step Adpater #19020



12mm to 16mm

1/2" to 5/8"

12mm to 16mm

1/2" to 5/8"

12mm to 16mm

1/2" to 5/8"

12mm to 16mm

1/2" to 5/8"
Application Motorbike Engine Size



up to 500cc

up to 30.5ci

500cc - 1000cc

30.5 ci - 61ci

1000cc - 2000cc

61 ci - 122ci

1000cc - 2000cc

61 ci - 122ci
ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)
Application Pump Model Pump Only Pump Kit
12 V 24 V 12 V
Motorbike up to 500cc (Standard) EBP®23 9051   9050
Motorbike 500cc - 1000cc (Standard) EBP®25 9025
Motorbike 1000cc - 2000cc (Standard) EBP®40 9040 9041
Vehicle Heater System (Standard) EBP®23 9051   9050
LPG (Butane) System (Standard) EBP®23 9051   9050

Intercooler

(Depending on capacity)

 EBP®23 9051   9050
EBP®25 9025
EBP®40 9040 9041
APPLICATION OPTIONS & DIRECT FIT

The EBP23 can be used as a direct fit Aux cooling pump for the following vehicles:

  • AUDI A3 / A3 Sportback / TT: 1.8 & 2.0 TFSI (BYT, BZB, BWA, CCZA)
  • VW Golf V / VI / Variant: 1.8 TSI, 2.0 GTI (BWA, CAWB, CCZA, CCZB)
  • VW Beetle / Eos / Passat: 2.0 TSI / TFSI (CBFA, CCTA, CCZA, BPY, BWA, CAWB, CCZB)
  • VW Passat / Passat CC: 1.8 TSI / 2.0 TSI (BZB, CDAB, CGYA, CAWB, CCZA)
  • VW Scirocco / Sharan / Jetta: 2.0 TSI / TFSI (BWA, CCZA, CCZB)
