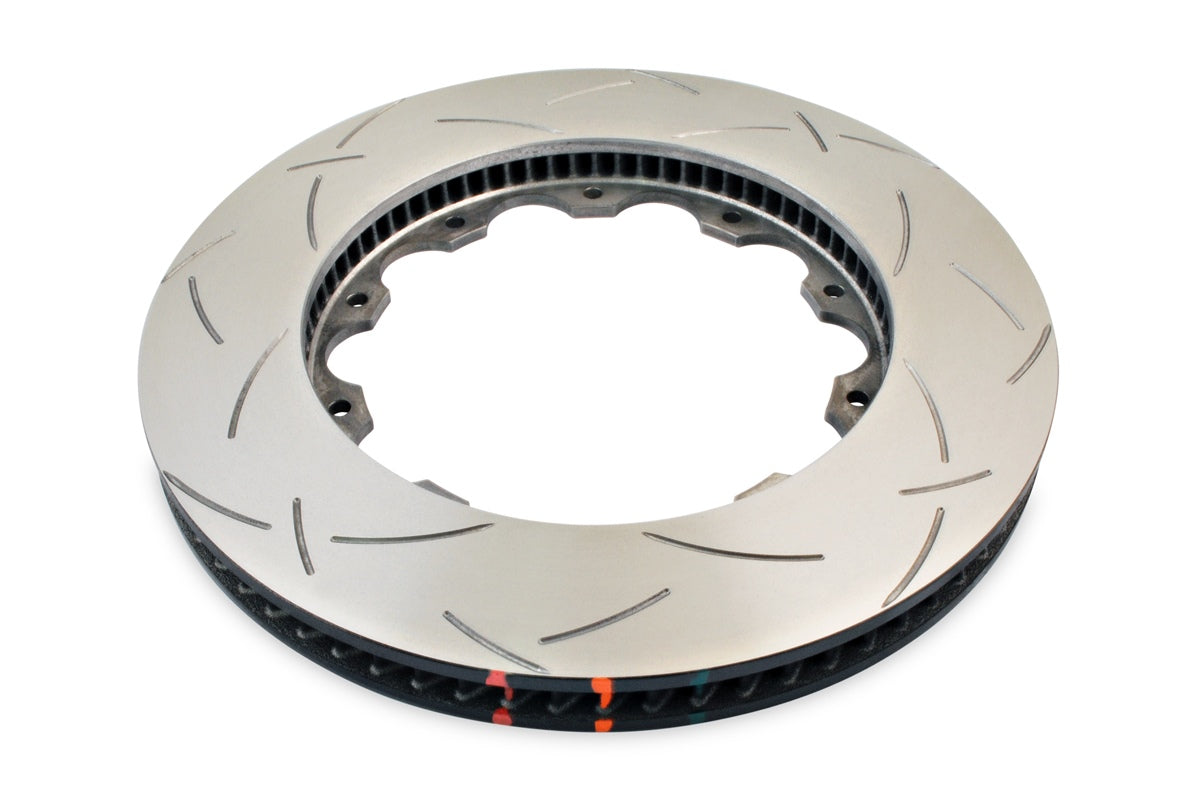

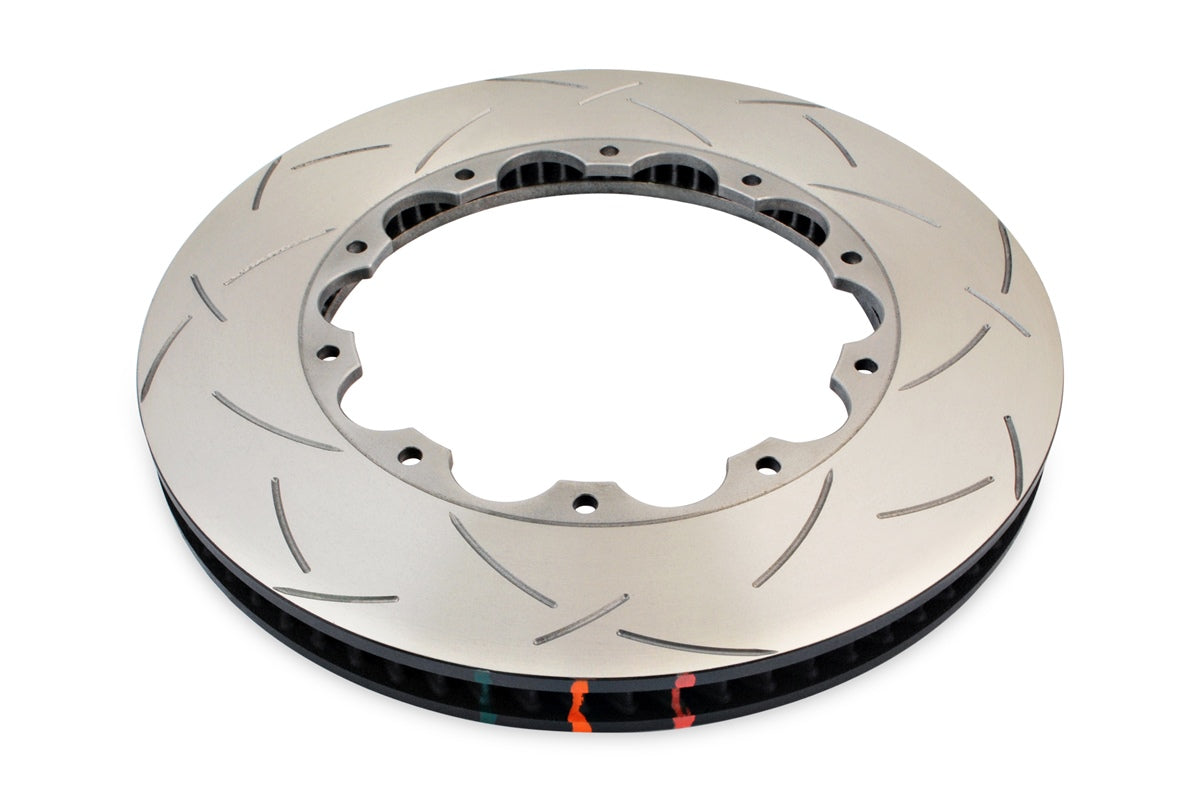

DBA52370.1RS 5000 series - T3 Slotted - Rotor Only Right Hand

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Passer til følgende biler

Front - NISSAN/GT-R (R35)/3.8 Twin Turbo 523BHP (2011-2012) , Brake Caliper: Brembo
Front - NISSAN/GT-R (R35)/3.8 Twin Turbo 542BHP (2012-2016) , Brake Caliper: Brembo
Front - NISSAN/GT-R (R35)/3.8 Twin Turbo 570BHP (2016-) , Brake Caliper: Brembo

Specifikationer

"Diameter [mm]: 390|\nThickness [mm]: 34|\nDisc Vent: 72 Curved Vanes|\nAnnulus [mm] (Maximum useable pad width): 68,1|\nPitch Circle Diameter (P.C.D.): 231,7|\nInside Diameter [mm]: 251|\nDiameter & Number of Bolt Holes [mm]: 9 (x10)|\nAir Gap [mm]: 17|\nOffset [mm]: -0,06|\nFlange Inside Diameter [mm]: 208|\nFlange Thickness [mm]: 7|\nHole Type: Round Hole|\nStage: Stage 5|\nTech Bulletins: Bedding in Brakes|\nTech Bulletins: How to clean a Disc Rotor before fitting|\nTech Bulletins: Motorsport - Important Info|\nReplacement Nuts: Included"
