ZF Sequential Dogbox (5-speed)
• Wide range of engine fitments: JZ, UZ, LS/LM V8, MB V8, M50, M60 etc.
• Built on the same gearset and shafts as the H-pattern Dogbox
• Sequential shifting for faster, more consistent gear changes

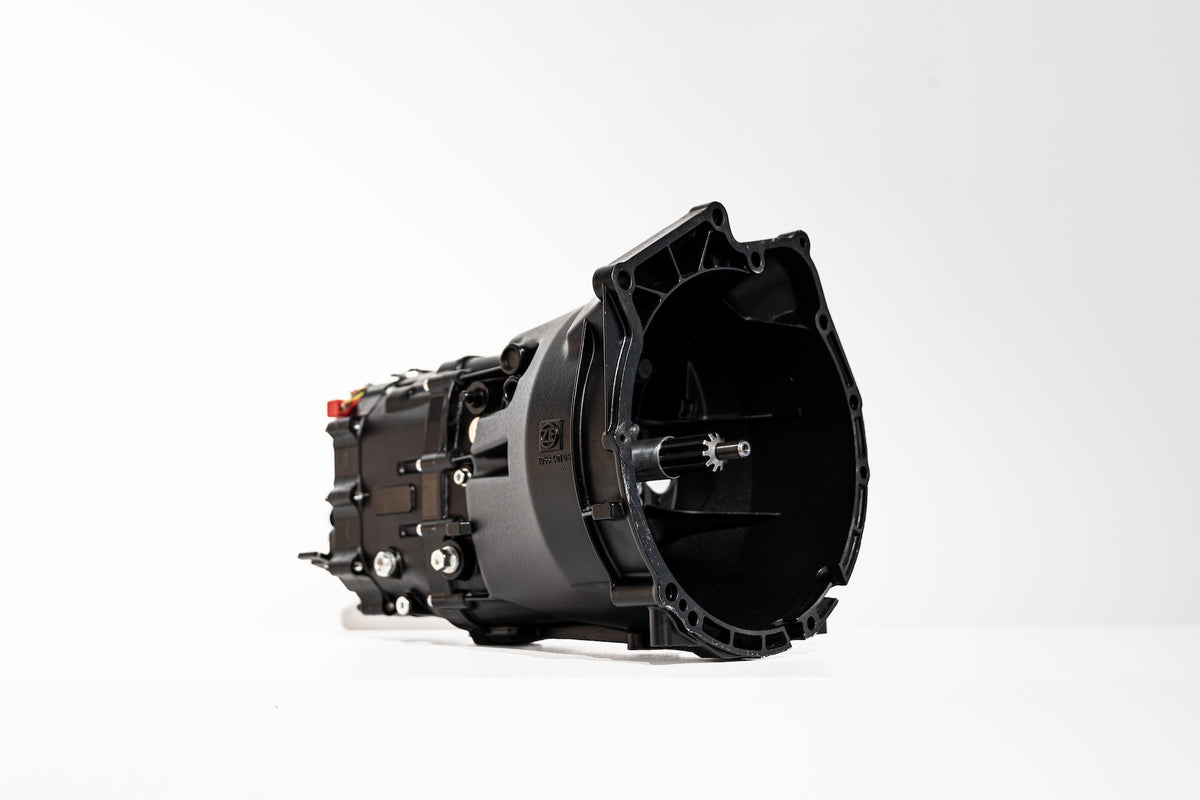

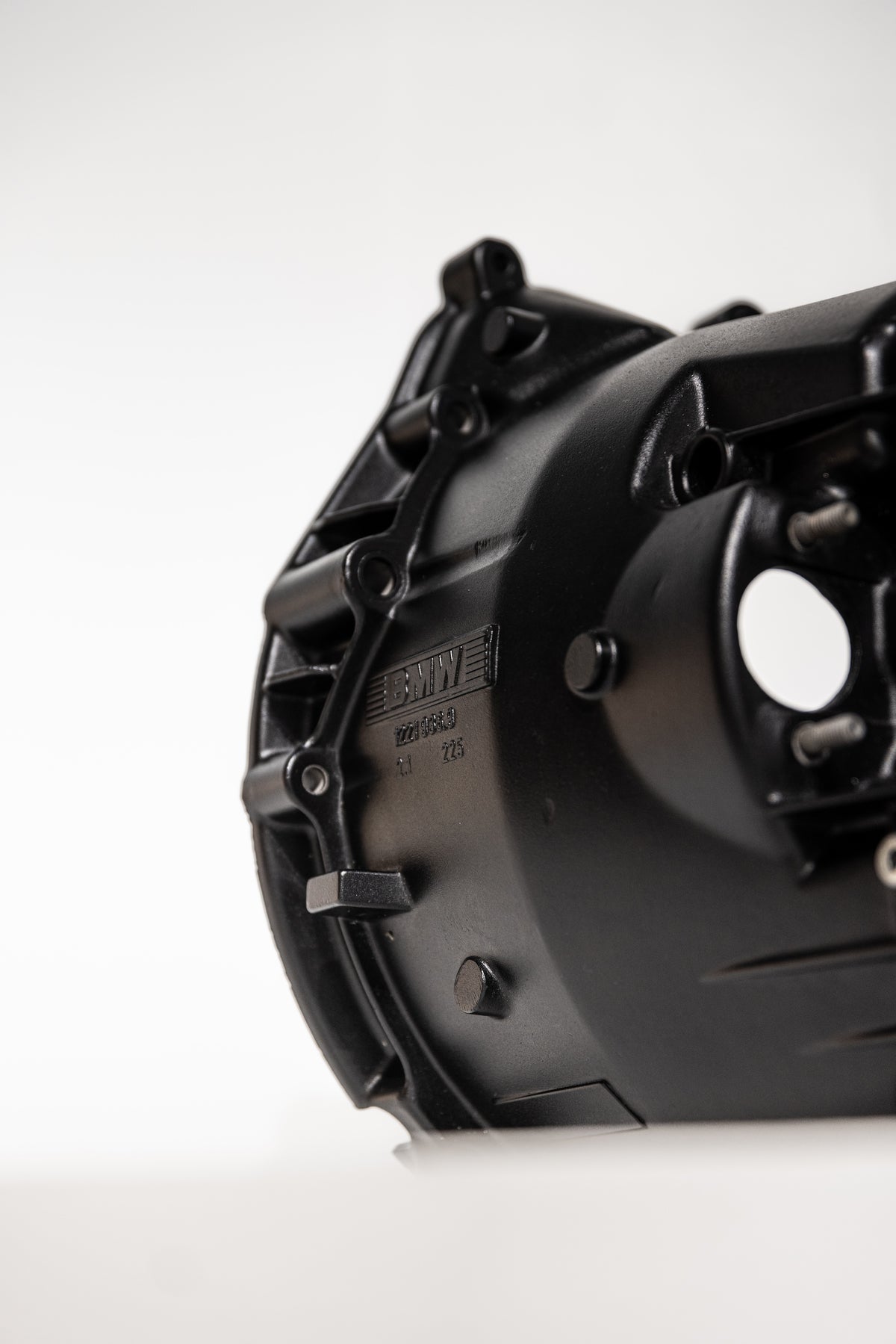

• Uses OEM ZF S5D bellhousing + GearMotive rear housing (OEM dimensions -> plug & play)

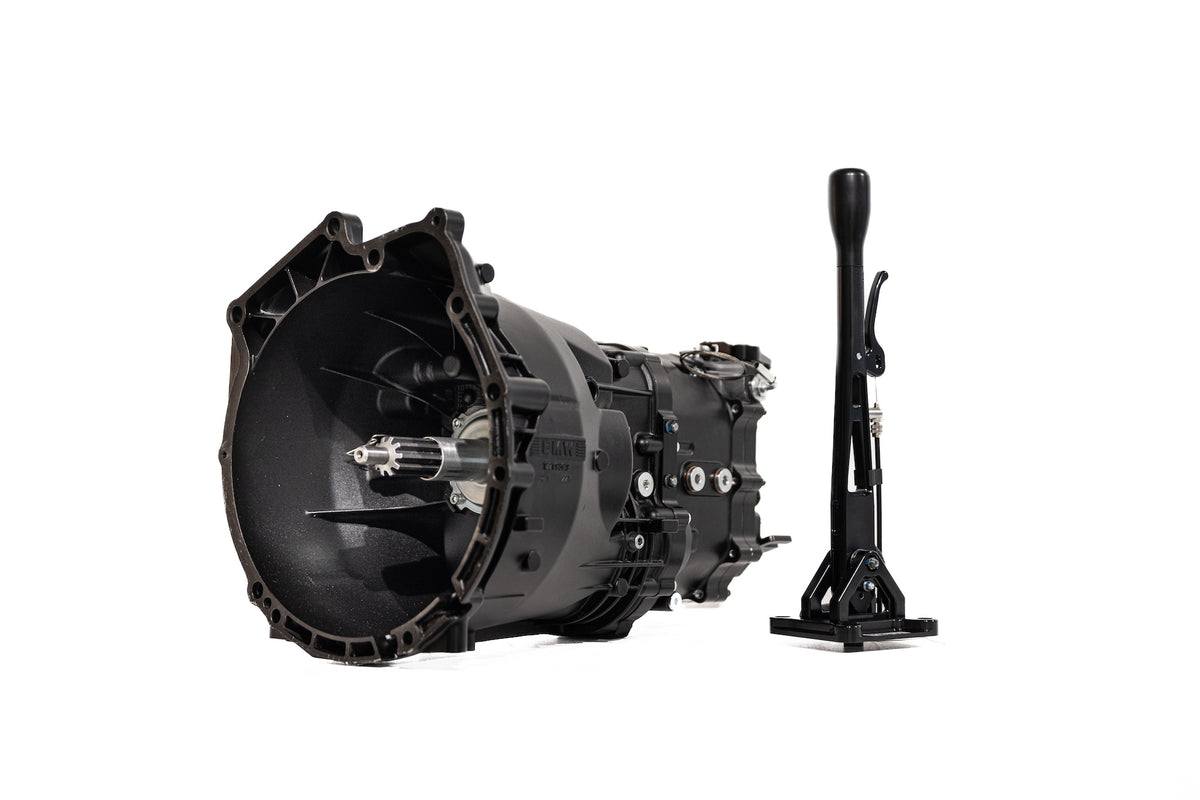

• Sequential shifter, fits OEM shift lever position, very easy installation
• Includes gear position sensor and optional LED display + ECM with shift-cut functions
• Same HD input shaft option as the H-pattern model
Gear Ratios (available for both models)
•1) Rally / Track (long 1st gear, smaller gear drop): 2.23 / 1.71 / 1.38 / 1.16 / 1.00
•2) Drift / Drag / Rallycross (longer 1st gear, bigger gear drop): 2.73 / 1.83 / 1.42 / 1.16 / 1.00
With GearMotive you can now choose between the robust H-pattern Dogbox or the new ZF Sequential Dogbox. Both deliver proven strength and reliability, while the Sequential option adds modern shifting technology and faster gear changes — without sacrificing the durability GearMotive gearsets are known for.
