Extreme Clutch

SKU:KBM20523-2E

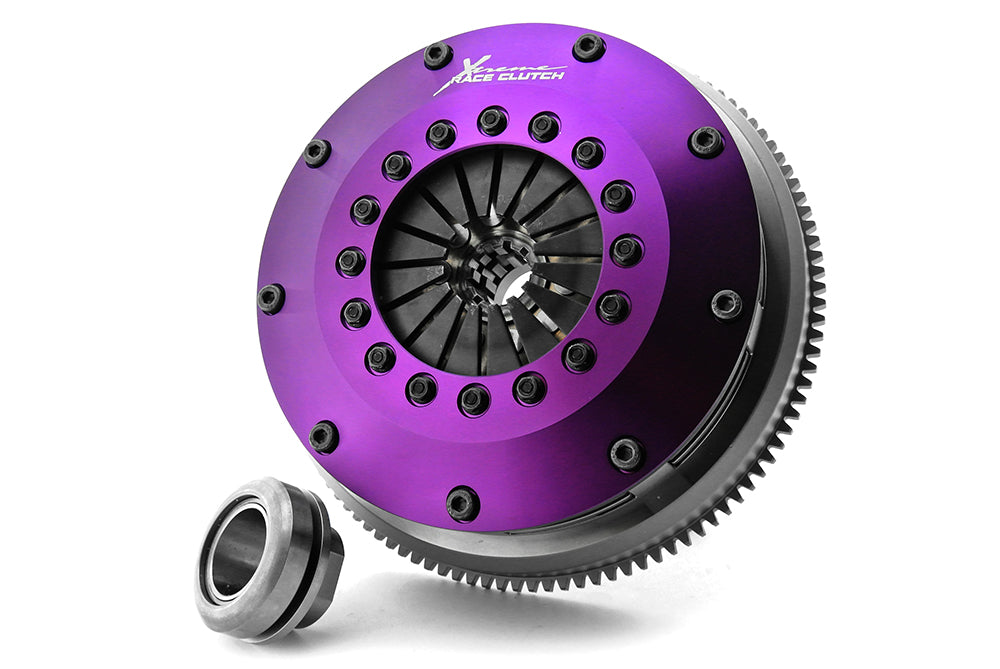

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - BMW/3-Series/M3 E46/2000-2006/3246cc | 252KW | 343HP | S54 B32 (326S4) (2000-2006) , \n - BMW/3-Series/M3 E46/2001-2006/3246cc | 252KW | 343HP | S54 B32 (326S4) (2001-2006) , \n - BMW/3-Series/M3 CSL E46/2003-2003/3246cc | 265KW | 360HP | S54 B32 (326S4) (2003-2003) ,
