Extreme Clutch

SKU:KBM20524-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

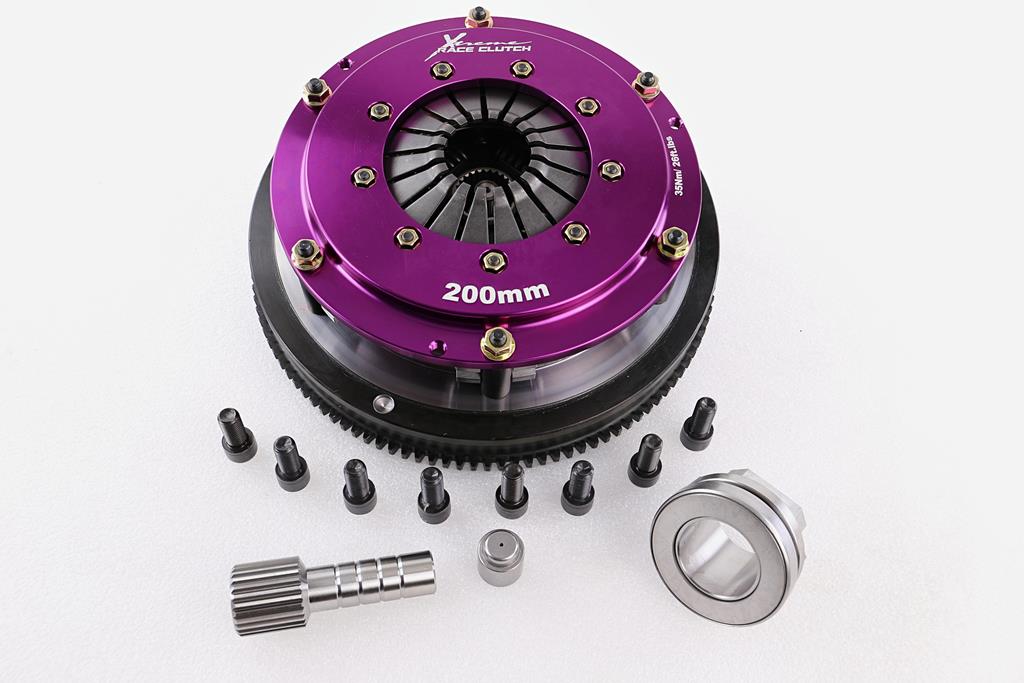

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Applications: - BMW/1-Series/135 i E82/2007-2013/2979cc | 225KW | 306HP | N54 B30 A (2007-2013) 6 Bolt Crank, Production date: from 01/2009\n - BMW/1-Series/135 i E82/2007-2013/2979cc | 240KW | 326HP | N54 B30 A (2007-2013) 6 Bolt Crank, Production date: from 01/2009\n - BMW/1-Series/135 i E88/2008-2013/2979cc | 225KW | 306HP | N54 B30 A (2008-2013) 6 Bolt Crank, Production date: from 01/2009\n - BMW/Z4/sDrive 35 i E89/2009-2016/2979cc | 225KW | 306HP | N54 B30 A (2009-2016) 6 Bolt Crank, Production date: from 01/2009
