Extreme Clutch

SKU:KBM20525-2E

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

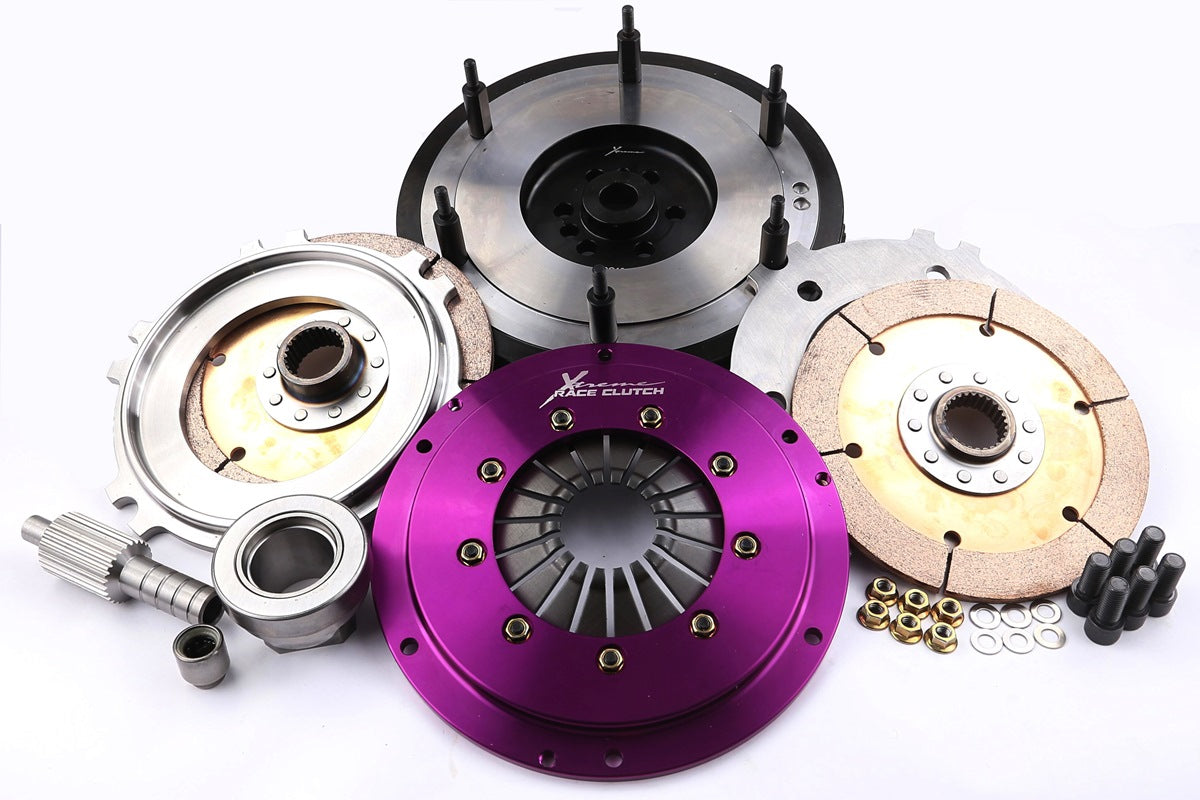

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

• Torque capacity 1200Nm
• Kit contains everything you need for a successful installation + accessories
• Rigid driven discs (individual hubs)
• Push type billet alloy cover
• 4140 Chromoly pressure & intermediate plates
• Hardened steel wear posts
• Low inertia
• Serviceable components
• SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7kg
Disc Set Static Mass	1.75kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Passer til følgende biler

Kontrollér model, motor og årgang før bestilling:

• BMW/1-Series/135 i E82/2007-2013/2979cc | 225KW | 306HP | N55 B30 A (2007-2013)
• BMW/1-Series/135 i E82/2007-2013/2979cc | 240KW | 326HP | N55 B30 A (2007-2013)
• BMW/1-Series/135 i E88/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
• BMW/1-Series/135 i E88/2008-2013/2979cc | 240KW | 326HP | N55 B30 A (2008-2013)
• BMW/1-Series/M E82/2011-2012/2979cc | 250KW | 340HP | N54 B30 A (2011-2012)
• BMW/3-Series/335 i F30, F80/2011-2015/2979cc | 225KW | 306HP | N55 B30 A (2011-2015)
• BMW/3-Series/335 i F31/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
• BMW/3-Series/335 i F34/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
• BMW/3-Series/335 i xDrive F30, F80/2012-2015/2979cc | 225KW | 306HP | N55 B30 A (2012-2015)
• BMW/3-Series/335 i xDrive F30, F80/2012-2013/2979cc | 240KW | 326HP | N55 B30 A (2012-2013)
• BMW/3-Series/335 i xDrive F30, F80/2013-2015/2979cc | 250KW | 340HP | N55 B30 A (2013-2015)
• BMW/3-Series/335 i xDrive F31/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
• BMW/4-Series/435 i F32, F82/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
• BMW/4-Series/435 i F32, F82/2013-2016/2979cc | 250KW | 340HP | N55 B30 A (2013-2016)
• BMW/4-Series/435 i F33, F83/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
• BMW/4-Series/435 i xDrive F32, F82/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
• BMW/5-Series/535 i F10/2010-2016/2979cc | 225KW | 306HP | N55 B30 A (2010-2016)
• BMW/5-Series/535 i F11/2010-2017/2979cc | 225KW | 306HP | N55 B30 A (2010-2017)

Applications: - BMW/1-Series/135 i E82/2007-2013/2979cc | 225KW | 306HP | N55 B30 A (2007-2013) , \n - BMW/1-Series/135 i E82/2007-2013/2979cc | 240KW | 326HP | N55 B30 A (2007-2013) , \n - BMW/1-Series/135 i E88/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013) , \n - BMW/1-Series/135 i E88/2008-2013/2979cc | 240KW | 326HP | N55 B30 A (2008-2013) , \n - BMW/1-Series/M E82/2011-2012/2979cc | 250KW | 340HP | N54 B30 A (2011-2012) , \n - BMW/3-Series/335 i F30, F80/2011-2015/2979cc | 225KW | 306HP | N55 B30 A (2011-2015) , \n - BMW/3-Series/335 i F31/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015) , \n - BMW/3-Series/335 i F34/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/3-Series/335 i xDrive F30, F80/2012-2015/2979cc | 225KW | 306HP | N55 B30 A (2012-2015) , \n - BMW/3-Series/335 i xDrive F30, F80/2012-2013/2979cc | 240KW | 326HP | N55 B30 A (2012-2013) , \n - BMW/3-Series/335 i xDrive F30, F80/2013-2015/2979cc | 250KW | 340HP | N55 B30 A (2013-2015) , \n - BMW/3-Series/335 i xDrive F31/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015) , \n - BMW/4-Series/435 i F32, F82/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/435 i F32, F82/2013-2016/2979cc | 250KW | 340HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/435 i F33, F83/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/435 i xDrive F32, F82/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/5-Series/535 i F10/2010-2016/2979cc | 225KW | 306HP | N55 B30 A (2010-2016) , \n - BMW/5-Series/535 i F11/2010-2017/2979cc | 225KW | 306HP | N55 B30 A (2010-2017) ,
